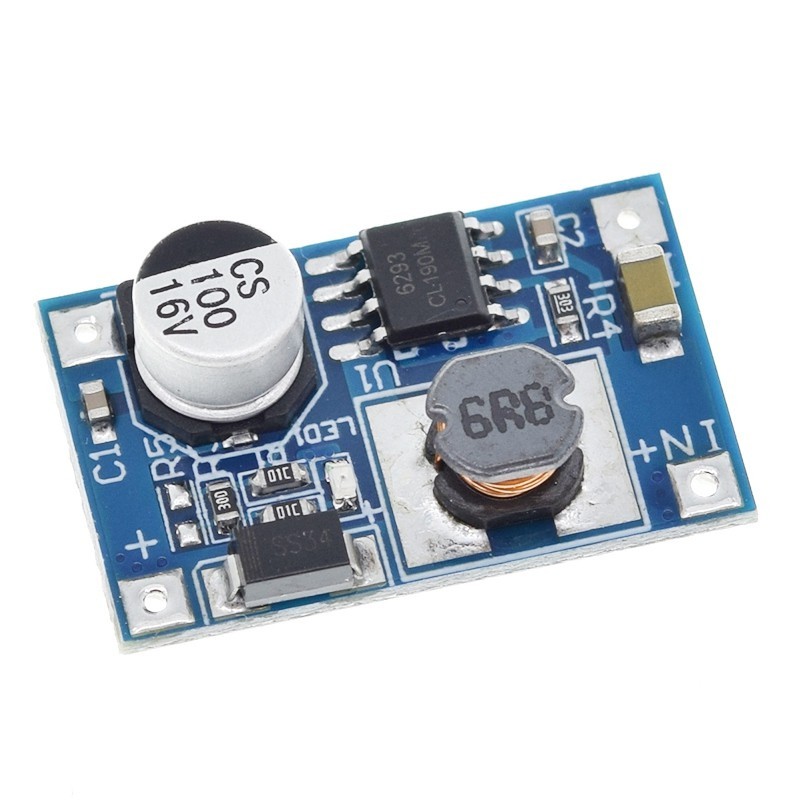

The 8W High-Power DC-DC Boost Converter Module (Input 3V–6V to 12V) is a compact and efficient step-up voltage regulator designed for low-voltage power applications. It converts input voltages from as low as 3V to a stable 12V output, delivering up to 8W of output power. Built with high-quality components imported from Taiwan, this module ensures reliable performance and long-term stability. Its onboard LED indicator provides real-time power status monitoring, making it perfect for use in portable systems powered by USB sources or 3.7V lithium batteries. With excellent conversion efficiency and a small 24mm × 15mm footprint, it is widely used in DIY projects, compact 12V-powered devices, and mobile electronics requiring stable voltage output. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
High Power Efficiency: Converts 3V–6V input into a stable 12V output with minimal loss.
Compact Form Factor: Small 24mm × 15mm design suitable for tight spaces.
Premium Components: Built using high-quality Taiwan-imported materials for durability.
LED Power Indicator: Provides visual confirmation of operation and power status.
Flexible Input Options: Supports 3.7V Li-ion batteries or 5V USB power sources.
Stable Output Performance: Ensures consistent 12V output for sensitive electronic devices.
Customizable Voltage Output: Output voltage can be customized for bulk or OEM orders.
Overcurrent Protection: Handles input current up to 3A safely.
High Output Power: Capable of driving 12V 0.8A devices (up to 8W).
Wide Application Range: Ideal for powering routers, cameras, fans, and Arduino projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Powering 12V devices such as routers, cameras, and LED lights using 5V USB input.
DIY electronics requiring 12V operation from low-voltage battery sources.
Portable power solutions using USB power banks or 3.7V lithium batteries.
Prototyping and testing circuits that need efficient DC-DC voltage boosting.
Educational projects demonstrating DC-DC conversion principles.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model Name | 8W High-Power DC-DC Booster Module |
| Input Voltage | 3V – 6V |
| Output Voltage | 12V (customizable for bulk orders) |
| Output Power | 8W (max) |
| Maximum Input Current | 3A |
| Minimum Starting Voltage | 2.5V |
| Efficiency | High (up to 90% typical) |
| LED Indicator | Yes |
| Dimensions | 24mm × 15mm |
| Applications | USB power banks, Li-ion batteries, portable 12V devices |
| Operating Temperature | -40°C to +85°C |
| Shipment Weight | 0.0033 kg |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x 8W High-Power DC-DC Boost Converter Module (Input 3V-6V to 12V)
