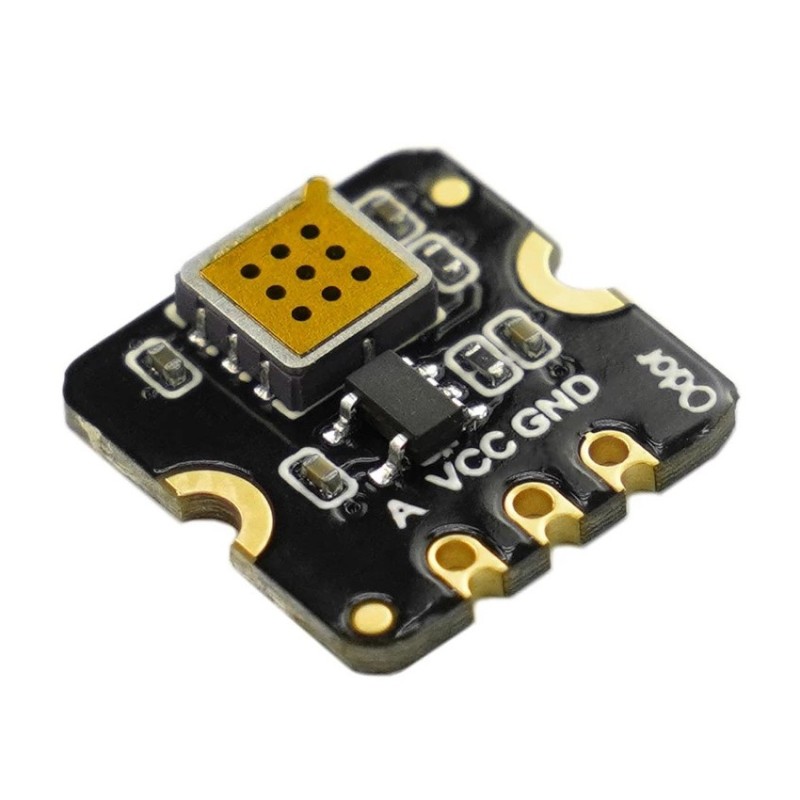

The Fermion MEMS Nitrogen Dioxide (NO₂) Gas Detection Sensor is a high-performance, low-power sensor designed using advanced microelectromechanical system (MEMS) technology. With its ultra-compact dimensions (13×13×2.5mm) and operating current under 20mA, it offers reliable and efficient detection of NO₂ gas in air. This qualitative sensor is ideal for automotive emission testing, air quality monitoring, and industrial safety systems where nitrogen dioxide exposure needs to be controlled. It delivers an analog voltage output for easy interfacing with microcontrollers like Arduino, ESP32, or Raspberry Pi. Designed for long-term stability, rapid response, and low heat generation, the Fermion NO₂ sensor provides an optimal balance between size, sensitivity, and efficiency for embedded or IoT-based applications. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Utilizes MEMS gas detection technology for compact and reliable performance.
Detects Nitrogen Dioxide (NO₂) qualitatively in real-time.
Low power consumption (<20mA) for portable or battery-powered use.
Fast response and recovery ensures accurate and immediate detection.
Analog voltage output simplifies integration with control circuits.
Operating voltage range: 3.3V to 5V.
Compact design (13×13×2.5mm) ideal for embedded applications.
Long service life of over 5 years under normal conditions.
Wide temperature and humidity tolerance for stable outdoor operation.
Compatible with DFRobot Edge Impulse electronic nose projects and IoT platforms.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Air quality monitoring to detect and analyze NO₂ concentration in the environment.
Automotive emission control to monitor NO₂ output from vehicles.
Industrial safety systems for toxic gas detection in factories or labs.
Environmental research and pollution analysis.
Smart IoT devices for city or indoor pollution monitoring.
AI-based odor and gas detection systems.
Educational projects using MEMS gas sensors and microcontrollers.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Sensor Type | MEMS Nitrogen Dioxide (NO₂) Gas Detection Sensor |
| Gas Detected | NO₂ |
| Detection Range | 0.1 – 10 ppm |
| Operating Voltage | 3.3V – 5V |
| Operating Current | < 20mA |
| Output Signal | Analog Voltage |
| Sensitivity | R₀(in air)/Rₛ(in 5ppm NO₂) ≤ 0.5 |
| Operating Temperature | -10°C – +50°C |
| Operating Humidity | 15% – 90% RH (non-condensing) |
| Response Time | Fast response and recovery |
| Warm-up Time | Short preheating time |
| Lifespan | ≥ 5 years (in air) |
| Dimensions | 13 × 13 × 2.5 mm |
| Country of Origin | China |
| Shipment Weight | 0.004 kg |
| Shipment Dimensions | 3 × 2 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
Package Includes:
1 x Fermion MEMS Nitrogen Dioxide NO2 Gas Detection Sensor
