Product Description:
The SGP30 Air Quality Sensor Module is a high-precision digital multi-pixel gas sensor designed to measure total volatile organic compounds (TVOC) and equivalent CO₂ (eCO₂) concentrations in the air. Built using Sensirion’s CMOSens® technology, the SGP30 offers superior long-term stability, low drift, and high sensitivity — ideal for applications like air purifiers, HVAC systems, and environmental monitoring devices.
This module integrates a fully calibrated sensing system in a compact enclosure, providing easy-to-use digital output through the I²C (IIC) communication interface. It can operate reliably under varying temperature and humidity conditions, making it suitable for indoor air quality monitoring, smart home devices, and IoT environmental sensing.
Key Features:
High-performance TVOC and eCO₂ measurement in a single sensor
Measurement range:
TVOC: 0 – 60,000 ppb
eCO₂: 400 – 60,000 ppm
Based on Sensirion’s advanced CMOSens® technology for long-term stability and accuracy
Built-in micro-heater and temperature compensation

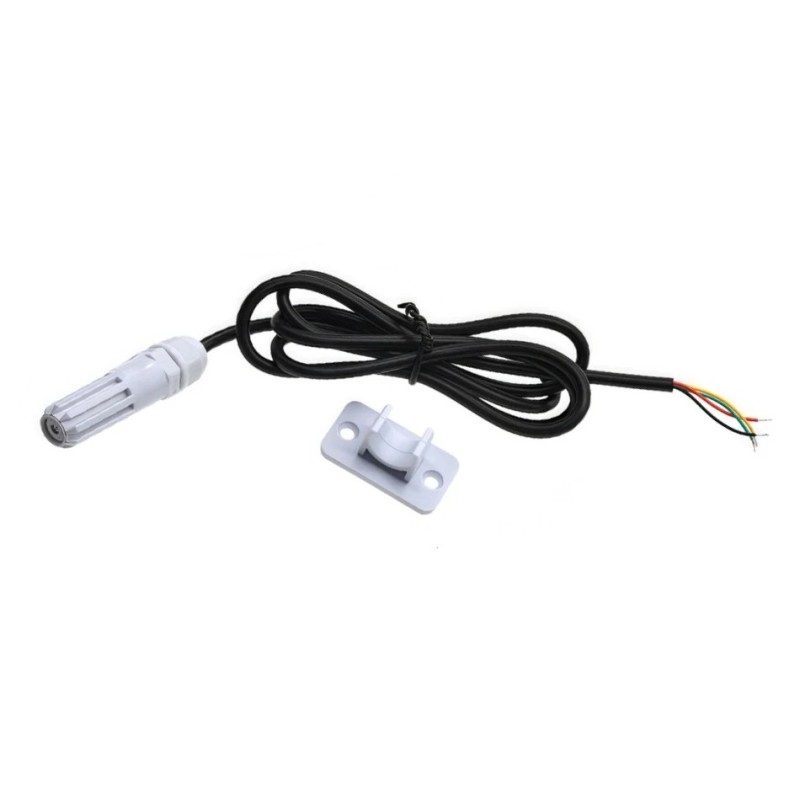

Compact and durable probe-style housing for reliable installation
I²C digital interface, compatible with Arduino, ESP32, STM32, and Raspberry Pi
Supports 3.3V–5V power supply
Built-in 10kΩ pull-up resistors for I²C lines
Excellent long-term repeatability and low power consumption
Ideal for smart appliances, air purifiers, environmental testers, and IoT devices
Technical Specifications:
| Parameter | SGP30 |
|---|
| Supply Voltage | 3V – 5V DC |
| Interface | I²C (IIC Signal) |
| Sampling Rate | 1 Hz |
| TVOC Range | 0 – 60,000 ppb |
| eCO₂ Range | 400 – 60,000 ppm |
| Operating Humidity | 0% – 90% RH |
| Operating Temperature | 5°C – 30°C |
| Dimensions | Compact probe module |
| Output | Digital I²C signal |
Pin Definition:
Red – VCC: Power Supply (3–5V)
Black – GND: Ground
Yellow – SCL: I²C Clock Line
Green – SDA: I²C Data Line
(Note: Internal 10kΩ pull-up resistors are included on SCL/SDA lines.)
Applications:
Air Quality Monitoring Devices
Smart Home and HVAC Systems
Environmental and IoT Sensors
Air Purifiers and Dehumidifiers
Industrial and Automotive Air Quality Systems
Research and Educational Projects
Package Includes:
Why Choose This Module?
The SGP30 Air Quality Sensor combines precision sensing with robust CMOSens® technology, enabling accurate detection of TVOC and eCO₂ levels. With its compact design, I²C interface, and stable long-term performance, it’s an excellent choice for next-generation indoor air quality and IoT environmental monitoring projects.
Monitor your air with precision — use the SGP30 sensor module for accurate, real-time air quality insights.
