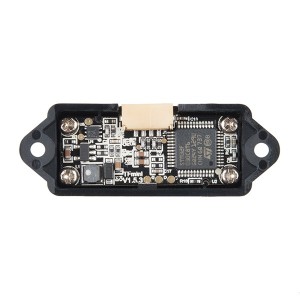

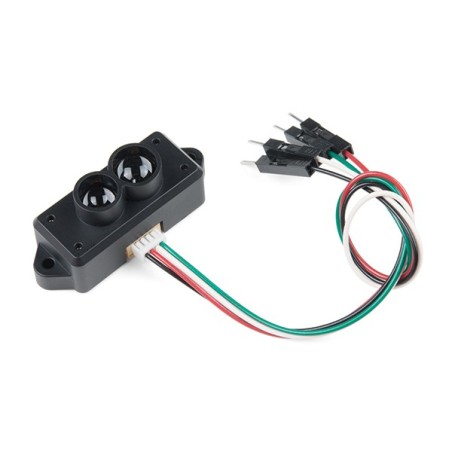

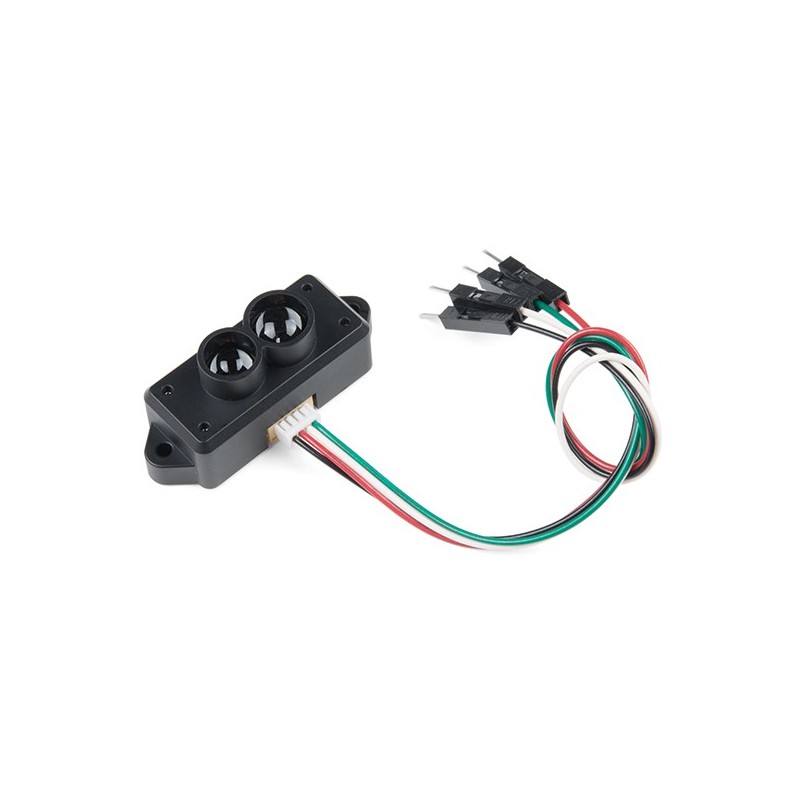

    TFMini S - Micro LiDAR Module

    RBD-1201

    • Measurement range: 12 m.
    • Operating Voltage: 5V.
    • Power : 0.12w.
    • Weight: 6 gm.
    • Compatible with Pixhawk Controller.
    • Frequency: 100Hz
    BDT 8,990
    BDT 8,990 BDT 8,990 BDT 8,990 BDT 8,990
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 8,990 Tax excluded
    BDT 8,990 Tax included
    BDT 0 Tax
    BDT 8,990 Tax excluded
    BDT 0 Tax
    BDT 8,990 Tax included
    Quantity
    In-Stock
    7 Items

    21 people have purchased this item
    2 people recently added this item to the cart
    7 items in stock
    Description

    The TFMini micro LiDAR distance sensor for drones UAV UAS robots (12m) Laser Range Finder sensor has its unique optical, structural, and electronic designs, the product possesses 3 major advantages, low cost, tiny volume and low power consumption. It has built-in algorithm adapted to indoor and outdoor environments can guarantee an excellent ranging performance at a low cost and in a tiny volume, which highly expands the application fields and scenarios of LiDAR and lays a solid foundation for future “eyes” in the smart era. RoboticsBD

    TF Mini is a single-point micro ranging module and could be widely used in the integrated application of various drones, UAVs, Robots and industrial types of equipment. Main Characteristics of TFMini micro LiDAR distance sensor for drones UAV UAS robots (12m) are, this product is based on TOF (Time of Flight) principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. Small size
    2. Lightweight
    3. Low power consumption
    4. High frame rate(up to 1000Hz)

    Applications:

    1. Unidirectional ranging LiDAR.
    2. Obstacle avoidance.
    3. Assisted landing.
    4. Terrain following.
    5. Robots outdoor obstacle avoidance.
    6. Intelligent parking. Crane operations.
    7. Vehicle position sensing.
    8. Vehicle detection for barrier gate control.
    9. High-precision & High-speed measurement.
    10. Eye-safe infrared LED light.
    11. Compact size, lightweight.
    12. Good performance for height fixing and terrain-following drones.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    Operating Range0.1m~12m@90%Reflectivity
    Accuracy±6cm@（0.1-6m)
    ±1%@（6m-12m）
    Distance Resolution(cm)1
    Frame Rate(Hz)100
    Ambient light immunity70Klux
    Operating Temperature(℃)0℃~60℃
    FOV2°
    Supply Voltage(V)5V±0.1V
    Average current(mA)≤140mA
    Power Consumption(W)≤0.7W
    Peak current(mA)200
    Communication InterfaceUART / I2C
    Cable Length(cm)10
    Dimension in mm(L*W*H)42*15*16
    Weight(g)5g±0.3g
    Shipment Weight0.03 kg
    Shipment Dimensions5 × 2 × 2 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    1. Product Manual of TFmini-S
    2. TFmini Infrared Module Specification

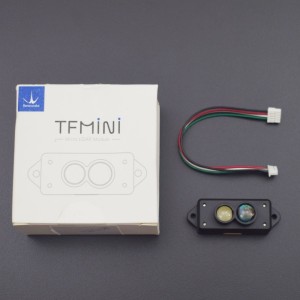

    Package Includes:

    1 x TFMini-S Micro LiDAR Distance Sensor

    1 x Cable

    1 x QC card.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-1201
    7 Items

    Specific References

    EAN13
    1201
    Comments (0)
    Grade
    No customer reviews for the moment.
    16 other products in the same category:
    Optical Infrared Reflective Sensor Module Robotics Bangladesh Optical Infrared Reflective Sensor Module Robotics Bangladesh

    Reference: RBD-2763

    Optical Infrared Reflective Sensor Module

    (0)
    Optical infrared reflective sensor for line tracking and object detection Uses IR LED + receiver pair with onboard LM393 comparator Adjustable sensitivity via 10K potentiometer Detection range: up to ~1" at 5V, ~0.6" at 3.3V Output logic: HIGH normally, LOW when reflective surface detected Operates on 3.0V – 5V, with onboard detection LED indicator
    BDT 150
    BDT 150 tax incl.
    BDT 150 tax excl.
    BDT 150 tax excl.
    BDT 150 tax incl.
    BDT 150 tax incl.
    BDT 0 Tax
    BDT 150 tax excl.
    BDT 150 tax excl.
    BDT 0 Tax
    BDT 150 tax incl.
    More Optical Infrared Reflective Sensor Module
    In-Stock
    In stock: 181
    MQ-2 Flammable Gas & Smoke Sensor Robotics Bangladesh

    Reference: RBD-0671

    MQ-2 Flammable Gas & Smoke Sensor

    (0)
    Operating Voltage:+5V Preheat Duration:20 s Analog Output Voltage:0 to 5 V Dimension:36x20x21 mm. RoboticsBD
    BDT 140
    BDT 140 tax incl.
    BDT 140 tax excl.
    BDT 140 tax excl.
    BDT 140 tax incl.
    BDT 140 tax incl.
    BDT 0 Tax
    BDT 140 tax excl.
    BDT 140 tax excl.
    BDT 0 Tax
    BDT 140 tax incl.
    More MQ-2 Flammable Gas & Smoke Sensor
    In-Stock
    In stock: 37
    YFS301 7-24V Water Flow Sensor Flowmeter 0.

    Reference: RBD-2979

    YFS301 7-24V Water Flow Sensor Flowmeter 0.3-10L/Min

    (0)
    YFS301 water flow sensor with 0.3–10L/min measurement range Wide voltage support (7–24V DC) with Hall effect pulse output 9.5mm inlet/outlet diameter for versatile fluid applications Sealed Hall sensor keeps electronics dry and protected Durable stainless-steel shaft & sealing ring for leak-proof performance Suitable for water heaters, purifiers,...
    BDT 630
    BDT 630 tax incl.
    BDT 630 tax excl.
    BDT 630 tax excl.
    BDT 630 tax incl.
    BDT 630 tax incl.
    BDT 0 Tax
    BDT 630 tax excl.
    BDT 630 tax excl.
    BDT 0 Tax
    BDT 630 tax incl.
    More YFS301 7-24V Water Flow Sensor Flowmeter 0.3-10L/Min
    In-Stock
    In stock: 14
    RTD PT-100 Temperature Sensor 100mm Probe 0‑400℃ Robotics Bangladesh

    Reference: RBD-0493

    RTD PT-100 Temperature Sensor 100mm Probe -50‑400℃

    (0)
    Temperature Range : 0C-400C Shield Material : Metal Total Length(Approx.) : 2M / 6.6 Ft; Weight : 46g;
    BDT 990
    BDT 990 tax incl.
    BDT 990 tax excl.
    BDT 990 tax excl.
    BDT 990 tax incl.
    BDT 990 tax incl.
    BDT 0 Tax
    BDT 990 tax excl.
    BDT 990 tax excl.
    BDT 0 Tax
    BDT 990 tax incl.
    More RTD PT-100 Temperature Sensor 100mm Probe -50‑400℃
    In-Stock
    In stock: 21
    YL-69 Soil Hygrometer Humidity & Soil Moisture Detection Sensor Robotics Bangladesh YL-69 Soil Hygrometer Humidity & Soil Moisture Detection Sensor Robotics Bangladesh

    Reference: RBD-0145

    YL-69 Soil Hygrometer Humidity & Soil Moisture Detection Sensor

    (0)
    Dual output mode, analog output more accurate A fixed bolt hole for easy installation With power indicator (red) and digital switching output indicator (green) Having LM393 comparator chip, stable. Operating Voltage: 3.3V~5V
    BDT 70
    BDT 70 tax incl.
    BDT 70 tax excl.
    BDT 70 tax excl.
    BDT 70 tax incl.
    BDT 70 tax incl.
    BDT 0 Tax
    BDT 70 tax excl.
    BDT 70 tax excl.
    BDT 0 Tax
    BDT 70 tax incl.
    More YL-69 Soil Hygrometer Humidity & Soil Moisture Detection Sensor
    In-Stock
    In stock: 349
    EMG Muscle Sensor With Cable And Electrodes Controller Detects Muscle Activity Robotics Bangladesh

    Reference: RBD-2214

    EMG Muscle Sensor With Cable And Electrodes Controller Detects Muscle Activity

    (0)
    EMG muscle sensor V3.0 with cable and electrodes Measures the electrical activity of muscles High signal quality for accurate and reliable measurement Adjustable gain and filtering for signal conditioning Compatible with various types of microcontrollers and data acquisition systems Comes with reusable electrodes and a 3.5mm jack cable for easy connection
    BDT 2,550
    BDT 2,550 tax incl.
    BDT 2,550 tax excl.
    BDT 2,550 tax excl.
    BDT 2,550 tax incl.
    BDT 2,550 tax incl.
    BDT 0 Tax
    BDT 2,550 tax excl.
    BDT 2,550 tax excl.
    BDT 0 Tax
    BDT 2,550 tax incl.
    More EMG Muscle Sensor With Cable And Electrodes Controller Detects Muscle Activity
    In-Stock
    In stock: 17
    Raspberry Pi NoIR Camera V2 8MP Robotics Bangladesh

    Reference: RBD-0722

    Brand: Raspberry Pi Official

    Raspberry Pi NoIR Camera V2 8MP

    (0)
    8-Megapixel native resolution high-quality Sony IMX219 image sensor Cameras are capable of 3280 x 2464 pixel static images Capture video at 1080p30, 720p60 and 640x480p90 resolutions All software is supported within the latest version of Raspbian Operating System No Infrared filter making it perfect for taking Infrared photographs or photographing objects...
    BDT 3,999
    BDT 3,999 tax incl.
    BDT 3,999 tax excl.
    BDT 3,999 tax excl.
    BDT 3,999 tax incl.
    BDT 3,999 tax incl.
    BDT 0 Tax
    BDT 3,999 tax excl.
    BDT 3,999 tax excl.
    BDT 0 Tax
    BDT 3,999 tax incl.
    More Raspberry Pi NoIR Camera V2 8MP
    In-Stock
    In stock: 4

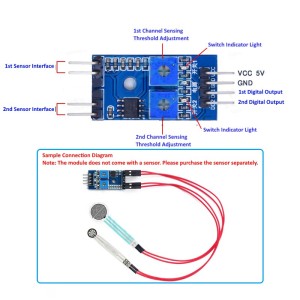

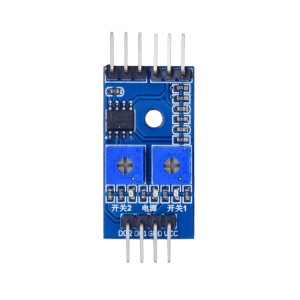

    Dual Voltage Comparator Analog to Digital Module for Force Sensor Robotics Bangladesh Dual Voltage Comparator Analog to Digital Module for Force Sensor Robotics Bangladesh
