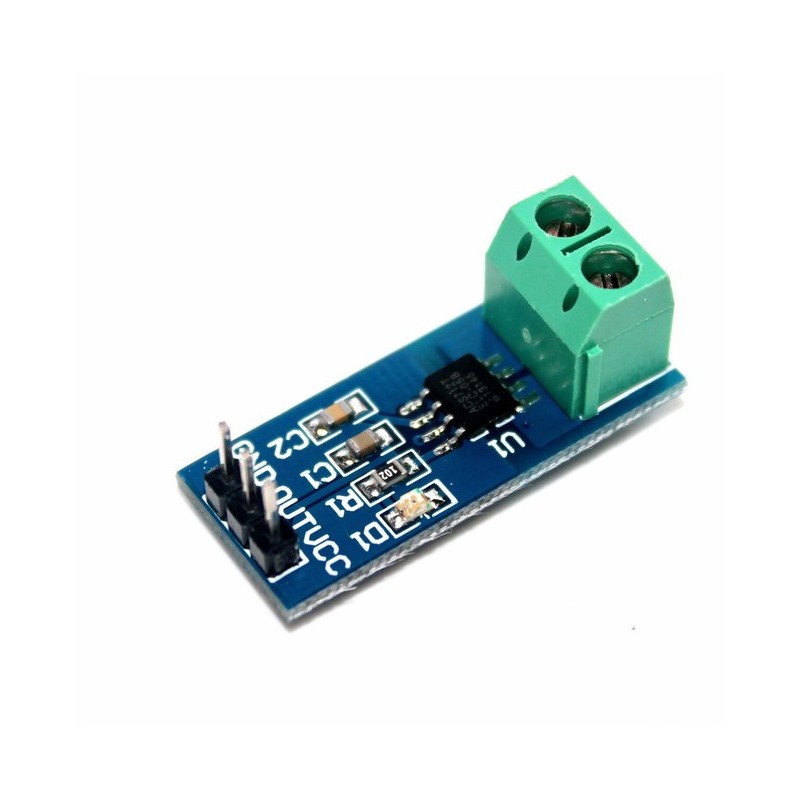

Current Sensor ACS712-30A

Reference RBD-0555

Low-noise analog signal path
Device bandwidth is set via the new FILTER pin
5 µs output rise time in response to step input current
Small footprint, low-profile SOIC8 package
2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
Supply Voltage: 4.5V~5.5V DC
Measure Current Range: 30A
Sensitivity: 100mV/A

Description
Product Details

Description

The 30A range Current Sensor Module ACS712 consists of a precise, low-offset, linear Hall Circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.

Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc. RoboticsBD

This AC721 current module is based on the ACS712 sensor, which can accurately detect AC or DC current. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

The maximum AC or DC that can be detected can reach 30A, and the present current signal can be read via analog I / O port of Arduino. RoboticsBD

Note: The color of the product may vary. while shipping you may get any one of them.

Connection Diagram:

Features :

Low-noise analog signal path
Device bandwidth is set via the new FILTER pin
5 µs output rise time in response to step input current
Small footprint, low-profile SOIC8 package
2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
5.0 V, single supply operation
66 to 185 mV/A output sensitivity
Output voltage proportional to AC or DC currents
Factory-trimmed for accuracy
Extremely stable output offset voltage
Nearly zero magnetic hysteresis
The ratiometric output from the supply voltage. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Current sensor chip	ACS712
Operating Voltage (V)	4.5 ~ 5.5V DC
Measure Current Range	-30 ~ +30 A
Sensitivity	100mV/A
Length (mm)	31
Width (mm)	13
Height (mm)	13.5
Weight (gm)	5
Shipment Weight	0.01 kg
Shipment Dimensions	4 × 2 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes :

1 x Current Sensor ACS712-30A .
