    SLAMTEC RPLiDAR A1M8 360 Degree Laser Range Finder 12m Lidar Sensor

    RBD-1205

    • Distance Range (Radius): 0.15m to 6m, white objects (Diameter Range – 12m)
    • Angular Range: 0 ~ 360º
    • Distance Resolution: < 0.5mm
    • Angular Resolution: <= 1 º
    • Sample Duration: 0.5 ms
    • Sample Frequency: >=8000 Hz
    • Scan Rate: 1 ~ 10Hz, Typical 5.5Hz


      Note: The range of this RPLiDAR is 6-meter if we are considering radius and 12-meter if we are considering diameter. So we can also name as RPLiDAR A1M8 360 Degree Laser Range Finder – 12M.
    BDT 16,750
    BDT 16,750 BDT 16,750 BDT 16,750 BDT 16,750
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 16,750 Tax excluded
    BDT 16,750 Tax included
    BDT 0 Tax
    BDT 16,750 Tax excluded
    BDT 0 Tax
    BDT 16,750 Tax included
    Quantity
    In-Stock
    7 Items

    27 people have purchased this item
    2 people recently added this item to the cart
    7 items in stock
    Description

    RPLiDAR A1M8 360 Degree Laser Range Finder – 6m (Radius Range) is a low-cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform a 360-degree scan within a 6-meter range. The produced 2D point cloud data can be used in mapping, localization, and object/environment modeling. RoboticsBD

    RPLIDAR A1’s scanning frequency reached 5.5 Hz when sampling 360 points each round. And it can be configured up to 10 Hz maximum. RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellently in all kinds of indoor and outdoor environments without sunlight. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Application:

    1. Home service /cleaning robot navigation and localization.
    2. General robot navigation and localization.
    3. Smart toy localization and obstacle avoidance.
    4. Environment scanning and 3D re-modeling.
    5. General simultaneous localization and mapping

    RPLIDAR A1 is a low cost 360 degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform 360degree scan within 6meter range. The produced 2D point cloud data can be used in mapping, localization and object/environment modeling. RPLIDAR A1’s scanning frequency reached 5.5 hz when sampling 360 points each round. And it can be configured up to 10 hz maximum. RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellent in all kinds of indoor environment and outdoor environment without sunlight. Features: Measures distance data in more than 8000 times/s 360 Degree Omnidirectional Laser Range Scanning 8000 times sample rate, the highest in the current economical LIDAR industry OPTMAG Original Design, prolong the life-span Configurable Scan Rate from 2-10Hz Ideal for Robot Navigation and Localization Plug and Play RoboticsBD

    FSD-05

    Features:

    1. Measuring distance: Up to 6 meters (Radius).

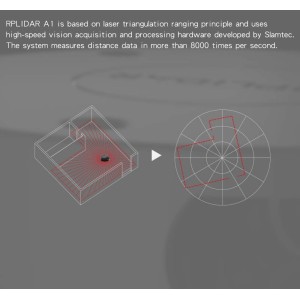

    2. Measures distance data in more than 8000 times/s.

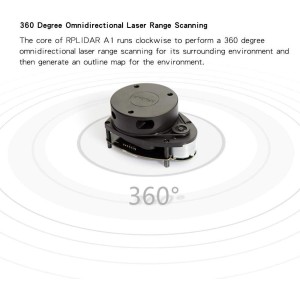

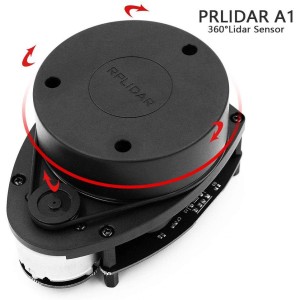

    3. 360 Degree Omnidirectional Laser Range Scanning.

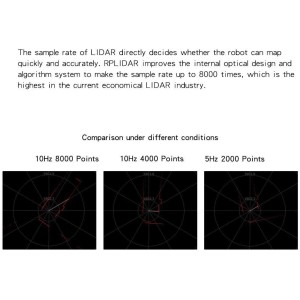

    4. 8000 times sample rate, the highest in the current economical LIDAR industry.
    5. OPTMAG Original Design, prolong the lifespan.
    6. Configurable Scan Rate from 2-10Hz.
    7. Ideal for Robot Navigation and Localization.
    8. Plug and Play.

    11111123478



    10_11e14__15_169

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    ModelRP LIDAR A1M8
    Distance range0.2 – 6m (Radius)
    0.2 – 12m (Diameter)
    Angular range0-360°
    Distance resolution<0.5mm (1% of the distance)
    Angular resolution(=<1°)
    Sample duration0.125 Mili Seconds
    Sample frequency>=8000 Hz
    StandoffsM2.5 x 15mm
    Scan rate5.5Hz
    Length (mm)60
    Width (mm)70
    Height (mm)99
    Weight (gm)170
    Shipment Weight0.2 kg
    Shipment Dimensions8 × 9 × 8 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    1. SLAMTEC A1M8 Rplidar A1 Low Cost 360 Degree Laser Range Scanner User Manual
    2. Datasheet
    3. Slamtec Rplidar A1
    4. Arduino Interfacing
    5. Github Backup

    Package Includes:

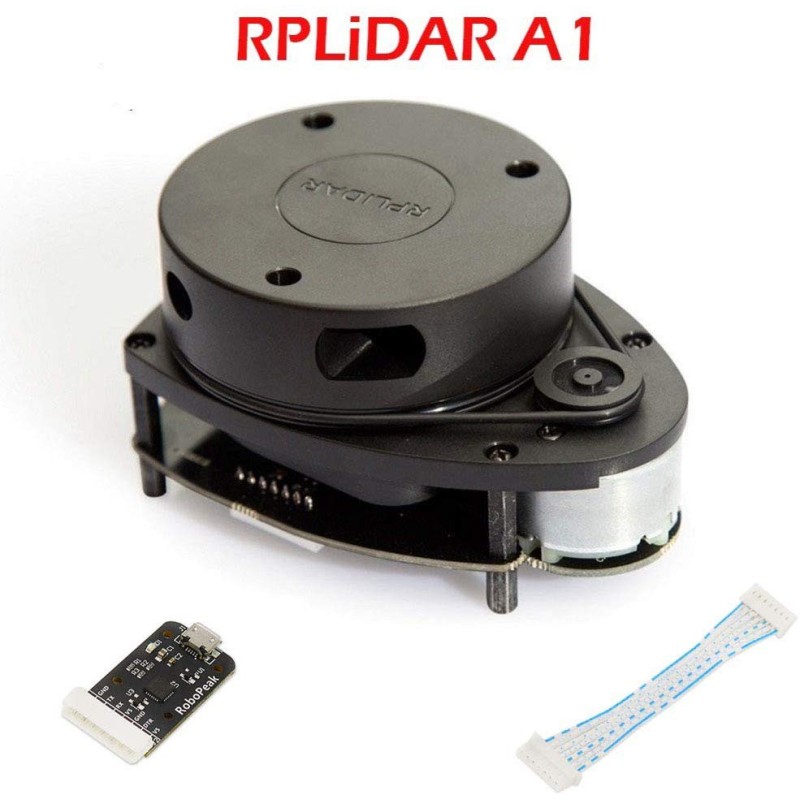

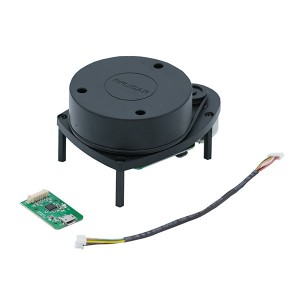

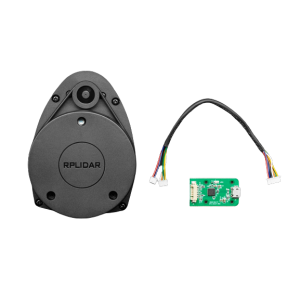

    1 x RP LIDAR A1M8 360 Degrees Laser Range Finder.

    1 x Interfacing Controller and Connecting Cable.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-1205
    7 Items

    Specific References

    EAN13
    1205
    Comments (0)
    Grade
    No customer reviews for the moment.
    16 other products in the same category:
    Humidity Sensor SYH-2R - no case Robotics Bangladesh

    Reference: RBD-2841

    Humidity Sensor SYH-2R - no case

    (0)
    Analog air humidity sensor with resistance-based measurement Wide detection range: 10%–95% relative humidity (RH) High accuracy of ±3% RH at 25°C for reliable monitoring Compact size: only 10 × 5 × 0.65 mm (no case version) Operates across -20°C to +85°C for diverse environments Ideal for flexible integration into DIY and professional projects
    BDT 80
    BDT 80 tax incl.
    BDT 80 tax excl.
    BDT 80 tax excl.
    BDT 80 tax incl.
    BDT 80 tax incl.
    BDT 0 Tax
    BDT 80 tax excl.
    BDT 80 tax excl.
    BDT 0 Tax
    BDT 80 tax incl.
    More Humidity Sensor SYH-2R - no case
    In-Stock
    In stock: 16
    MICS-5524 Carbon Monoxide Hydrogen Methane Alcohol Gas Sensor Detection Module Robotics Bangladesh

    Reference: RBD-3845

    MICS-5524 Carbon Monoxide Hydrogen Methane Alcohol Gas Sensor Detection Module

    (0)
    This sensor is sensitive to CO ( ~ 1 to 1000 ppm). Ammonia (~ 1 to 500 ppm). Ethanol (~ 10 to 500 ppm). H2 (~ 1 – 1000 ppm). Methane / Propane / Iso-Butane (~ 1,000++ ppm).
    BDT 910
    BDT 910 tax incl.
    BDT 910 tax excl.
    BDT 910 tax excl.
    BDT 910 tax incl.
    BDT 910 tax incl.
    BDT 0 Tax
    BDT 910 tax excl.
    BDT 910 tax excl.
    BDT 0 Tax
    BDT 910 tax incl.
    More MICS-5524 Carbon Monoxide Hydrogen Methane Alcohol Gas Sensor Detection Module
    In stock
    In stock: 8
    IR Receiver Diode (5mm) Robotics Bangladesh

    Reference: RBD-1189

    IR Receiver Diode (5mm)

    (0)
    Wavelength: 850nm Emission Distance: 7 Meters / 23Ft Voltage: DC 1.2-1.3V Polarity: Anode (Longer Part) | Cathode (Shorter Part)
    BDT 8
    BDT 8 tax incl.
    BDT 8 tax excl.
    BDT 8 tax excl.
    BDT 8 tax incl.
    BDT 8 tax incl.
    BDT 0 Tax
    BDT 8 tax excl.
    BDT 8 tax excl.
    BDT 0 Tax
    BDT 8 tax incl.
    More IR Receiver Diode (5mm)
    In-Stock
    In stock: 477
    TLV493D 3-Axis Magnetometer I2C Module 3.

    Reference: RBD-4066

    TLV493D 3-Axis Magnetometer I2C Module 3.3V–5V

    (0)
    The TLV493D is a compact triple-axis magnetometer module designed for detecting magnetic fields in three dimensions. It is suitable for tracking the movement or position of nearby magnets rather than measuring the Earth’s magnetic field. This module is commonly used in robotics, embedded systems, and educational projects.
    BDT 890
    BDT 890 tax incl.
    BDT 890 tax excl.
    BDT 890 tax excl.
    BDT 890 tax incl.
    BDT 890 tax incl.
    BDT 0 Tax
    BDT 890 tax excl.
    BDT 890 tax excl.
    BDT 0 Tax
    BDT 890 tax incl.
    More TLV493D 3-Axis Magnetometer I2C Module 3.3V–5V
    In stock
    In stock: 6
    Sold-out Uni-T UTi85H+ Professional Thermal Imager Robotics Bangladesh Uni-T UTi85H+ Professional Thermal Imager Robotics Bangladesh

    Reference: RBD-1365

    Brand: UNI-T

    Uni-T UTi85H+ Professional Thermal Imager

    (0)
    Central point temperature measurement high/low temperature auto tracking real-time temperature display  Alarm buzzer: &gt;37.2ºC: high temperature audible alarm
    BDT 49,000
    BDT 49,000 tax incl.
    BDT 49,000 tax excl.
    BDT 49,000 tax excl.
    BDT 49,000 tax incl.
    BDT 49,000 tax incl.
    BDT 0 Tax
    BDT 49,000 tax excl.
    BDT 49,000 tax excl.
    BDT 0 Tax
    BDT 49,000 tax incl.
    More Uni-T UTi85H+ Professional Thermal Imager
    Sold-out
    In stock: 0
    HY-SRF05 Ultrasonic Range Finder Module Robotics Bangladesh

    Reference: RBD-2445

    HY-SRF05 Ultrasonic Range Finder Module

    (0)
    High-precision ultrasonic distance measurement up to 450cm (15ft) Operates at 40kHz with ±2mm accuracy for reliable readings ±15° field of view for wide detection coverage 5V operation, compatible with Arduino, Raspberry Pi, and other microcontrollers Enhanced precision compared to HC-SR04 with better stability Ideal for robotics, automation, and obstacle...
    BDT 180
    BDT 180 tax incl.
    BDT 180 tax excl.
    BDT 180 tax excl.
    BDT 180 tax incl.
    BDT 180 tax incl.
    BDT 0 Tax
    BDT 180 tax excl.
    BDT 180 tax excl.
    BDT 0 Tax
    BDT 180 tax incl.
    More HY-SRF05 Ultrasonic Range Finder Module
    In-Stock
    In stock: 10
    XKC-Y25 24V NPN Intelligent Non-Contact Liquid Water Level Sensor with 1m Wire Robotics Bangladesh

    Reference: RBD-2779

    XKC-Y25 24V NPN Intelligent Non-Contact Liquid Water Level Sensor with 1m Wire

    (0)
    XKC-Y25 non-contact water level sensor with NPN output Operates on 24V DC with low 5mA power consumption IP67 waterproof ABS housing for durability in harsh environments Detects liquid levels without drilling non-metallic containers Works with toxic, acidic, alkaline, or high-pressure liquids Strong anti-interference, stable, and highly sensitive design
    BDT 1,190
    BDT 1,190 tax incl.
    BDT 1,190 tax excl.
    BDT 1,190 tax excl.
    BDT 1,190 tax incl.
    BDT 1,190 tax incl.
    BDT 0 Tax
    BDT 1,190 tax excl.
    BDT 1,190 tax excl.
    BDT 0 Tax
    BDT 1,190 tax incl.
    More XKC-Y25 24V NPN Intelligent Non-Contact Liquid Water Level Sensor with 1m Wire
    In-Stock
    In stock: 5
    Non-invasive AC current Sensor Split Core Current Transformer SCT-013-000 100A Robotics Bangladesh Non-invasive AC current Sensor Split Core Current Transformer SCT-013-000 100A Robotics Bangladesh

    Reference: RBD-1173

    Non-invasive AC current Sensor Split Core Current Transformer SCT-013-000 100A

    (0)
    Input Current : 100A Frequency: 50HZ-150KHZ Opening Size: 13 x 13mm/ 0.5″ x 0.5″(L*W) Output Plug 3.5mm Dielectric Strength 6000V AC/1min Meet UL94-V0 flame retardant properties
    BDT 775
    BDT 775 tax incl.
    BDT 775 tax excl.
    BDT 775 tax excl.
    BDT 775 tax incl.
    BDT 775 tax incl.
    BDT 0 Tax
    BDT 775 tax excl.
    BDT 775 tax excl.
    BDT 0 Tax
    BDT 775 tax incl.
    More Non-invasive AC current Sensor Split Core Current Transformer SCT-013-000 100A
    In-Stock
    In stock: 4
    MQ-2 Flammable Gas & Smoke Sensor Robotics Bangladesh

    Reference: RBD-0671

    MQ-2 Flammable Gas & Smoke Sensor

    (0)
    Operating Voltage:+5V Preheat Duration:20 s Analog Output Voltage:0 to 5 V Dimension:36x20x21 mm. RoboticsBD
    BDT 140
    BDT 140 tax incl.
    BDT 140 tax excl.
    BDT 140 tax excl.
    BDT 140 tax incl.
    BDT 140 tax incl.
    BDT 0 Tax
    BDT 140 tax excl.
    BDT 140 tax excl.
    BDT 0 Tax
    BDT 140 tax incl.
    More MQ-2 Flammable Gas & Smoke Sensor
    In-Stock
    In stock: 37
    IR Infrared Transmitter - White (5mm) Robotics Bangladesh

    Reference: RBD-1188

    IR Infrared Transmitter - White (5mm)

    (0)
    5 mm Clear Transparent Round Small Lens (Emitting Angle: 30 degrees) Forward Voltage / Direct Current : DC 1.5 Volt 20 mA (Low Voltage Energy Saving) Infrared Ray 850nm (Luminous Invisible Light) for Night Vision CCTV Security Camera Polarity (1.5 V) : Anode (Longer Part) | Cathode (Shorter Part)
    BDT 10
    BDT 10 tax incl.
    BDT 10 tax excl.
    BDT 10 tax excl.
    BDT 10 tax incl.
    BDT 10 tax incl.
    BDT 0 Tax
    BDT 10 tax excl.
    BDT 10 tax excl.
    BDT 0 Tax
    BDT 10 tax incl.
    More IR Infrared Transmitter - White (5mm)
    In-Stock
    In stock: 302
    TSOP1738 IR Infrared Receiver Robotics Bangladesh

    Reference: RBD-1196

    TSOP1738 IR Infrared Receiver

    (0)
    Photo Detector, IR Filter, Preamplifier and PCM frequency filter in one package Shielding against EMI or RFI interference CMOS and TTL Compatible Active Low Output Immunity against ambient light Low Power Consumption Able to transfer data continuously up to 2400bps Supply Voltage : 4.5 – 5.5V
    BDT 54
    BDT 54 tax incl.
    BDT 54 tax excl.
    BDT 54 tax excl.
    BDT 54 tax incl.
    BDT 54 tax incl.
    BDT 0 Tax
    BDT 54 tax excl.
    BDT 54 tax excl.
    BDT 0 Tax
    BDT 54 tax incl.
    More TSOP1738 IR Infrared Receiver
    In-Stock
    In stock: 6
    Yahboom 4 Channel Infrared Line Following Tracking Sensor Module Robotics Bangladesh Yahboom 4 Channel Infrared Line Following Tracking Sensor Module Robotics Bangladesh

    Reference: RBD-2414

    Yahboom 4 Channel Infrared Line Following Tracking Sensor Module

    (0)
    4-Channel Infrared Tracking Sensor: Optimized spacing and design for precise line detection. Supports Complex Tracks: Capable of recognizing 90° curves and challenging tracks. Adjustable Sensitivity: Knob-type adjustable resistors for fine-tuning detection. Wide Compatibility: Easily connects to smart cars or expansion boards using cables or DuPont...
    BDT 850
    BDT 850 tax incl.
    BDT 850 tax excl.
    BDT 850 tax excl.
    BDT 850 tax incl.
    BDT 850 tax incl.
    BDT 0 Tax
    BDT 850 tax excl.
    BDT 850 tax excl.
    BDT 0 Tax
    BDT 850 tax incl.
    More Yahboom 4 Channel Infrared Line Following Tracking Sensor Module
    In-Stock
    In stock: 15
    TCS34725 RGB Color Sensor Mini Module Robotics Bangladesh

    Reference: RBD-3771

    TCS34725 RGB Color Sensor Mini Module

    (0)
    The TCS34725 RGB Color Sensor Mini Module is a compact, high-precision color sensing solution designed for projects that require accurate light and color detection. Based on the TCS3472 sensor chip, it can measure red, green, blue, and clear light intensity with excellent sensitivity and a wide dynamic range.
    BDT 390
    BDT 390 tax incl.
    BDT 390 tax excl.
    BDT 390 tax excl.
    BDT 390 tax incl.
    BDT 390 tax incl.
    BDT 0 Tax
    BDT 390 tax excl.
    BDT 390 tax excl.
    BDT 0 Tax
    BDT 390 tax incl.
    More TCS34725 RGB Color Sensor Mini Module
    In stock
    In stock: 19
    GY- BMI160 6DOF Gravity Accelerometer Sensor Robotics Bangladesh

    Reference: RBD-0700

    GY- BMI160 6DOF Gravity Accelerometer Sensor

    (0)
    Operating Voltage: 3.3V-5.5V Low Power Consumption High Accuracy Small Size
    BDT 390
    BDT 390 tax incl.
    BDT 390 tax excl.
    BDT 390 tax excl.
    BDT 390 tax incl.
    BDT 390 tax incl.
    BDT 0 Tax
    BDT 390 tax excl.
    BDT 390 tax excl.
    BDT 0 Tax
    BDT 390 tax incl.
    More GY- BMI160 6DOF Gravity Accelerometer Sensor
    In-Stock
    In stock: 15
    On sale! Current Sensor ACS712-30A Robotics Bangladesh Current Sensor ACS712-30A Robotics Bangladesh

    Reference: RBD-0555

    Current Sensor ACS712-30A

    (0)
    Low-noise analog signal path Device bandwidth is set via the new FILTER pin 5 µs output rise time in response to step input current Small footprint, low-profile SOIC8 package 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8 Supply Voltage: 4.5V~5.5V DC Measure Current Range: 30A Sensitivity: 100mV/A
    BDT 149
    BDT 149 tax incl.
    BDT 149 tax excl.
    BDT 149 tax excl.
    BDT 149 tax incl.
    BDT 149 tax incl.
    BDT 0 Tax
    BDT 149 tax excl.
    BDT 149 tax excl.
    BDT 0 Tax
    BDT 149 tax incl.
    More Current Sensor ACS712-30A
    In-Stock
    In stock: 43
    OV2640 2.0 Mega Pixel 1/4'' CMOS Image Sensor Camera Module Robotics Bangladesh OV2640 2.0 Mega Pixel 1/4'' CMOS Image Sensor Camera Module Robotics Bangladesh

    Reference: RBD-1976

    OV2640 2.0 Mega Pixel 1/4'' CMOS Image Sensor Camera Module

    (0)
    High sensitivity for Low-Light Operation. Low Operating Voltage for Embedded Portable Apps. Supports Scaling. The Standard SCCB Interface is Compatible with the I2C Interface.
    BDT 480
    BDT 480 tax incl.
    BDT 480 tax excl.
    BDT 480 tax excl.
    BDT 480 tax incl.
    BDT 480 tax incl.
    BDT 0 Tax
    BDT 480 tax excl.
    BDT 480 tax excl.
    BDT 0 Tax
    BDT 480 tax incl.
    More OV2640 2.0 Mega Pixel 1/4'' CMOS Image Sensor Camera Module
    In-Stock
    In stock: 31
    L7805 Voltage Regulator 5V Robotics Bangladesh L7805 Voltage Regulator 5V Robotics Bangladesh

    Reference: RBD-1003

    L7805 Voltage Regulator 5V

    (0)
    Fixed output voltage is 5V Output current is 0.5A Dropout voltage is 2V Maximum DC input voltage is 35V Output transition SOA protection Output voltage tolerance is 4%
    BDT 18
    BDT 18 tax incl.
    BDT 18 tax excl.
    BDT 18 tax excl.
    BDT 18 tax incl.
    BDT 18 tax incl.
    BDT 0 Tax
    BDT 18 tax excl.
    BDT 18 tax excl.
    BDT 0 Tax
    BDT 18 tax incl.
    More L7805 Voltage Regulator 5V
    In-Stock
    In stock: 132
    - BDT 141 On sale! Reduced price 4WD Smart Robot Chassis Kit Robotics Bangladesh 4WD Smart Robot Chassis Kit Robotics Bangladesh

    Reference: RBD-0326

    4WD Smart Robot Chassis Kit

    (0)
    Very handy and simple in assembling/disassembling. RoboticsBD Strong components so as to withstand extreme terrain conditions. Transparent Car Chassis. Attractive design. RoboticsBD
    BDT 1,149 BDT 1,290
    BDT 1,290 BDT 1,149 tax incl.
    BDT 1,290 BDT 1,149 tax excl.
    BDT 1,290 BDT 1,149 tax excl.
    BDT 1,290 BDT 1,149 tax incl.
    BDT 1,290 BDT 1,149 tax incl.
    BDT 0 BDT 0 Tax
    BDT 1,290 BDT 1,149 tax excl.
    BDT 1,290 BDT 1,149 tax excl.
    BDT 0 BDT 0 Tax
    BDT 1,290 BDT 1,149 tax incl.
    More 4WD Smart Robot Chassis Kit
    In-Stock
    In stock: 86
    - BDT 100 Reduced price Arduino Mega 2560 R3 Robotics Bangladesh Arduino Mega 2560 R3 Robotics Bangladesh

    Reference: RBD-0009

    Arduino Mega 2560 R3

    (0)
    54 Digital I/O terminals (14 of which have programmable PWM outputs). 16 Analog Inputs. 4 UARTs (hardware serial ports). 16 MHz crystal clock. RoboticsBD Operating voltage: 6 ~ 12v. Dimensions: 110 x 53 x 15 mm.
    BDT 1,788 BDT 1,888
    BDT 1,888 BDT 1,788 tax incl.
    BDT 1,888 BDT 1,788 tax excl.
    BDT 1,888 BDT 1,788 tax excl.
    BDT 1,888 BDT 1,788 tax incl.
    BDT 1,888 BDT 1,788 tax incl.
    BDT 0 BDT 0 Tax
    BDT 1,888 BDT 1,788 tax excl.
    BDT 1,888 BDT 1,788 tax excl.
    BDT 0 BDT 0 Tax
    BDT 1,888 BDT 1,788 tax incl.
    More Arduino Mega 2560 R3
    In-Stock
    In stock: 6
    Breadboard (Medium Size) Robotics Bangladesh

    Reference: RBD-0120

    Breadboard Half Size Bare 400 Tie Points

    (0)
    400 tie points 2 Power lanes, Total 100 tie points in power lanes 1 Double strip, Total 300 tie points Perfect for Arduino shield prototyping and testing Plastic housing, metal contact clips
    BDT 88
    BDT 88 tax incl.
    BDT 88 tax excl.
    BDT 88 tax excl.
    BDT 88 tax incl.
    BDT 88 tax incl.
    BDT 0 Tax
    BDT 88 tax excl.
    BDT 88 tax excl.
    BDT 0 Tax
    BDT 88 tax incl.
    More Breadboard Half Size Bare 400 Tie Points
    In-Stock
    In stock: 248
    - BDT 139 Reduced price B3 Pro Lipo Balance Charger Robotics Bangladesh

    Reference: RBD-0212

    B3 Pro Lipo Balance Charger

    (0)
    Input: 110v or 240v A/C (50/60Hz) Cell Count: 2~3s Battery Type: LiPoly Output Current: 3 x 800mA
    BDT 460 BDT 599
    BDT 599 BDT 460 tax incl.
    BDT 599 BDT 460 tax excl.
    BDT 599 BDT 460 tax excl.
    BDT 599 BDT 460 tax incl.
    BDT 599 BDT 460 tax incl.
    BDT 0 BDT 0 Tax
    BDT 599 BDT 460 tax excl.
    BDT 599 BDT 460 tax excl.
    BDT 0 BDT 0 Tax
    BDT 599 BDT 460 tax incl.
    More B3 Pro Lipo Balance Charger
    In-Stock
    In stock: 13
    - BDT 95 Reduced price JF-0530B Pull Push Type Electric Solenoid Electromagnet 10mm 5N DC6V Robotics Bangladesh

    Reference: RBD-0227

    JF-0530B Pull Push Type Electric Solenoid Electromagnet 10mm 5N DC6V

    (0)
    Model: DC 5V 10mm 5N Rated Operating Voltage (VDC): 5 Operation Mode: Push-Pull (Normally Closed) Holding Force (N): 5 Weight:33 gm
    BDT 495 BDT 590
    BDT 590 BDT 495 tax incl.
    BDT 590 BDT 495 tax excl.
    BDT 590 BDT 495 tax excl.
    BDT 590 BDT 495 tax incl.
    BDT 590 BDT 495 tax incl.
    BDT 0 BDT 0 Tax
    BDT 590 BDT 495 tax excl.
    BDT 590 BDT 495 tax excl.
    BDT 0 BDT 0 Tax
    BDT 590 BDT 495 tax incl.
    More JF-0530B Pull Push Type Electric Solenoid Electromagnet 10mm 5N DC6V
    In-Stock
    In stock: 29
    L298N H-Bridge Dual Motor Driver, Stepper Motor Driver Robotics Bangladesh L298N H-Bridge Dual Motor Driver, Stepper Motor Driver Robotics Bangladesh

    Reference: RBD-0376

    L298N H-Bridge Dual Motor Driver, Stepper Motor Driver

    (0)
    Current Sense for each motor. RoboticsBD Heatsink for better performance. Power-On LED indicator. Double H bridge Drive Chip: L298N. Operating Voltage(VDC): 5~35 Peak Current (A): 2 Continuous Current (A): 0-36mA No. of Channels: 2 Over-Current Protection (A): Yes Thermal Protection: Yes
    BDT 185
    BDT 185 tax incl.
    BDT 185 tax excl.
    BDT 185 tax excl.
    BDT 185 tax incl.
    BDT 185 tax incl.
    BDT 0 Tax
    BDT 185 tax excl.
    BDT 185 tax excl.
    BDT 0 Tax
    BDT 185 tax incl.
    More L298N H-Bridge Dual Motor Driver, Stepper Motor Driver
    In Stock
    In stock: 580
    Digital Tachometer Speed Module Sensor for Arduino UNO Robotics Bangladesh

    Reference: RBD-0427

    Digital Tachometer Speed Module Sensor for Arduino UNO

    (0)
    Working voltage: 3.3V-5V Output form: digital output (0 and 1)
    BDT 90
    BDT 90 tax incl.
    BDT 90 tax excl.
    BDT 90 tax excl.
    BDT 90 tax incl.
    BDT 90 tax incl.
    BDT 0 Tax
    BDT 90 tax excl.
    BDT 90 tax excl.
    BDT 0 Tax
    BDT 90 tax incl.
    More Digital Tachometer Speed Module Sensor for Arduino UNO
    In-Stock
    In stock: 14
    You might also like
    Arduino Uno R3 Robotics Bangladesh Arduino Uno R3 Robotics Bangladesh

    Reference: RBD-0094

    Arduino Uno R3

    (0)
    The Arduino Uno R3 High-Quality Edition Arduino UNO in BangladeshMicro-controller : ATmega328. Operating Voltage : 5V. Input Voltage (recommended) : 7-12V. Digital I/O Pins : 14 (of which 6 provide PWM output). Analog Input Pins : 6. The Arduino Uno R3 High-Quality Edition embodies superior craftsmanship and meticulous attention to detail, resulting in...
    BDT 988
    BDT 988 tax incl.
    BDT 988 tax excl.
    BDT 988 tax excl.
    BDT 988 tax incl.
    BDT 988 tax incl.
    BDT 0 Tax
    BDT 988 tax excl.
    BDT 988 tax excl.
    BDT 0 Tax
    BDT 988 tax incl.
    More Arduino Uno R3
    In-Stock
    In stock: 480
    LIDAR-Lite v3 Robotics Bangladesh LIDAR-Lite v3 Robotics Bangladesh

    Reference: RBD-0367

    Brand: SparkFun Electronics

    LIDAR-Lite v3

    (0)
    Reliable and powerful ranging and proximity sensor for drone, robot or unmanned vehicle applications Compact, lightweight with low power consumption User-configurable allows adjustment between accuracy, operating range and measurement time Communication via I2C and PWM Requires a power source and an external micro-controller running an application....
    BDT 27,500
    BDT 27,500 tax incl.
    BDT 27,500 tax excl.
    BDT 27,500 tax excl.
    BDT 27,500 tax incl.
    BDT 27,500 tax incl.
    BDT 0 Tax
    BDT 27,500 tax excl.
    BDT 27,500 tax excl.
    BDT 0 Tax
    BDT 27,500 tax incl.
    More LIDAR-Lite v3
    Last items in stock
    In stock: 2
    Sold-out RPLIDAR A2 360° Laser Range Scanner Robotics Bangladesh RPLIDAR A2 360° Laser Range Scanner Robotics Bangladesh

    Reference: RBD-1206

    RPLIDAR A2 360° Laser Range Scanner

    (0)
    Scanning Range: 18M Radius Detection Range:  12M Radius 4cm Ultra-thin Ideal for all kinds of service robot. 8000 times sample rate, the highest in the current economical LIDAR industry 360-degree laser range scanning Low Noise, Brushless Motor New Non-contact Drive OPTMAG Original Design, prolong the life-span Class 1 Laser Safety Standard High-speed...
    BDT 49,000
    BDT 49,000 tax incl.
    BDT 49,000 tax excl.
    BDT 49,000 tax excl.
    BDT 49,000 tax incl.
    BDT 49,000 tax incl.
    BDT 0 Tax
    BDT 49,000 tax excl.
    BDT 49,000 tax excl.
    BDT 0 Tax
    BDT 49,000 tax incl.
    More RPLIDAR A2 360° Laser Range Scanner
    Sold-out
    In stock: 0

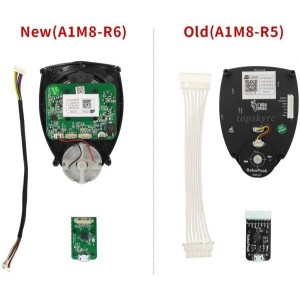

    Slamtec RPLIDAR A1 2D 360 Degree 12 Meters LIDAR Sensor Robotics Bangladesh Slamtec RPLIDAR A1 2D 360 Degree 12 Meters LIDAR Sensor Robotics Bangladesh

    Reference: RBD-1205

    SLAMTEC RPLiDAR A1M8 360 Degree Laser Range Finder 12m Lidar Sensor

    (0)
    Distance Range (Radius): 0.15m to 6m, white objects (Diameter Range – 12m) Angular Range: 0 ~ 360º Distance Resolution: &lt; 0.5mm Angular Resolution: &lt;= 1 º Sample Duration: 0.5 ms Sample Frequency: &gt;=8000 Hz Scan Rate: 1 ~ 10Hz, Typical 5.5HzNote: The range of this RPLiDAR is 6-meter if we are considering radius and 12-meter if we are considering...
    BDT 16,750
    BDT 16,750 tax incl.
    BDT 16,750 tax excl.
    BDT 16,750 tax excl.
    BDT 16,750 tax incl.
    BDT 16,750 tax incl.
    BDT 0 Tax
    BDT 16,750 tax excl.
    BDT 16,750 tax excl.
    BDT 0 Tax
    BDT 16,750 tax incl.
    More SLAMTEC RPLiDAR A1M8 360 Degree Laser Range Finder 12m Lidar Sensor
    In-Stock
    In stock: 7
    TFMini - Micro LiDAR Module Robotics Bangladesh TFMini - Micro LiDAR Module Robotics Bangladesh

    Reference: RBD-1201

    TFMini S - Micro LiDAR Module

    (0)
    Measurement range: 12 m. Operating Voltage: 5V. Power : 0.12w. Weight: 6 gm. Compatible with Pixhawk Controller. Frequency: 100Hz
    BDT 8,990
    BDT 8,990 tax incl.
    BDT 8,990 tax excl.
    BDT 8,990 tax excl.
    BDT 8,990 tax incl.
    BDT 8,990 tax incl.
    BDT 0 Tax
    BDT 8,990 tax excl.
    BDT 8,990 tax excl.
    BDT 0 Tax
    BDT 8,990 tax incl.
    More TFMini S - Micro LiDAR Module
    In-Stock
    In stock: 7

    Follow us on Facebook

    Facebook
