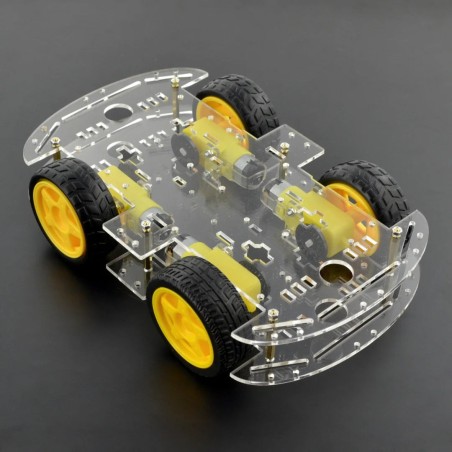

This is a 4 wheel drive Smart Robot Chassis Kit. It comes with the four pairs of Geared Motors and Wheels. All the products included in this car kit are quality products. The chassis used in this kit is transparent to create dynamic handling of the components mounted on your robotic vehicle. Featured By RoboticsBD. The 4WD Smart Robot Chassis Kit is a robotic platform designed to be used with an Arduino microcontroller. This kit typically includes a four-wheeled robot chassis, DC motors, wheels, a control board, and other necessary components to assemble a functional robot. The kit is typically designed to be easy to assemble and is intended to be used by hobbyists, students, and makers to learn about robotics, electronics, and programming. The user can control the movements and actions of the robot using an Arduino board and writing code in the Arduino Integrated Development Environment (IDE).
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features :
- Very handy and simple in assembling/disassembling. RoboticsBD
- Strong components to withstand extreme terrain conditions.
- Transparent Car Chassis.
- Attractive design.
- Double-layer structure, much of mounting holes, enough space
- Easy to install a variety of control panels, sensors
- Educational toys, Ideal for the DIY platform. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Specifications:
For BO Motor:
- Operating Voltage: 3V~6V DC
- Gear Ratio 1:48
- No-load speed(5V): about 208RPM
- Rated Torque: 0.8 Kg.cm @ 5V
- Load current: 170mA (when it is 4.5V)
- Size: 70 x 23 x 18 mm
- Weight:28g
- Shaft Length: 10 mm
- Shaft Type: 6 mm, Double-D
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
For Wheel:
- Loading Capacity: Max 2.5Kg
- Double D-hole For BO Motor: 6 mm
- Weight: 34g
- Wheel Diameter: 65 mm
- Color: Black (Tyre), Yellow (Rim)
- Wheel width: 27 mm
- Body Material: Plastic
- Grip Material: Rubber. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Motor Operating Voltage (VDC) | 3 ~ 6 |
| Motor Shaft Length (mm) | 8.5 |
| Motor Shaft Diameter (mm) | 5.4mm-(round side) and 3.5mm-(flat side) |
| Motor Rated Speed After Reduction (RPM) | 200 |
| Motor Rated Torque (Kg-Cm) | 0.8 |
| Motor Gearbox Shape | Straight |
| Motor Length (mm) | 70 |
| Motor Width (mm) | 19 |
| Motor Height (mm) | 22 |
| Motor Weight (gm) | 28 (each) |
| Wheel Color | Black (Tire)
Yellow (Rim) |
| Wheel Internal Diameter(ID)(mm) | 51 |
| Wheel Load Capacity(Kg/Wheel) | 2.5 |
| Wheel Tyre Grip Material | Rubber |
| Wheel Body Material | Plastic |
| Wheel Diameter(mm) | 65 |
| Wheel Width (mm) | 27 |
| Wheel Weight(gm) | 34 (each) |
| Shipment Weight | 0.4 kg |
| Shipment Dimensions | 30 × 18 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

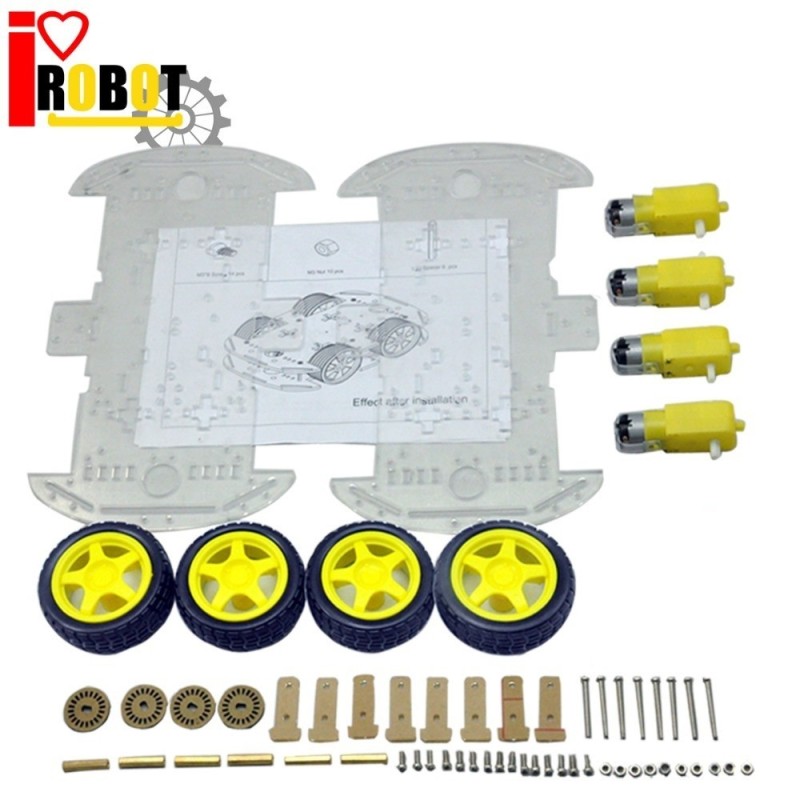

Package includes:
2 x Acrylic Transparent car floor
4 x High-Quality 65-mm Plastic wheels with Rubber Grip
4 x Dual shaft 200 RPM BO Gear Motor
4 x Coded Disk
8 x Acrylic Fasteners
8 x Connecting Cable(Red and Black, Length: 20 cm each)
6 x M3 Brass Stand-Off
6 x M3 Cross-Head Bolt (Length: 8 mm )
8 x M3 Cross-Head Bolt (Length: 30 mm )
16 x M3 Nut
