HW-671 WCS1800 Hall Current Sensor Over-current Protection Module Detection

Reference RBD-2346

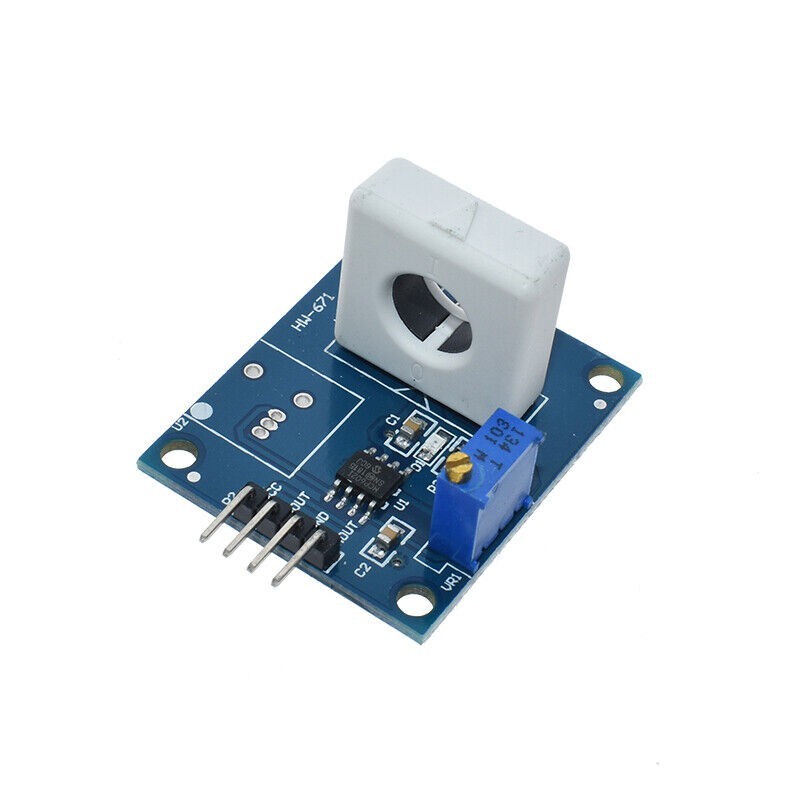

HW-671 WCS1800 Hall Current Sensor Module with over-current protection
Current detection range: DC ±35A, AC 25A
High-resolution current detection: 60mV/A
Adjustable overcurrent threshold with a resolution of 1.5A
Analog and TTL signal outputs for microcontroller integration
Compact design with mounting holes for easy installation

Description
Product Details

Description

The HW-671 WCS1800 Hall Current Sensor Module is designed for precise current detection and overcurrent protection. It supports a detection range of DC ±35A and AC 25A with a resolution of 60mV/A, making it ideal for various electronic applications. This module provides both analog and TTL signal outputs, ensuring seamless integration with ADCs and microcontroller I/O ports. The adjustable overcurrent threshold with visual signal output simplifies monitoring and control. Its compact size and mounting holes make it easy to install, perfect for use in power management and safety-critical systems. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Wide Detection Range: Supports DC ±35A and AC 25A current detection.
High Resolution: Offers a detection resolution of 60mV/A for accurate measurements.
Overcurrent Protection: Adjustable threshold with a resolution of 1.5A.
Signal Outputs: Provides analog and TTL-level signals for versatile use.
LED Indicator: Visual signal for overcurrent status.
Easy Installation: Compact design with mounting holes for quick setup.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Power Management Systems: Monitor and protect circuits from overcurrent damage.
Microcontroller Integration: Analog and TTL signal outputs for microcontroller-based projects.
Safety Systems: Detect and respond to overcurrent scenarios in real-time.
Electronic Circuit Testing: Measure current flow accurately in development projects.
Industrial Automation: Use in automation systems requiring precise current monitoring.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Detection Range (DC)	±35A
Detection Range (AC)	25A
Current Resolution	60mV/A
Overcurrent Threshold	Adjustable (1.5A resolution)
Output Signal	Analog and TTL
Operating Voltage	DC 5V
Main Chip	LM393 op-amp, WCS1800
Module Dimensions	37 x 31 x 16.5 mm
Shipment Weight	0.0115 kg
Shipment Dimensions	5 x 3 x 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x HW-671 WCS1800 Hall Current Sensor Over-current Protection Module Detection

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details

Reference RBD-2346

In stock 19 Items

Specific References

EAN13: 2346

Comments (0)

Grade

No customer reviews for the moment.

16 other products in the same category:

Reference: RBD-4073

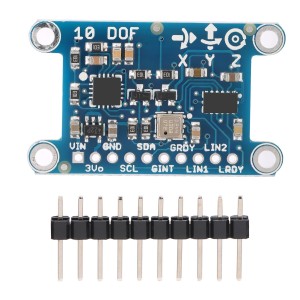

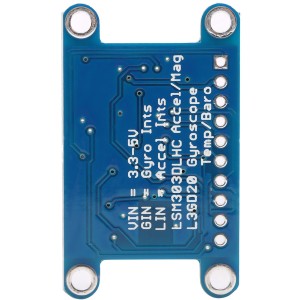

10 DOF IMU Sensor Module LSM303 + L3GD20 + BMP180 I2C 3.3V–5V

(0)

This 10-DOF IMU module integrates an accelerometer, gyroscope, magnetometer, and barometric pressure sensor on a single breakout board. It is designed for motion sensing, orientation tracking, and environmental measurement in robotics, embedded systems, and educational projects.

BDT 1,350

BDT 1,350 tax incl.

BDT 1,350 tax excl.

BDT 1,350 tax incl.

BDT 0 Tax

BDT 1,350 tax excl.

BDT 0 Tax

BDT 1,350 tax incl.

In stock

In stock: 10

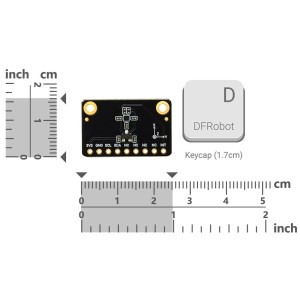

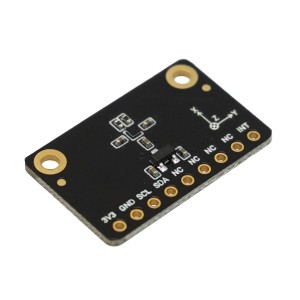

Fermion: BMM350 Triple-Axis Magnetometer Sensor for AR / VR Breakout Robotics Bangladesh

Reference: RBD-3651

Brand: DFRobot

Fermion: BMM350 Triple-Axis Magnetometer Sensor for AR / VR Breakout

(0)

The BMM350 sensor measures magnetic fields on 3 axes using TMR tech, offers high sample rates, wide range, high resolution, and stability against field shocks.

BDT 1,433

BDT 1,433 tax incl.

BDT 1,433 tax excl.

BDT 1,433 tax incl.

BDT 0 Tax

BDT 1,433 tax excl.

BDT 0 Tax

BDT 1,433 tax incl.

Last items in stock

In stock: 3

Reference: RBD-2146

Galvanic Skin Response GSR Sensor

(0)

Operating voltage:3.3V/5V Sensitivity: Adjustable via a potentiometer Input Signal: Resistance, NOT Conductivity Output Signal: Voltage, analog reading Finger contact material: Nickel

BDT 2,440

BDT 2,440 tax incl.

BDT 2,440 tax excl.

BDT 2,440 tax incl.

BDT 0 Tax

BDT 2,440 tax excl.

BDT 0 Tax

BDT 2,440 tax incl.

In-Stock

In stock: 13

Reference: RBD-3727

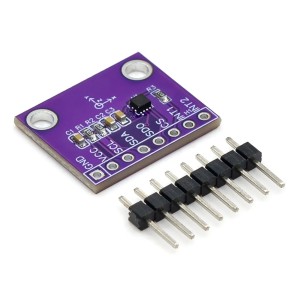

LIS2DH12TR Three-Axis Acceleration Sensor Module

(0)

The LIS2DH12TR Three-Axis Acceleration Sensor Module is a high-performance, ultra-low-power accelerometer designed for motion detection, orientation sensing, and industrial applications. Offering a wide dynamic range of ±2g/±4g/±8g/±16g, selectable in real time, this module is an excellent replacement for the popular ADXL345, with enhanced power...

BDT 482

BDT 482 tax incl.

BDT 482 tax excl.

BDT 482 tax incl.

BDT 0 Tax

BDT 482 tax excl.

BDT 0 Tax

BDT 482 tax incl.

In stock

In stock: 20

Reference: RBD-2452

Pulse Heart Rate Sensor Kit For Arduino

(0)

Plug-and-play heart rate sensor kit for Arduino and other microcontrollers Includes sensor, ear clip, Velcro strap, protective dots, and DuPont cable Compatible with Arduino, Raspberry Pi, micro:bit, Particle, and more Open-source with free Arduino and Processing code for real-time pulse graphs Compact, lightweight, and ideal for health, fitness, and...

BDT 580

BDT 580 tax incl.

BDT 580 tax excl.

BDT 580 tax incl.

BDT 0 Tax

BDT 580 tax excl.

BDT 0 Tax

BDT 580 tax incl.

In-Stock

In stock: 119

Reference: RBD-2103

IR Remote Control without Battery

(0)

Remote control distance: more than 8 meters Crystal: the oscillation frequency of 455 IR carrier frequency: 38KHz Output form: Digital Power Supply: CR2032 Battery Pointing Angle: up to 60º Button: free height is less than 3mm, the force 200-350g, the life of more than 200 000 click

BDT 85

BDT 85 tax incl.

BDT 85 tax excl.

BDT 85 tax incl.

BDT 0 Tax

BDT 85 tax excl.

BDT 0 Tax

BDT 85 tax incl.

In-Stock

In stock: 16

Reference: RBD-2790

Hall-Effect Sensor - US1881 (Latching)

(0)

Integrated latching Hall-Effect sensor (US1881) Magnetic presence detection with output toggle function Wide operating voltage: 3.5V–24V DC Open-collector output, up to 50mA sinking current Built-in Schmitt trigger for noise immunity Compact TO-92 package with reverse polarity protection

BDT 115

BDT 115 tax incl.

BDT 115 tax excl.

BDT 115 tax incl.

BDT 0 Tax

BDT 115 tax excl.

BDT 0 Tax

BDT 115 tax incl.

In-Stock

In stock: 35

Reference: RBD-2300

Soil Sensor RS485 5 Pin PH NPK Storage Temperature And Humidity EC Sensor Conductivity Tester Multi Parameter

(0)

Multi-parameter Soil Sensor for measuring pH, NPK, moisture, temperature, and conductivity Wide input voltage range (4.5-30V) with RS485 Modbus protocol for seamless integration High precision, corrosion-resistant, IP68-rated design for long-term soil and water monitoring Built-in temperature compensation for accurate conductivity measurements Ideal for...

BDT 15,199

BDT 15,199 tax incl.

BDT 15,199 tax excl.

BDT 15,199 tax incl.

BDT 0 Tax

BDT 15,199 tax excl.

BDT 0 Tax

BDT 15,199 tax incl.

In-Stock

In stock: 12

Reference: RBD-1738

Active Speaker Buzzer Module for Arduino 5V

(0)

Operating Voltage : 1.5 ~ 15V DC Working Current: Less than 25mA Tone Generation Range : 1.5 ~ 2.5kHz Dimensions (LxWxH): 26 x 15 x 11 mm

BDT 59

BDT 59 tax incl.

BDT 59 tax excl.

BDT 59 tax incl.

BDT 0 Tax

BDT 59 tax excl.

BDT 0 Tax

BDT 59 tax incl.

In-Stock

In stock: 155

ISD1820 Voice Recording Module With Mic and Loudspeaker Robotics Bangladesh

Reference: RBD-0690

ISD1820 S16 Voice Recording Module With Mic and Loudspeaker

(0)

The main chip: ISD1820. S16 Operating Voltage: DC 3V-5V. Loudspeaker: 8Ω, 0.5W. An easy to use 10 seconds of voice recording. High-quality, natural voice restored. Can be used as a propaganda module. With looping, jog playback, single-pass play function.

BDT 280

BDT 280 tax incl.

BDT 280 tax excl.

BDT 280 tax incl.

BDT 0 Tax

BDT 280 tax excl.

BDT 0 Tax

BDT 280 tax incl.

In-Stock

In stock: 24

Reference: RBD-2979

YFS301 7-24V Water Flow Sensor Flowmeter 0.3-10L/Min

(0)

YFS301 water flow sensor with 0.3–10L/min measurement range Wide voltage support (7–24V DC) with Hall effect pulse output 9.5mm inlet/outlet diameter for versatile fluid applications Sealed Hall sensor keeps electronics dry and protected Durable stainless-steel shaft & sealing ring for leak-proof performance Suitable for water heaters, purifiers,...

BDT 630

BDT 630 tax incl.

BDT 630 tax excl.

BDT 630 tax incl.

BDT 0 Tax

BDT 630 tax excl.

BDT 0 Tax

BDT 630 tax incl.

In-Stock

In stock: 14

Raspberry Pi NoIR Camera V2 8MP Robotics Bangladesh

Reference: RBD-0722

Brand: Raspberry Pi Official

Raspberry Pi NoIR Camera V2 8MP

(0)

8-Megapixel native resolution high-quality Sony IMX219 image sensor Cameras are capable of 3280 x 2464 pixel static images Capture video at 1080p30, 720p60 and 640x480p90 resolutions All software is supported within the latest version of Raspbian Operating System No Infrared filter making it perfect for taking Infrared photographs or photographing objects...

BDT 3,999

BDT 3,999 tax incl.

BDT 3,999 tax excl.

BDT 3,999 tax incl.

BDT 0 Tax

BDT 3,999 tax excl.

BDT 0 Tax

BDT 3,999 tax incl.

In-Stock

In stock: 4

Reference: RBD-1195

TSOP1736 IR Infrared Receiver

(0)

Temperature Coefficient Type: NTC Thermal Time Constant: 10s Resistance 10kΩ Tolerance: ±1%

BDT 65

BDT 65 tax incl.

BDT 65 tax excl.

BDT 65 tax incl.

BDT 0 Tax

BDT 65 tax excl.

BDT 0 Tax

BDT 65 tax incl.

In-Stock

In stock: 7

Gravity: mmWave C4001 24GHz Human Presence Detection Sensor Robotics Bangladesh

Reference: RBD-2828

Brand: DFRobot

Gravity: mmWave C4001 24GHz Human Presence Detection Sensor

(0)

24GHz mmWave radar sensor with 8m static presence and 12m motion detection range. Supports I2C & UART communication, compatible with Arduino, Raspberry Pi, ESP32, and ESP8266. FMCW modulation enables real-time distance, velocity, and presence detection. Strong anti-interference performance: unaffected by light, temperature, humidity, or dust. Compact...

BDT 2,750

BDT 2,750 tax incl.

BDT 2,750 tax excl.

BDT 2,750 tax incl.

BDT 0 Tax

BDT 2,750 tax excl.

BDT 0 Tax

BDT 2,750 tax incl.

In-Stock

In stock: 5

Reference: RBD-3402

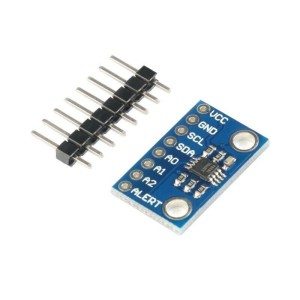

MCP9808 High Accuracy I2C Temperature Sensor Breakout Board
