    Non-invasive AC current Sensor Split Core Current Transformer SCT-013-000 30A Robotics Bangladesh
    • Non-invasive AC current Sensor Split Core Current Transformer SCT-013-000 30A Robotics Bangladesh
    • Non-invasive AC current Sensor Split Core Current Transformer SCT-013-000 30A Robotics Bangladesh

    Non-invasive AC current Sensor Split Core Current Transformer SCT-013-000 30A

    RBD-1836

    • Input Current : 0-30A
    • Output Mode: 0-1V @ 30mA
    • Frequency: 50HZ-150KHZ
    • Opening Size: 13 x 13mm/ 0.5″ x 0.5″(L*W)
    • Output Plug 3.5mm
    • Dielectric Strength 6000V AC/1min
    • Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
    • Meet UL94-V0 flame retardant properties
    BDT 780
    BDT 780 BDT 780 BDT 780 BDT 780
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 780 Tax excluded
    BDT 780 Tax included
    BDT 0 Tax
    BDT 780 Tax excluded
    BDT 0 Tax
    BDT 780 Tax included
    Quantity
    In-Stock
    21 Items

    28 people have purchased this item
    1 person recently added this item to the cart
    21 items in stock
    Description

    This is SCT-013-030 Non-invasive AC Current Sensor Clamp Sensor 30A. SCT-013-000 is a Non-Invasive AC current sensor i.e. it is a current transformer that can be used to measure AC current up to 100 amperes. Featured by RoboticsBD.

    This non-invasive current sensor clamped around the supply line can measure a load up to 30 Amps, and allow you to calculate how much current pass through it. It can be useful for building your own energy monitor or for building an over-current protection device for an AC load. This current clamp can be used to detect a current of up to 30A. Simply clip it around the current source that you wish to measure and it will produce a (very) small AC voltage proportional to the current. The cable is terminated on one end with a standard 3.5mm jack (like a headphone jack). Featured by RoboticsBD.

    Use this to build your own energy monitor and keep your power usage down, or use it to build an over-current protection device for an AC load. See the link below for an example project. Check out the datasheet for the pinout of the 3.5mm jack. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications
    1. Suitable for the current measuring.
    2. Monitoring and protection of AC motor
    3. Lighting equipment
    4. Air compressor

    Features :

    1. Non-invasive current transformer
    2. Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
    3. Meet UL94-V0 flame retardant properties
    4. Two forms of output current, voltage (voltage output built-in the sampling resistor)
    5. Non-linearity ±3%(10%-120% rated input current)
    6. Output Plug 3.5mm.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    Core MaterialFerrite
    External MaterialABS
    Input Current0-30A
    Opening Size(mm)13×13
    Dielectric Strength(VAC/1min)6000
    Operating Temperature (°C)-25 to 85
    Output Mode0-1V @ 30mA
    Length (mm)57
    Width (mm)36
    Height (mm)21
    Weight (gm)65
    Cable Length (Meter)1
    Shipment Weight0.07 kg
    Shipment Dimensions9 × 7 × 3.5 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    1. Interfacing CT Sensor to Arduino
    2. Arduino Energy Monitor
    3. Current Monitoring with Non-invasive AC current Transformer

    Package Includes :

    1 x 30A AC Current Sensor Module.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-1836
    21 Items

    Specific References

    EAN13
    1836
    Comments (0)
    Grade
    No customer reviews for the moment.
    16 other products in the same category:
    E18-D80NK Proximity Sensor Module Mounting Bracket Robotics Bangladesh E18-D80NK Proximity Sensor Module Mounting Bracket Robotics Bangladesh

    Reference: RBD-2723

    E18-D80NK Proximity Sensor Module Mounting Bracket

    (0)
    Acrylic mounting bracket designed for E18-D80NK Infrared Proximity Sensor 19mm sensor mounting hole with dual-sided insertion option Includes mounting hardware for quick and secure installation Allows easy attachment to robotic vehicle chassis or other surfaces Lightweight and durable construction for long-term use Compact size ensures compatibility with...
    BDT 90
    BDT 90 tax incl.
    BDT 90 tax excl.
    BDT 90 tax excl.
    BDT 90 tax incl.
    BDT 90 tax incl.
    BDT 0 Tax
    BDT 90 tax excl.
    BDT 90 tax excl.
    BDT 0 Tax
    BDT 90 tax incl.
    More E18-D80NK Proximity Sensor Module Mounting Bracket
    In-Stock
    In stock: 85

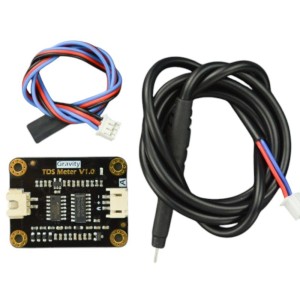

    Gravity Analog TDS Sensor/ Meter for Arduino Robotics Bangladesh

    Reference: RBD-3238

    Brand: DFRobot

    Gravity Analog TDS Sensor/ Meter for Arduino

    (0)
    Gravity: Analog TDS Sensor/Meter for Arduino is an Arduino-compatible TDS Meter Kit for measuring TDS value of the water, to reflect the cleanliness of the water. TDS meter can be applied to domestic water, hydroponic and other fields of water quality testing. You may also check Liquid Senser Selection Guide to get better familiar with our liquid sensor...
    BDT 2,055
    BDT 2,055 tax incl.
    BDT 2,055 tax excl.
    BDT 2,055 tax excl.
    BDT 2,055 tax incl.
    BDT 2,055 tax incl.
    BDT 0 Tax
    BDT 2,055 tax excl.
    BDT 2,055 tax excl.
    BDT 0 Tax
    BDT 2,055 tax incl.
    More Gravity Analog TDS Sensor/ Meter for Arduino
    In stock
    In stock: 5

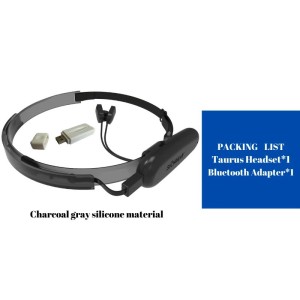

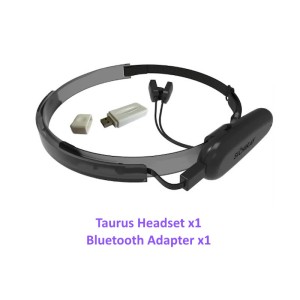

    Taurus 4.0 TGAM Brainwave Sensor Module Development Kit Robotics Bangladesh Taurus 4.0 TGAM Brainwave Sensor Module Development Kit Robotics Bangladesh

    Reference: RBD-3055

    Taurus 4.0 TGAM Brainwave Sensor Module Development Kit

    (0)
    Taurus TGAM Brainwave Sensor Module Development Kit with EEG headband and Mindwave headset Captures and analyzes single-channel brainwave signals with precision Includes Bluetooth adapter for seamless wireless connectivity to devices Designed for biofeedback, cognitive research, and interactive control projects Not a medical device – intended for...
    BDT 16,990
    BDT 16,990 tax incl.
    BDT 16,990 tax excl.
    BDT 16,990 tax excl.
    BDT 16,990 tax incl.
    BDT 16,990 tax incl.
    BDT 0 Tax
    BDT 16,990 tax excl.
    BDT 16,990 tax excl.
    BDT 0 Tax
    BDT 16,990 tax incl.
    More Taurus 4.0 TGAM Brainwave Sensor Module Development Kit
    Last items in stock
    In stock: 3
    IR Infrared Receiver Diode - TSOP38238 Robotics Bangladesh

    Reference: RBD-1200

    IR Infrared Receiver Diode - TSOP38238

    (0)
    Very low supply current Photo-detector and preamplifier in one package Internal filter for PCM frequency Improved shielding against EMI Supply voltage: 2.5 V to 5.5 V Improved immunity against ambient light
    BDT 55
    BDT 55 tax incl.
    BDT 55 tax excl.
    BDT 55 tax excl.
    BDT 55 tax incl.
    BDT 55 tax incl.
    BDT 0 Tax
    BDT 55 tax excl.
    BDT 55 tax excl.
    BDT 0 Tax
    BDT 55 tax incl.
    More IR Infrared Receiver Diode - TSOP38238
    In-Stock
    In stock: 183
    HY-SRF05 Ultrasonic Range Finder Module Robotics Bangladesh

    Reference: RBD-2445

    HY-SRF05 Ultrasonic Range Finder Module

    (0)
    High-precision ultrasonic distance measurement up to 450cm (15ft) Operates at 40kHz with ±2mm accuracy for reliable readings ±15° field of view for wide detection coverage 5V operation, compatible with Arduino, Raspberry Pi, and other microcontrollers Enhanced precision compared to HC-SR04 with better stability Ideal for robotics, automation, and obstacle...
    BDT 180
    BDT 180 tax incl.
    BDT 180 tax excl.
    BDT 180 tax excl.
    BDT 180 tax incl.
    BDT 180 tax incl.
    BDT 0 Tax
    BDT 180 tax excl.
    BDT 180 tax excl.
    BDT 0 Tax
    BDT 180 tax incl.
    More HY-SRF05 Ultrasonic Range Finder Module
    In-Stock
    In stock: 10
    Gravity: Analog Water Pressure Sensor Robotics Bangladesh Gravity: Analog Water Pressure Sensor Robotics Bangladesh

    Reference: RBD-3091

    Brand: DFRobot

    Gravity: Analog Water Pressure Sensor

    (0)
    Gravity: Analog Water Pressure Sensor with 0–1.6MPa range Standard 5V input, 0.5–4.5V linear output for easy Arduino integration Gravity 3-pin interface ensures simple plug-and-play wiring Compatible with Arduino and expansion shields for quick prototyping IP68 waterproof design for reliable indoor and outdoor applications Ideal for smart homes, IoT,...
    BDT 4,225
    BDT 4,225 tax incl.
    BDT 4,225 tax excl.
    BDT 4,225 tax excl.
    BDT 4,225 tax incl.
    BDT 4,225 tax incl.
    BDT 0 Tax
    BDT 4,225 tax excl.
    BDT 4,225 tax excl.
    BDT 0 Tax
    BDT 4,225 tax incl.
    More Gravity: Analog Water Pressure Sensor
    In-Stock
    In stock: 5
    Out-of-Stock RPLIDAR A2M12 - 360 Degree LiDAR Laser Range Scanner (12-16m) Robotics Bangladesh RPLIDAR A2M12 - 360 Degree LiDAR Laser Range Scanner (12-16m) Robotics Bangladesh

    Reference: RBD-3936

    Brand: DFRobot

    RPLIDAR A2M12 - 360 Degree LiDAR Laser Range Scanner (12-16m)

    (0)
    Compact 360-degree LiDAR scanner with 4cm thickness, 16m range, quiet brushless motor, and advanced OPTMAG technology for long-lasting performance. Ideal for robots.
    BDT 39,900
    BDT 39,900 tax incl.
    BDT 39,900 tax excl.
    BDT 39,900 tax excl.
    BDT 39,900 tax incl.
    BDT 39,900 tax incl.
    BDT 0 Tax
    BDT 39,900 tax excl.
    BDT 39,900 tax excl.
    BDT 0 Tax
    BDT 39,900 tax incl.
    More RPLIDAR A2M12 - 360 Degree LiDAR Laser Range Scanner (12-16m)
    Out-of-Stock
    In stock: 0

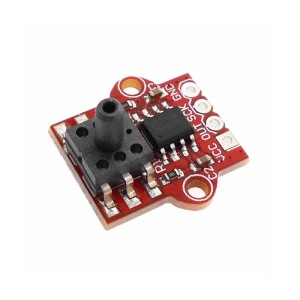

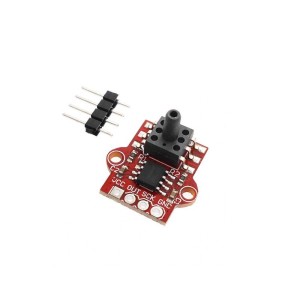

    HX710B Air Pressure Sensor (0-40Kpa) Robotics Bangladesh HX710B Air Pressure Sensor (0-40Kpa) Robotics Bangladesh
