The device works with 3.3 V, to connect with a device working with higher voltage we recommend using a voltage converter.

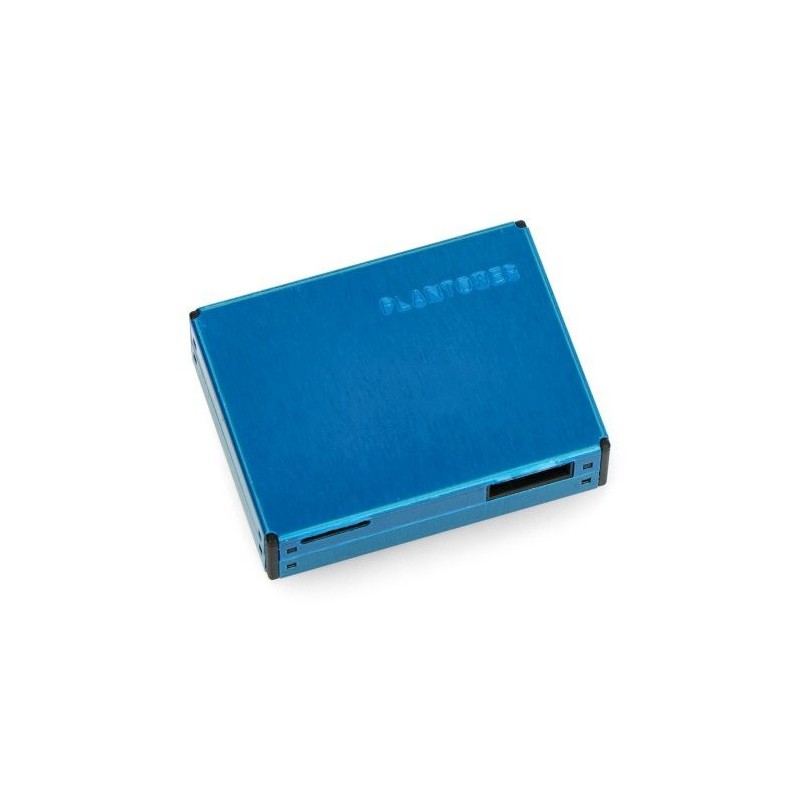

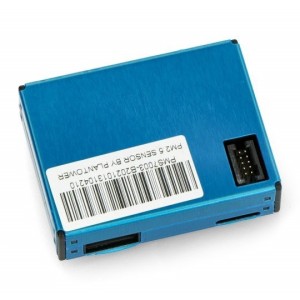

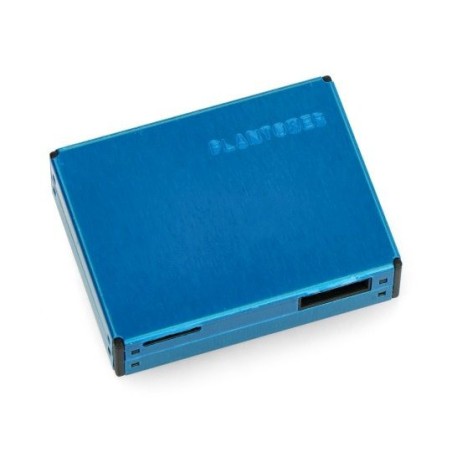

The PMS7003 Dust/Air Purity Sensor is a high-precision laser-based particulate matter (PM) detector capable of measuring PM1.0, PM2.5, and PM10 concentrations in real time. Using advanced laser light scattering and Mie solution theory, it accurately detects particles as small as 0.3 µm, making it perfect for monitoring smoke, dust, and vehicle exhaust. The module operates on 3.3V UART logic and comes with a MicroUSB adapter, simplifying integration with microcontrollers such as Arduino, Raspberry Pi, and ESP32. With low power consumption, fast response, and a compact form factor, the PMS7003 is an ideal solution for air quality monitoring systems, IoT devices, and smart home environments. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
High Accuracy: Laser-based measurement with 98% precision for particles ≥0.5 µm.
Multi-Range Detection: Monitors PM1.0, PM2.5, and PM10 concentrations simultaneously.
Compact Design: Space-efficient 48 × 37 × 12 mm form factor for embedded projects.
Low Power Operation: Consumes under 100 mA in active mode and 200 µA in idle state.
Fast Response Time: Delivers accurate readings within 10 seconds.
Stable Output: Built-in fan ensures consistent airflow for reliable detection.
UART Communication: Simple serial interface compatible with 3.3V logic microcontrollers.
Plug-and-Play Adapter: Includes IDC 10-pin to MicroUSB adapter for easy wiring.
Wide Environmental Range: Operates reliably between -10°C to +60°C.
IoT & Automation Ready: Ideal for integration into connected environmental monitoring systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Air Quality Monitors: Used in smart indoor and outdoor air detection devices.
Environmental Analysis: Suitable for pollution tracking and scientific data collection.
HVAC and Purification Systems: Provides real-time particulate data for smart control.
IoT Projects: Integrates easily with cloud-based or Wi-Fi-enabled devices.
Health and Safety Devices: Measures pollution exposure levels in smart wearables and stations.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | PMS7003 |
| Measurement Type | PM1.0, PM2.5, PM10 |
| Measurement Method | Laser scattering and Mie theory |
| Operating Voltage | 5V (3.3V logic level) |
| Current Consumption | 100 mA (active), 200 µA (idle) |
| Sensitivity | 50% @ 0.3 µm; 98% @ ≥0.5 µm |
| Measuring Range | 0.3–10 µm |
| Response Time | <10 seconds |
| Communication Interface | UART (3.3V logic) |
| Operating Temperature | -10°C to +60°C |
| Dimensions | 48 × 37 × 12 mm |
| Weight | 27 g |
| Adapter Board | IDC 10-pin to MicroUSB adapter included |
| Applications | Air monitoring, smart home, IoT, HVAC |
| Shipment Weight | 0.0028 kg |
| Shipment Dimensions | 5 × 4 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
| Pin | Description |
|---|
| Pin 1 | VCC - Power supply (5V). |
| Pin 2 | VCC - Power supply (5V). |
| Pin 3 | GND - Ground. |
| Pin 4 | GND - Ground. |
| Pin 5 | RESET - Resets the module, operates at 3.3V logic. |
| Pin 6 | NC - Not connected. |
| Pin 7 | RX - UART receiver, operates at 3.3V logic. |
| Pin 8 | NC - Not connected. |
| Pin 9 | TX - UART transmitter, operates at 3.3V logic. |
| Pin 10 | SET - Sleep mode activation, operates at 3.3V logic.
|
Package Includes:
1 x Dust/Air Purity Sensor PM1.0/PM2.5/PM10 - PMS7003 - 3.3V UART
