FNIRSI 2C53T Handheld 3-in-1 Oscilloscope: 50MHz Bandwidth, 250MS/s, Multimeter & DDS Signal Generator

Reference RBD-3436

All-in-One Design: Combines a dual-channel oscilloscope, true RMS multimeter, and 13-waveform DDS signal generator.
50MHz Bandwidth & 250MSa/s Sampling Rate: High-speed 2-channel oscilloscope with cursor and math operations, XY/persistence modes, and waveform saving/export.
4.5-Digit Multimeter (19999 Counts): Measures AC/DC voltage & current, resistance, capacitance, diode, continuity, and temperature.
Built-in 13-Form Signal Generator: Outputs up to 50kHz, customizable amplitude and duty cycle for test signals.
Compact & Portable: Powered by a 3000mAh rechargeable battery with 6-hour standby, 2.8” HD color screen, and USB-C charging.
Enhanced User Interface: Waveform screenshot, cursor measurement, math functions, PC connectivity, and multi-language support.

Description
Product Details

Description

The FNIRSI 2C53T is a compact and powerful 3-in-1 lab instrument that integrates a dual-channel oscilloscope, true RMS multimeter, and DDS signal generator into one handheld device. It features a 50MHz analog bandwidth, 250MSa/s real-time sampling rate, and waveform storage/export capabilities, making it a reliable tool for electronics professionals and enthusiasts alike. With support for math operations, XY mode, cursor measurement, and afterglow persistence, it offers advanced signal analysis functionality. The multimeter supports a full suite of measurements including voltage, current, resistance, capacitance, temperature, diode, and continuity testing. Additionally, the 13-waveform signal generator allows for precise output control in testing and development scenarios. Powered by a 3000mAh battery with up to 6 hours of operation and equipped with a 2.8-inch color LCD display, the FNIRSI 2C53T is the ultimate all-in-one solution for portable diagnostics, development, and testing. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Triple Functionality: Oscilloscope + Multimeter + DDS Signal Generator in one unit.
Dual Channel Oscilloscope: 50MHz bandwidth, 250MSa/s sampling rate, 1Kpts storage depth.
Advanced Oscilloscope Features: Supports math functions, cursor measurement, XY mode, persistence mode, and waveform screenshots.
DDS Signal Generator: Outputs 13 types of waveforms with adjustable frequency (0-50kHz), amplitude, and duty cycle.

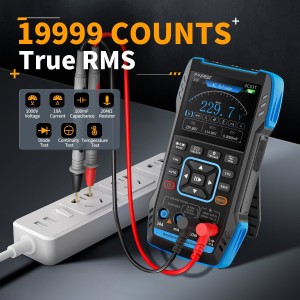

High-Accuracy Multimeter: 4.5-digit, 19999 count true RMS with full range of voltage, current, resistance, and capacitance.
Wide Voltage Handling: Can measure up to ±400V in oscilloscope mode and 1000V in multimeter mode.
Color LCD Display: 2.8-inch 320x240 IPS screen for crystal-clear waveform and measurement visualization.
Long Battery Life: Built-in 3000mAh Li-ion battery provides up to 6 hours of standby time.
USB-C Interface: For fast charging and waveform export via PC.
Compact & Portable: Lightweight, durable, and ideal for field technicians, educators, and electronics enthusiasts.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Electronics Repair & Diagnostics: Ideal for troubleshooting circuits and signals.
Embedded System Testing: Analyze waveforms and debug Arduino, ESP32, STM32 projects.
Field Service & Portable Use: Battery-powered, lightweight solution for on-site electronics analysis.
Educational Use: Suitable for labs, universities, and training institutes for hands-on learning.
Prototyping & Development: Analyze outputs, test components, and simulate input signals with the signal generator.
Industrial Equipment Testing: Diagnose PLC systems, motors, sensors, and more.
Signal Simulation: Generate waveforms for circuit response testing and timing analysis.
Sensor Calibration: Use signal output and oscilloscope features for sensor testing and adjustment.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Brand / Model	FNIRSI 2C53T
Display	2.8 inch 320x240 IPS LCD
Functionality	Oscilloscope, Multimeter, Signal Generator
Oscilloscope Bandwidth	50 MHz (dual channel)
Sample Rate	250 MSa/s
Storage Depth	1 Kpts
Voltage Range (Oscilloscope)	±400V
Vertical Sensitivity	10mV/div to 10V/div
Math / Cursor / XY / Persistence	Supported
Waveform Save/Export	Yes (via USB Type-C)
Multimeter Voltage	DC: 0–1000V, AC: 0–750V
Multimeter Current	DC/AC: up to 9.999A
Resistance / Capacitance	Up to 19.99MΩ / 99.99mF
Continuity / Diode Test	Yes
Temperature Measurement	-551300°C / -672372℉
Signal Generator Output	0–50kHz, 13 waveforms
Power Supply	3000mAh Li-ion battery, USB-C 5V/1A charging
Battery Life	Up to 6 hours (standby)
Dimensions	167 × 89 × 35 mm
Weight (Net)	~345g
Shipment Weight	0.830 kg
Shipment Dimensions (cm)	22 × 14 × 10 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

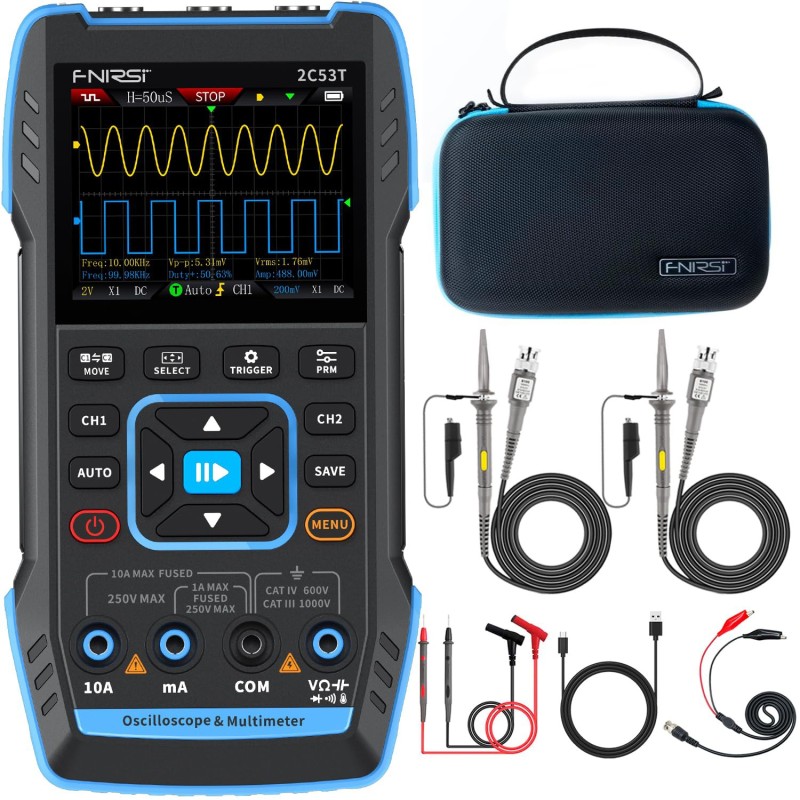

1 x FNIRSI® 2C53T 50MHz 250MS/s Handheld 3in1 Oscilloscope Multimeter Signal Generator
