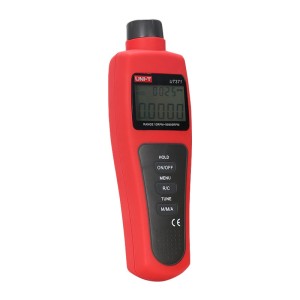

The UNI-T UT372 Tachometer is a reliable and efficient non-contact digital tachometer designed for measuring the rotational speed of shafts or disks. Equipped with a laser and reflective tape, it ensures accurate RPM or count measurements without disrupting equipment operation. The 5-digit LCD screen offers clear dual display of RPM/count and time settings, while the device supports various modes such as MAX/MIN/AVG and data hold. With adjustable sampling rates, a low power consumption design, and continuous 40-hour operation, the UT372 is an ideal tool for professionals in maintenance, diagnostics, and production settings. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Non-Contact Operation: Utilizes a point laser and reflective tape for safe and precise measurements.
- Multi-Mode Support: Offers MAX/MIN/AVG, clock, and time settings for comprehensive analysis.
- Wide Measurement Range: Accurately measures speeds from 10 RPM to 99,999 RPM.
- Dual Display Capability: 5-digit LCD screen provides simultaneous RPM/count and time readouts.
- Adjustable Sampling Rate: Allows customization from 0.5 to 255 seconds.
- Power-Efficient Design: Continuous operation for up to 40 hours on a single charge.
- USB Interface: Enables easy data transfer for advanced analysis.
- Laser Pointer Control: Optional laser pointer for focused measurements.
- Auto Power-Off Feature: Saves energy with a cancelable auto power-off function.
- Compact and Durable: Lightweight, ergonomic design for ease of use and transport.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Industrial Maintenance: Measure RPM of machinery for diagnostics and performance checks.
- Automotive Testing: Analyze engine and vehicle component speeds.
- Manufacturing Quality Control: Monitor rotational components in production lines.
- Research and Development: Perform precise measurements in experimental setups.
- DIY Projects: Ideal for hobbyists and robotics enthusiasts.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Display Count | 100,000 |
| RPM Range 1 | 10–99 RPM (±0.03%) |
| RPM Range 2 | 100–999 RPM (±0.04%+2) |
| RPM Range 3 | 1,000–9,999 RPM (±0.04%+2) |
| RPM Range 4 | 10,000–99,999 RPM (±0.04%+2) |
| Counts Range | 0–99,999 |
| Target Distance | 50mm–200mm |
| Max Input Frequency | 10kHz |
| Power Supply | Continuous work for 40 hours |
| Low Battery Indication | ≤4.8V |
| USB Interface | Yes |
| Auto Power Off | Yes, around 15 minutes (cancelable) |
| Shipment Weight | 0.350kg |
| Shipment Dimensions | 30 x 14 x 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x UNI-T UT372 Tachometers
