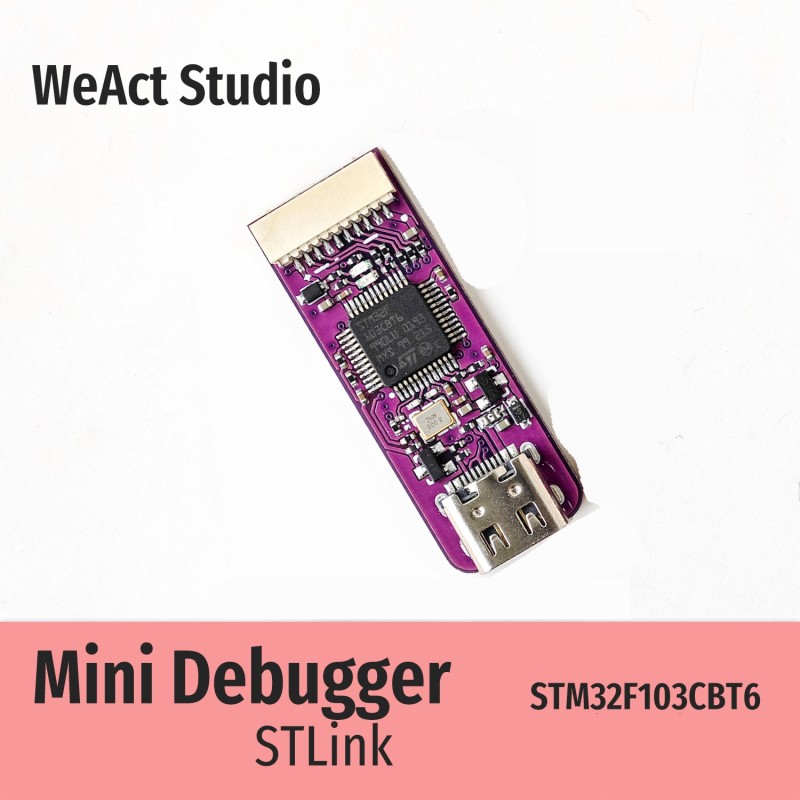

    WeAct Studio Mini Debugger – STLink (SWD / SWO / NRST / USB-UART)

    RBD-4190

    The WeAct Studio Mini STLink Debugger is a compact and reliable ST-Link compatible programmer and debugger designed for ARM Cortex-M microcontrollers. It supports SWD debugging, SWO trace output, NRST reset control, and USB-to-UART, making it a powerful all-in-one tool for embedded development.

    BDT 899
    BDT 899 BDT 899 BDT 899 BDT 899
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 899 Tax excluded
    BDT 899 Tax included
    BDT 0 Tax
    BDT 899 Tax excluded
    BDT 0 Tax
    BDT 899 Tax included
    Quantity
    10 Items

    10 items in stock
    Description

    Description

    The WeAct Studio Mini STLink Debugger is a compact and reliable ST-Link compatible programmer and debugger designed for ARM Cortex-M microcontrollers. It supports SWD debugging, SWO trace output, NRST reset control, and USB-to-UART, making it a powerful all-in-one tool for embedded development.

    This mini STLink uses STM32F103CBT6 as the main controller and is fully compatible with common development environments such as STM32CubeIDE, Keil, IAR, OpenOCD, and PlatformIO. Its small size makes it ideal for portable debugging, lab work, and field use.

    Powered directly from USB, the board also provides 3.3V and 5V output, allowing it to power target boards during programming and debugging.


    Key Features

    • STLink Debugger Only (no DAPLink)

    • Supports SWD / SWO / NRST

    • Built-in USB-to-UART for serial communication

    • Based on STM32F103CBT6

    • Compatible with STM32 and APM32 target MCUs

    • USB powered, no external power required

    • 3.3V & 5V output support

    • Compact and lightweight design


    Technical Specifications

    • Main Controller: STM32F103CBT6

    • Debug Interface: SWD, SWO, NRST

    • Serial Interface: USB-UART

    • Output Voltage: 5V / 3.3V

    • 3.3V Output Current: up to 150mA

    • Board Size: 36.6mm × 13.5mm


    Package Contents

    • 1 × WeAct Studio Mini STLink Debugger

    • 1 × SH1.0-10P to 2.54mm Dupont Cable

    • 1 × Velcro Strap


    Typical Applications

    • STM32 firmware flashing and debugging

    • SWD real-time debugging and SWO trace

    • USB-to-UART serial monitoring

    • Embedded system development and testing
