HNANO Auto Bootloader Programmer Arduino Nano / Pro Mini / Leonardo Bootloader Burner

Name: HNANO Auto Bootloader Programmer Arduino Nano / Pro Mini / Leonardo Bootloader Burner
Brand: RoboticsBD
SKU: RBD-3908
Price: 650 BDT
Availability: InStock

Reference RBD-3908

The HNANO USB Bootloader Programmer is a plug-and-play tool for burning Arduino Nano, Pro Mini, and Leonardo bootloaders to new AVR microcontrollers — no PC, IDE, or software required.
It auto-detects the target chip and flashes the correct bootloader automatically, making it ideal for DIY production, board testing, or repair.

This device only writes bootloaders; it cannot upload user code.

Description
Product Details

Description

This device only writes bootloaders; it cannot upload user code.

Features

Fully automatic offline bootloader programming
Supports: ATmega328P / 328PB / 32U4 / 168A / 168PA
Burns: Nano, Leonardo, Pro Mini 5 V 16 MHz bootloaders
Identifies chip type and selects the right firmware automatically

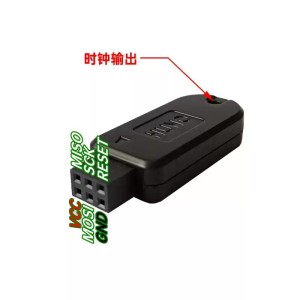

6-Pin ICSP interface (MISO, MOSI, SCK, RESET, VCC, GND)
Dual LED indicators for progress and completion
Compact and reliable hardware design (33.3 × 15.5 × 7.8 mm)

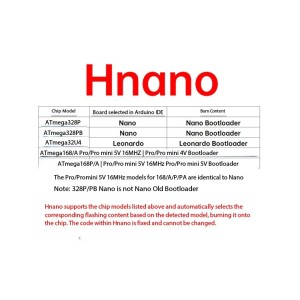

Supported Chips & Bootloaders

Chip Model	Board Selected in Arduino IDE	Burn Content
ATmega328P / 328PB	Nano	Nano Bootloader
ATmega32U4	Leonardo	Leonardo Bootloader
ATmega168A / P / PA	Pro Mini 5 V 16 MHz	Pro Mini 5 V Bootloader

Note: The 328P/PB Nano uses the new Nano bootloader, not the Old Bootloader.

Compatibility

Arduino Nano, Pro Mini 5 V 16 MHz, Leonardo, and compatible AVR boards.

Product Details

Reference RBD-3908

In stock 5 Items

Specific References

EAN13: 3908
