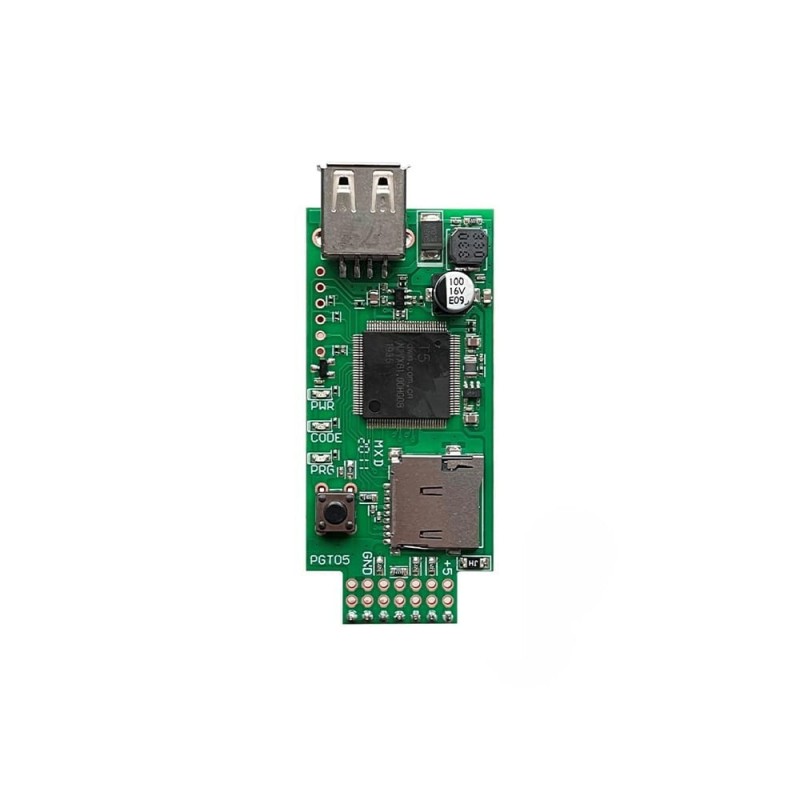

DWIN PGT05 JTAG Burner

The DWIN PGT05 JTAG Burner is a reliable and efficient programmer designed for burning and debugging microcontrollers. Featuring a JTAG interface with USB connectivity, it provides fast and stable programming performance across a wide range of supported devices. Its compact and user-friendly design makes it suitable for both professional developers and beginners, streamlining the microcontroller programming process.

Equipped with advanced programming algorithms and built-in protection features, the PGT05 ensures accurate and safe programming, reducing the risk of damage to your target device. Its support for kernel file updates via TF card adds further flexibility, making it an indispensable tool for embedded system development.

Specifications

• Versatile JTAG burner tool with USB interface

• Fast and efficient programming capability

• Advanced programming algorithms for reliable and accurate operation

• Built-in protection to prevent device damage during programming

• Compact and user-friendly design for ease of use

• Affordable, making it ideal for both beginners and professionals

• Streamlined process for microcontroller programming and debugging

Interface Pinout

• VCC: Power input

• TMS: Mode selection

• TCK: Clock

• TDI: Data input

• TDO: Data output

• GND: Ground (x2)

Indicators and Buttons

• PRG: Burn start button

• CODE: Burn success indicator

• RWR: Burning status light

• PWR: Power indicator

Kernel Burning Process

1. Connect a 5V power supply and align the burner pins with the programming hole.
   For screens with high backlight power consumption, disconnect the backlight to avoid power issues.

2. Press the burn start button (PRG).

   • If burning is successful, the CODE indicator lights up.

   • If unsuccessful, the RWR status light stops flashing but the success indicator does not light up—check connections and retry.

Kernel Update Process

1. Copy the kernel file to the DWIN_SET folder in the root directory of a TF card.

   • File name must be T5UIC1V10.BIN.

2. Insert the TF card into the burner’s slot.

3. Power on with 5V supply.

   • After ~2 seconds, the status light (RWR) flashes once and the success indicator (CODE) lights up, completing the update.

   • If only the status light flashes, the update failed—recheck and retry.

Download Datasheet (DWIN PGT05 JTAG 7 Pin Burner/Adapter Board):
https://drive.google.com/file/d/13UcmsYwFpddAfQX8WHKNo-WSRGUlR0fr/view?usp=sharing
