The STLINK-V3MINIE In-Circuit Debugger and Programmer is a compact, portable, and high-performance tool designed for STM32 microcontrollers. It provides robust debugging and programming capabilities via JTAG/SWD interfaces, ensuring seamless communication with target devices. Additionally, it features a virtual COM port that enables host PCs to connect through UART for convenient data exchange. Its lightweight design makes it easy to carry for on-site development or educational purposes. With the included adapter kit, developers can quickly integrate the STLINK-V3MINIE into various STM32-based projects, making it a versatile solution for firmware programming, debugging, and testing. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Compact Design – Small, portable form factor for convenient use in any workspace.
Multiple Interfaces – Supports JTAG/SWD protocols for STM32 debugging and programming.
Virtual COM Port – Provides UART communication between the host PC and microcontroller.
Adapter Kit Included – Ensures easy connectivity with a wide range of STM32 devices.
High Reliability – Ensures stable and efficient debugging for STM32 development.
Developer Friendly – Perfect for embedded engineers, students, and professionals.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
STM32 firmware development and debugging.
Programming STM32 microcontrollers in embedded projects.
Educational labs for microcontroller learning.
Prototyping and testing of STM32-based designs.
Debugging communication and interface-related issues in STM32 systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Product Model | STLINK-V3MINIE |
| Supported MCU | STM32 Microcontrollers |
| Interfaces | JTAG, SWD, UART (via Virtual COM) |
| Connectivity | USB to Host PC |
| Included Accessories | Adapter Kit |
| Use Case | Debugging, Programming, Data Communication |
| Portability | Lightweight, Pocket-Sized |
| Shipment Weight | 0.0592 kg |
| Shipment Dimensions | 10 × 8 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
STLINK-V3MINIE
STM32 Debugger/Programmer
Based On Arm Cortex-M STM32 32-Bit Microcontroller
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Interface Introduction
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Software Support
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Hardware Support
Support All STM32 Series MCUs With JTAG / SWD Interfaces
for reference only, STM32 MCU is not included.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
STLINK Series Selection Guide
| ITEM | V3MINIE | V3SET | V2 |
|---|
| JTAG/SWD APPLICATION VOLTAGE | 1.65V~3.6V① | 3V~3.6V | 1.65V~3.6V① |
|---|
| SWIM APPLICATION VOLTAGE | N/A | 1.65V~5.5V | 1.65V~5.5V |
|---|
| SWV SUPPORT | YES② |
|---|
| DEBUG INTERFACE | multi | multi③ | 2 |
|---|
| LED INDICATOR | two colors④ |
|---|
① ST-LINK/V2 and STLINK-V3MINIE support STM32 low-power devices.
② Only available for STM32 at present.
③ STLINK-V3SET features GPIO port besides the programming port.
④ Two colors LED indicates both power and communication. |
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Connection Example
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
What's On Board
- USB Type-C connector
- Power LED indicator pad (LED is not soldered here)
- STM32F723 MCU
- BTB (board-to-board) card edge connector pads
- STDC14 debug connector
- COM LED Indicator
- The LED is blinking red: the first USB enumeration with the PC is taking place.
- The LED is red: the communication between the PC and STLINK-V3MINIE is established.(end of enumeration).
- The LED is blinking green/red: data are being exchanged between the target and the PC.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Outline Dimensions
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Resources & Services
Wiki: www.waveshare.com/wiki/STLINK-V3MINIE
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:

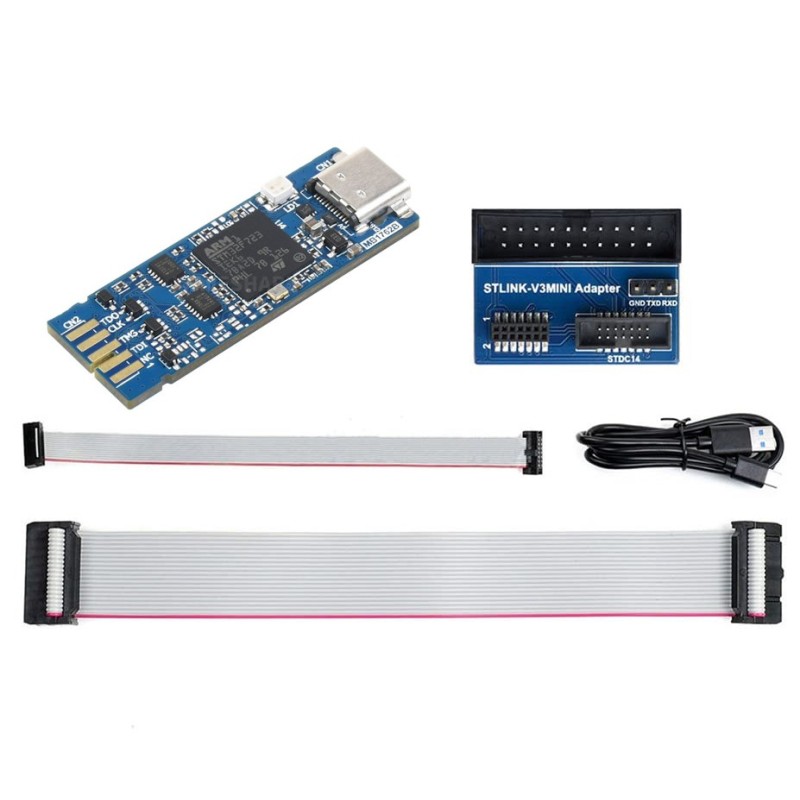

1 x STLINK-V3MINIE In-Circuit Debugger And Programmer For STM32 with Adapter Kit
