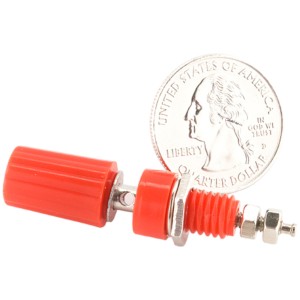

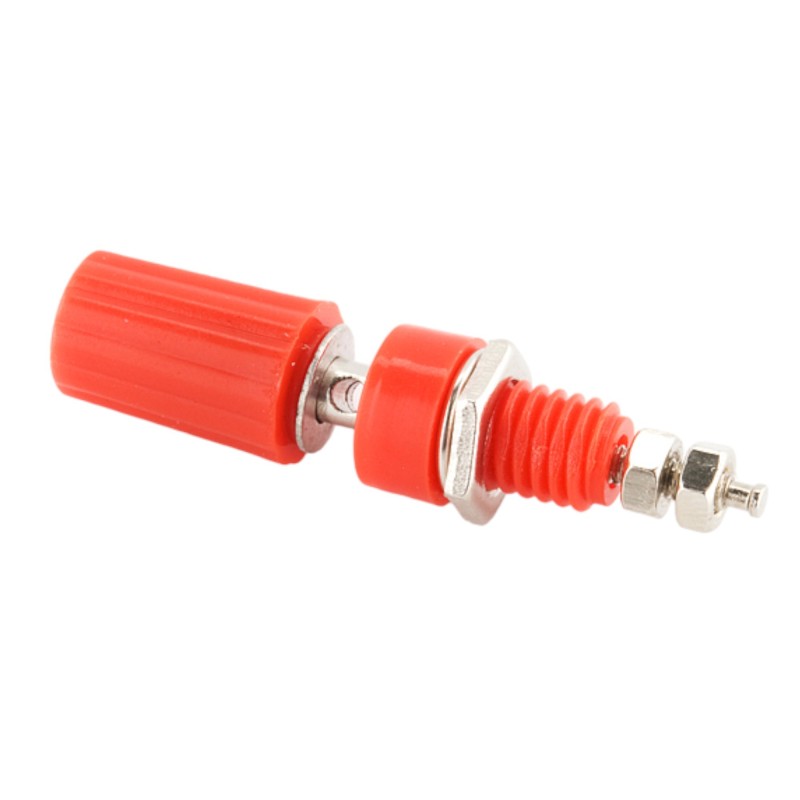

This red insulated panel mount banana jack is a valuable component for creating secure and convenient connections in your electronic projects. It features a top port that accepts standard banana plugs and can also clamp onto bare wires for versatility. Additionally, the bottom portion of the jack allows for soldering or attaching small ring terminals, providing you with multiple connection options.
This compact jack measures 44mm (1.73") in total length and integrates easily into project enclosures. The red insulation offers a professional aesthetic and complements various color schemes in your projects. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Accepts Multiple Connectors: Works with banana plugs, spade terminals, bare wire, and soldering for flexibility.
- Compact Design: Fits well into space-constrained project enclosures.
- Red Insulation: Provides a professional look and blends with different color schemes.
- Secure Connections: Ensures reliable connections for your electronic circuits.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Creating test fixtures for electronics troubleshooting and development.
- Building custom power supplies with user-friendly connections.
- Integrating banana plug connections into various electronic projects.
- Establishing secure and versatile connections for wires and components.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Connection Type (Top) | Banana plug, Spade terminal, Clamp on bare wire |
| Connection Type (Bottom) | Solder, Small ring terminal |
| Wire Gauge Range | 30 - 14 AWG |
| Dimensions (Total Length) | 44mm (1.73") |
| Dimensions (Length above Panel) | 23mm (0.91") |
| Dimensions (Length below Panel) | 21mm (0.83") |
| Dimensions (Width at Base) | 11mm (0.43") |
| Material | Not specified (check with supplier) |
| Thread Type | Plastic |
| Warranty | Not specified (check with supplier) |
| Shipment Weight | 0.004 kg |
| Shipment Dimensions | 12 x 8 x 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
Package Includes:
1 x Panel Mount Banana Jack - Red
