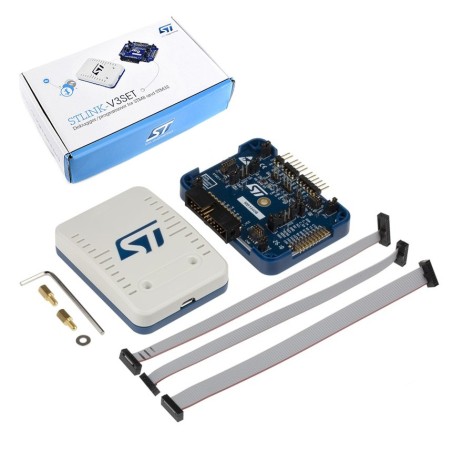

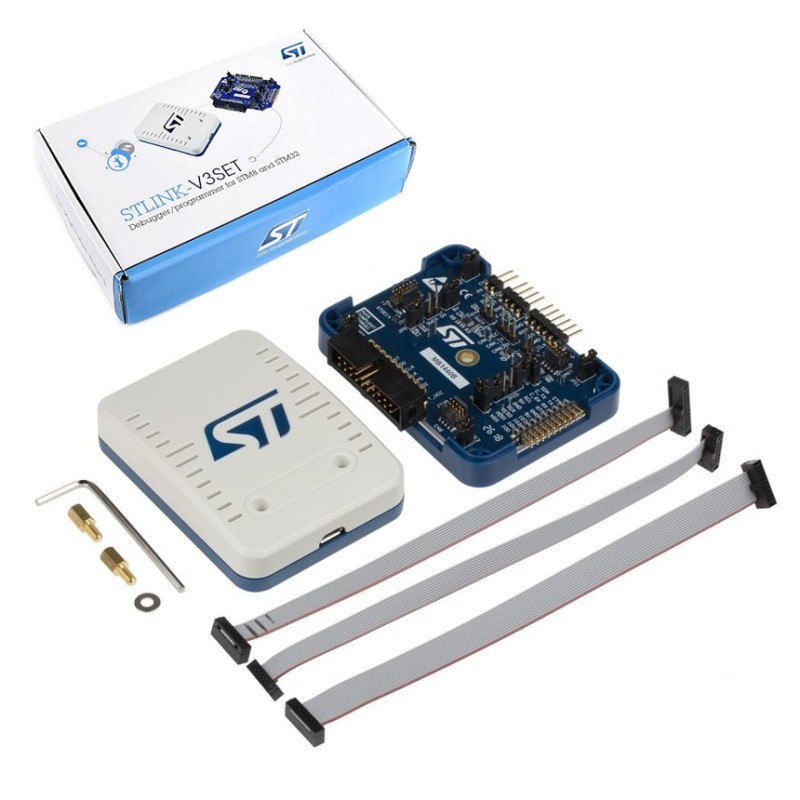

STLINK-V3SET modular in-circuit debugger and programmer for STM32/STM8

Reference RBD-3004

Brand ST Microelectronics

STLINK-V3SET modular in-circuit debugger and programmer for STM8 & STM32 MCUs
Supports SWD, JTAG, and SWIM interfaces for versatile debugging
Includes Virtual COM port and multipath bridge (UART, SPI, I2C, CAN, GPIOs)
Modular design with main probe + adapter board (MB1440)
Drag-and-drop flash programming with DFU firmware update support
Ideal for professional STM32/STM8 development and debugging

Description
Product Details

Description

The STLINK-V3SET is a modular standalone debugging and programming probe designed for STM32 and STM8 microcontrollers. It consists of a main module and an optional adapter board (MB1440), providing expanded connectivity and flexibility. Supporting SWIM, SWD, and JTAG interfaces, the V3SET enables developers to program and debug a wide range of STM8 and STM32 devices. In addition to its primary debugging functions, it features a Virtual COM port (VCP) for UART communication and multipath bridge interfaces (SPI, I2C, CAN, GPIOs) for advanced debugging and bootloader programming. With firmware upgrade support, drag-and-drop flash programming, and USB 2.0 high-speed compatibility, the STLINK-V3SET offers a robust, future-proof solution. Compact and modular, it is a professional-grade tool ideal for embedded engineers and developers working on STM microcontrollers. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Modular Architecture – Includes main probe and optional adapter board (MB1440).
Multiple Debug Interfaces – Supports SWIM, JTAG, SWD, and SWV communication.
Virtual COM Port – Provides UART communication with host PC, up to 15MHz.
Multipath Bridge – USB-to-SPI, UART, I2C, CAN, and GPIO connections.
Drag-and-Drop Flash Programming – Simplifies binary file programming.
Firmware Upgrade Support – Direct firmware update (DFU) via USB.
Broad Voltage Range – Works with 1.65–5.5V devices, 5V-tolerant inputs.
Professional Use – Reliable for embedded STM32/STM8 development and debugging.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Embedded Development – Debugging STM32 and STM8 applications.
Firmware Programming – Flashing microcontrollers via drag-and-drop or bootloader.
Prototyping & Testing – Reliable tool for electronics labs and engineers.
UART Communication – Use as a virtual COM port for data logging.
Multiprotocol Interface – Bridge to SPI, I2C, CAN, and GPIO for system integration.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Specification	Details
Product Model	STLINK-V3SET
Supported MCUs	STM32, STM8
Interfaces	SWD, JTAG, SWIM, SWV, UART (VCP), SPI, I2C, CAN, GPIOs
Power Supply	USB 2.0 (Micro-B) Self-Powered
Application Voltage	1.65V – 5.5V (with 5V tolerant inputs)
VCP Frequency	Up to 15MHz
Connectors	STDC14, MIPI10, MIPI20 (1.27mm pitch)
Flash Programming	Drag-and-drop binary file programming
LEDs	Two-color LEDs for power and communication status
Operating Temperature	-40°C ~ +85°C
Adapter Board	MB1440 (provides extended SWIM and bridge interfaces)
Shipment Weight	0.0032 kg
Shipment Dimensions	7 × 6 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x STLINK-V3SET modular in-circuit debugger and programmer for STM32/STM8
