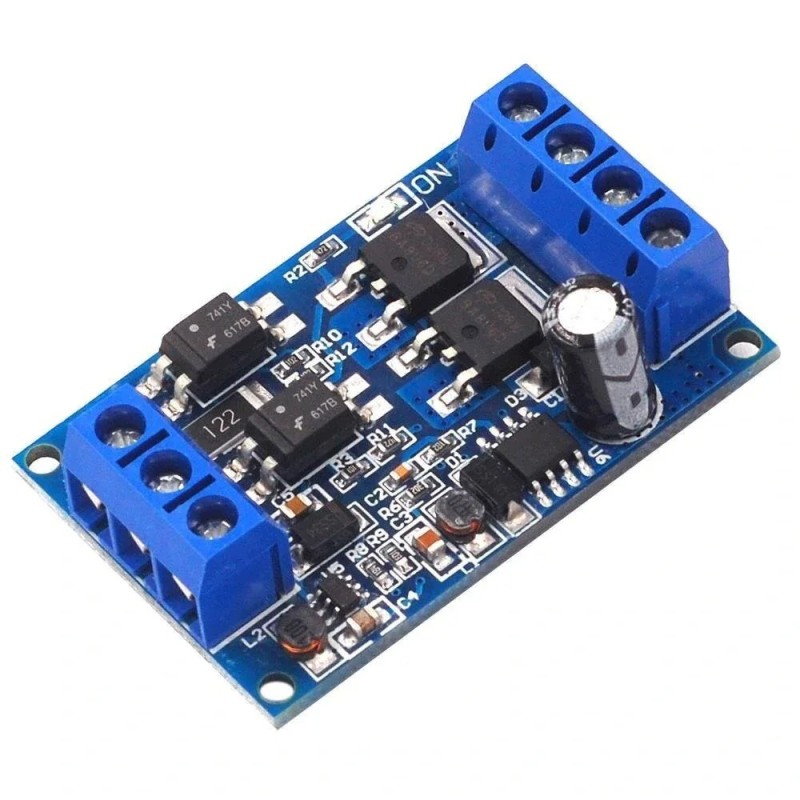

The High Power 600W MOSFET Trigger Switch Driver Module with PWM Regulation is a powerful and versatile control board designed for managing high-power loads with precision. Featuring an input range of DC 4V to 60V and supporting continuous 10A (up to 15A with auxiliary heat dissipation), this module is ideal for driving motors, LED strips, solenoids, and pumps. It supports multiple triggering methods, including high-level, low-level, and PWM signals, making it highly adaptable for different systems such as microcontrollers, PLCs, and DC power supplies. With support for PWM input up to 2.5 kHz, it enables fine motor speed and light brightness control. Its dual MOS parallel active output ensures low resistance and stable high-power performance. Designed for durability, this module offers unlimited switching life and wide application across industrial automation, robotics, and DIY electronics. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
High Power Handling – 600W output, continuous 10A, up to 15A with cooling.
Wide Voltage Support – Operates between DC 4V to 60V.
Multiple Trigger Modes – High-level, low-level, PWM, and switch signal.
PWM Regulation – Supports up to 2.5 kHz for speed/brightness control.
Strong Compatibility – Works with microcontrollers, PLC, and DC supplies.
Durable Design – Unlimited switching life and wide temperature tolerance.
Compact Module – Small form factor (4.6 × 2.9 × 1.5 cm) for easy integration.
Dual MOS Parallel Output – Lower resistance, stable high-current performance.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Motor Control – Speed regulation and switching for DC motors.
LED Lighting – Dimming and on/off control for high-power LED strips.
Automation Systems – Works with solenoids, valves, and pumps.
Industrial Equipment – Power management in automation setups.
DIY Projects – Robotics, smart devices, and custom control systems.
PLC & MCU Integration – Directly interfaces with Arduino, PLC, and single-chip IO.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | High Power 600W MOSFET Trigger Switch Driver |
| Working Voltage | DC 4V – 60V |
| Trigger Methods | High-level (3–24V), Low-level (0–0.6V), PWM, Switch |
| Signal Frequency | 0 – 2.5 kHz |
| Continuous Current | 10A (15A with auxiliary heat dissipation) |
| Power Capacity | 600W |
| Output Voltage Range | DC 4V – 60V |
| Service Life | Unlimited switching |
| Working Temperature | -40°C to +85°C |
| Module Dimensions | 4.6 × 2.9 × 1.5 cm |
| Shipment Weight | 0.0127 kg |
| Shipment Dimensions | 5 × 3 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x High Power 600W MOSFET Trigger Switch Driver Module with PWM Regulation
