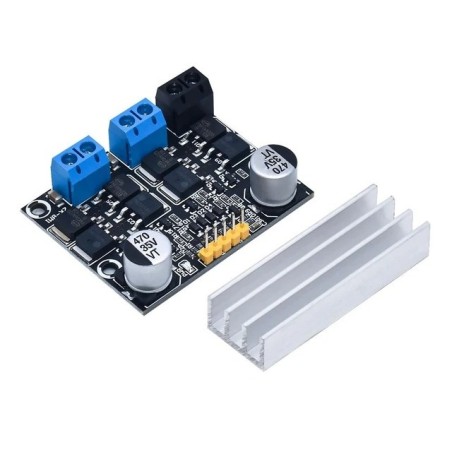

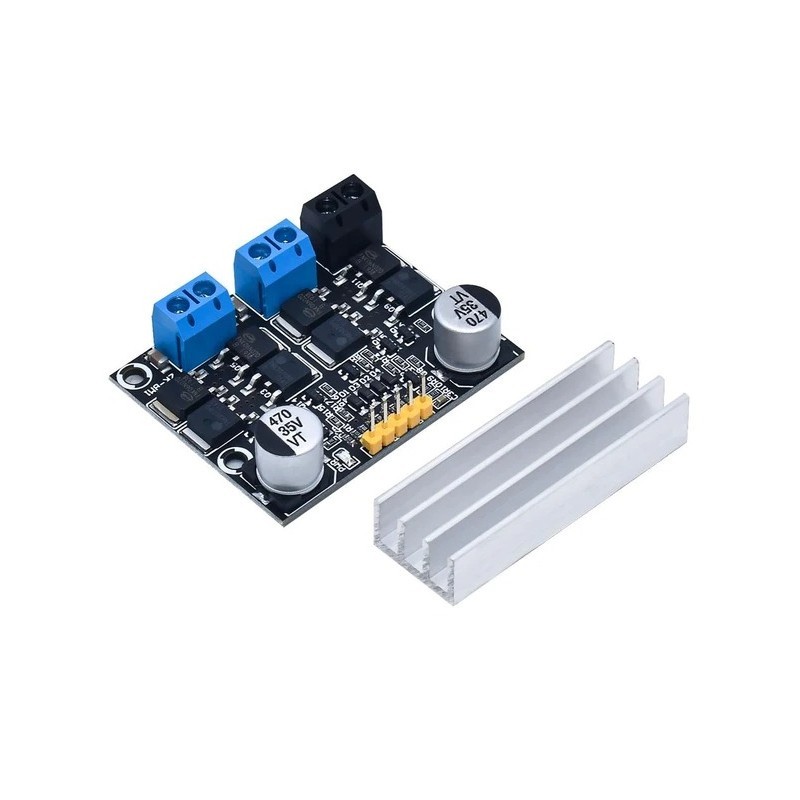

10A Dual DC Motor Drive Module with PWM Speed Regulation

Reference RBD-3144

Dual-channel 10A DC motor driver module with independent control for each motor
Supports PWM speed regulation and forward/reverse direction control
Ideal for robotics, automatic curtains, and motion control systems
Operates between 3V–18V DC, suitable for low-voltage, high-current motors
MOS-based control circuit for efficient and stable performance with low heat generation

Description
Product Details

Description

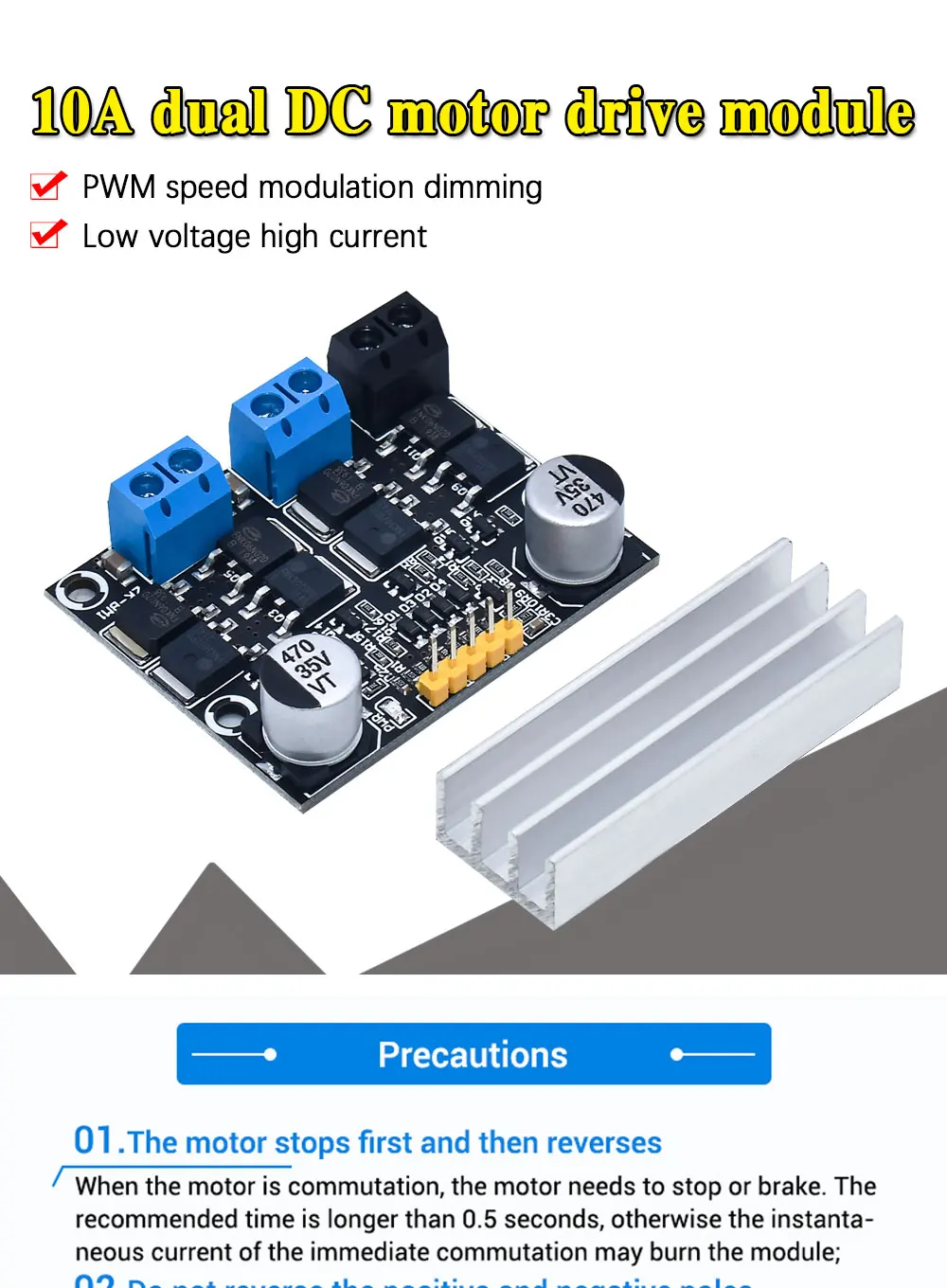

The 10A Dual DC Motor Drive Module with PWM Speed Regulation (ZK-BM1) is a high-efficiency motor control module designed for precise and independent control of two DC motors. Supporting both forward and reverse motion with PWM speed adjustment, it delivers reliable performance in automation and robotics projects. Operating within a wide 3V–18V DC range and capable of handling up to 10A per channel, this module is well-suited for driving motors in automatic curtains, robot arms, conveyors, and motion systems. The MOSFET-based control circuit ensures high efficiency, minimal power loss, and stable operation even under heavy loads, making it a robust choice for developers and hobbyists alike. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Dual-Channel Control: Independently drives two DC motors simultaneously.
PWM Speed Regulation: Smooth speed control using pulse-width modulation.
Forward/Reverse Operation: Provides bidirectional control for each motor.
High Current Capacity: Supports up to 10A per channel for powerful motor applications.
Wide Voltage Range: Operates efficiently from 3V to 18V DC.
Efficient MOSFET Circuit: Ensures stable and energy-efficient operation with low heat.
TTL Compatible: Accepts TTL-level control signals for easy microcontroller integration.
Compact Design: Small size suitable for embedded and mobile applications.
Reliable Protection: Built with short-circuit and overcurrent safety features.
Ideal for Automation: Perfect for curtain motors, robots, and other motion control projects.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Automatic Curtain Systems: Smooth motorized open/close control.
Robotics Projects: Drive wheels, arms, or actuators with precision.
DIY Automation: Power control for conveyor systems or door mechanisms.
Educational Electronics: Ideal for learning DC motor control and PWM regulation.
Embedded Systems: Use in IoT or smart devices requiring bidirectional motor control.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

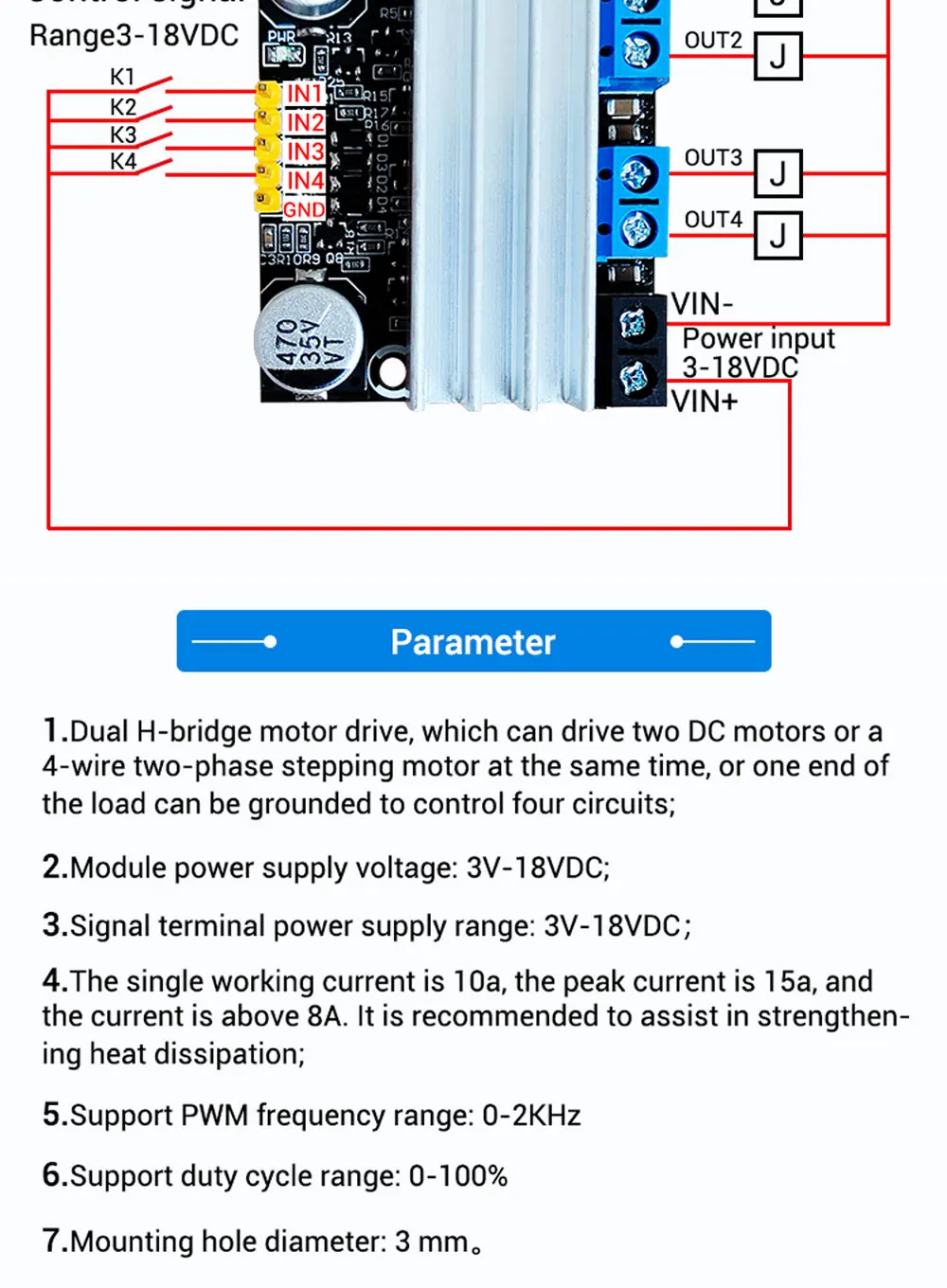

General Specifications
Model	ZK-BM1 Dual DC Motor Drive Module
Operating Voltage	3V – 18V DC
Max Current	10A per channel
Control Method	PWM + TTL level input
Channels	Dual independent channels

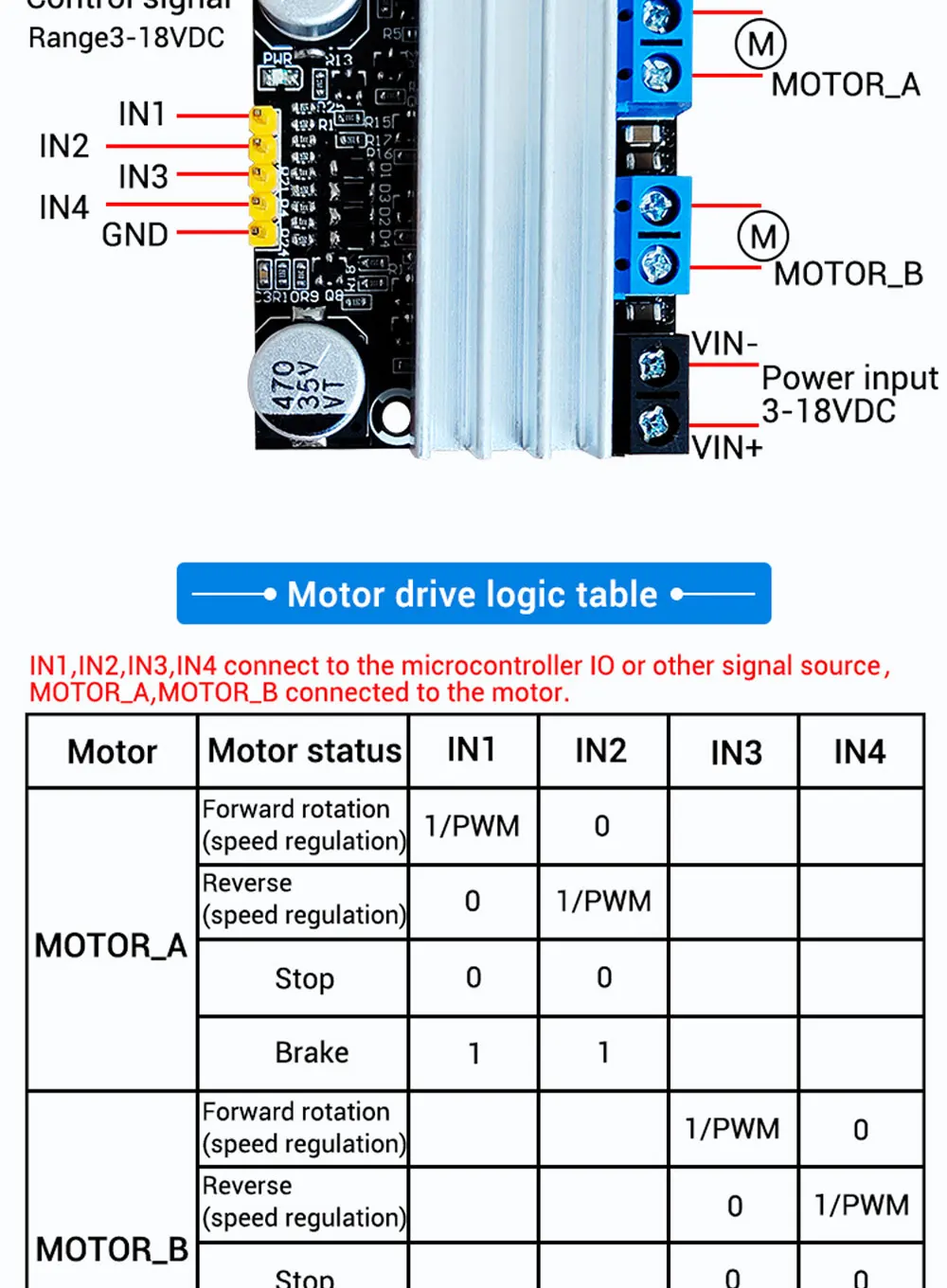

Direction Control	Forward and Reverse
Efficiency	High, MOS-based low-loss design
Protection	Overcurrent and short-circuit protection
Applications	Robotics, automation, motorized systems

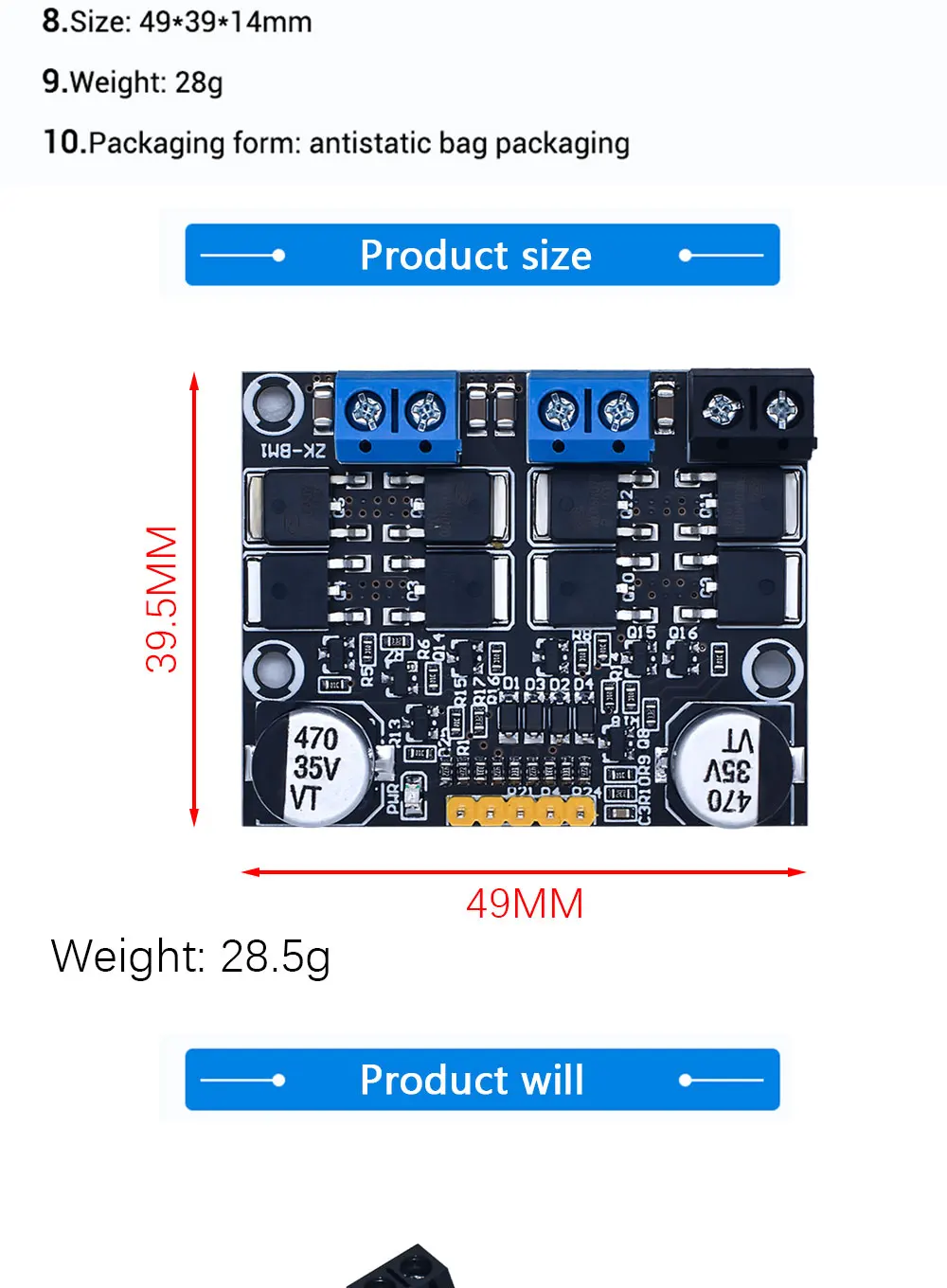

Dimensions	50 × 40 × 20 mm
Shipment Weight	0.0261 kg
Shipment Dimensions	5 × 4 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x 10A Dual DC Motor Drive Module with PWM Speed Regulation

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details

Reference RBD-3144

In stock 20 Items

Specific References

EAN13: 3144

Comments (0)

Grade

No customer reviews for the moment.

16 other products in the same category:

Reference: RBD-3493

1803BK 30W DC Motor PWM Speed Controller

(0)

1803BK DC Motor PWM Speed Controller for precise motor control Wide input range 1.8V–12V DC, supports up to 2A output Smooth speed adjustment from 0% to 100% using PWM Maintains strong torque performance at low speeds Compact 32mm × 32mm module with integrated ON/OFF switch Ideal for DIY robotics, model cars, fans, and small DC motors

BDT 190

BDT 190 tax incl.

BDT 190 tax excl.

BDT 190 tax incl.

BDT 0 Tax

BDT 190 tax excl.

BDT 0 Tax

BDT 190 tax incl.

In-Stock

In stock: 46

Reference: RBD-2369

LSC-6: Hiwonder 6 CH Bluetooth 4.0 Servo Controller Module for Robotics Arm

(0)

High-performance 6-channel servo controller with Bluetooth 4.0 for robotics. Built-in ARM Cortex-M3-based STM32 microcontroller for efficient operation. Supports Android App and PS2 handle control for versatile control options. 16M memory for storing up to 230 action groups with 1020 actions per group. Built-in power switch and over-current protection for...

BDT 5,980

BDT 5,980 tax incl.

BDT 5,980 tax excl.

BDT 5,980 tax incl.

BDT 0 Tax

BDT 5,980 tax excl.

BDT 0 Tax

BDT 5,980 tax incl.

In-Stock

In stock: 9

Reference: RBD-2145

L298P Motor Driver Shield for Arduino

(0)

L298P based Arduino motor driver shield Onboard Buzzer (D4). Onboard Bluetooth interface, you can directly plug, no wiring required. Six Analog interface. Forward, Backward steering indicators

BDT 990

BDT 990 tax incl.

BDT 990 tax excl.

BDT 990 tax incl.

BDT 0 Tax

BDT 990 tax excl.

BDT 0 Tax

BDT 990 tax incl.

In-Stock

In stock: 11

Reference: RBD-4093

DRV2605L Haptic Motor Controller Module – STEMMA QT / Qwiic Compatible

(0)

The DRV2605L is an I2C-controlled haptic motor driver designed for generating precise vibration effects using ERM or LRA motors. It integrates a built-in effects library and supports auto-calibration, making it suitable for haptic feedback in interactive devices, wearables, and embedded systems.

BDT 890

BDT 890 tax incl.

BDT 890 tax excl.

BDT 890 tax incl.

BDT 0 Tax

BDT 890 tax excl.

BDT 0 Tax

BDT 890 tax incl.

Last items in stock

In stock: 1

Reference: RBD-0392

Ardumoto Shield L298P Motor Driver

(0)

L298P based Arduino motor driver shield Forward, Backward steering indicators Can Drive 2 DC Motors Up to 2A of Maximum Current. RoboticsBD

BDT 699

BDT 699 tax incl.

BDT 699 tax excl.

BDT 699 tax incl.

BDT 0 Tax

BDT 699 tax excl.

BDT 0 Tax

BDT 699 tax incl.

In-Stock

In stock: 12

Reference: RBD-2754

L298N 4WD Motor Driver DC Motor Driver Compatible With 3.3V Support Arduino STM32

(0)

L298N-based 4WD motor driver module for multiple DC motors Compatible with Arduino, STM32, 3.3V & 5V microcontrollers Supports wide voltage range from 6V to 24V Provides peak current of up to 2A per channel Built-in LM2596 5V regulator for stable power output Equipped with enable & logic input ports for precise motor control

BDT 895

BDT 895 tax incl.

BDT 895 tax excl.

BDT 895 tax incl.

BDT 0 Tax

BDT 895 tax excl.

BDT 0 Tax

BDT 895 tax incl.

In-Stock

In stock: 57

Reference: RBD-4126

DRV8838 Single Brushed DC Motor Driver Carrier Module

(0)

The DRV8838 Single Brushed DC Motor Driver Carrier is a compact motor control module designed to drive one brushed DC motor with reliable current handling and built in protection features. Based on the TI DRV8838 motor driver IC, this carrier board simplifies the use of the small surface mount chip by presenting it in a standard 10 pin DIP form factor...

BDT 1,600

BDT 1,600 tax incl.

BDT 1,600 tax excl.

BDT 1,600 tax incl.

BDT 0 Tax

BDT 1,600 tax excl.

BDT 0 Tax

BDT 1,600 tax incl.

Last items in stock

In stock: 1

Reference: RBD-1635

Dual Channel Motor Driver Shield For Arduino

(0)

Logic control, 5V from Arduino main board Polarity protection for External motor power input 2 fast test buttons for each motor channel Motor Driven Voltage：6.5 to 12VDC(VIN Power Supply), 5.0 to 26VDC (External Power Source) Up to 2A current each channel Pin 4, 5,6,7 are used to drive two DC motor Support PWM speed control Support advance speed control

BDT 1,399

BDT 1,399 tax incl.

BDT 1,399 tax excl.

BDT 1,399 tax incl.

BDT 0 Tax

BDT 1,399 tax excl.

BDT 0 Tax

BDT 1,399 tax incl.

In-Stock

In stock: 4

Reference: RBD-2209

Servo Motor Controller Driver Board 16 Channels High Accuracy MCU Software

(0)

16 channels PWM servo motor driver controller board module Supports USB interface, TTL serial port, and Bluetooth communication Bluetooth communication can connect to Android phone or PC software Master chip STM32 series, frequency 48MHz Size 43.5x36mmx12mm, operating voltage 5V USB, TTL3.3V, servo motor supply 5-7.2V Channel 16, PWM accuracy 0.1ms

BDT 2,490

BDT 2,490 tax incl.

BDT 2,490 tax excl.

BDT 2,490 tax incl.

BDT 0 Tax

BDT 2,490 tax excl.

BDT 0 Tax

BDT 2,490 tax incl.

Last items in stock

In stock: 2

Reference: RBD-1912

L293D Motor Driver Module

(0)

New L293D motor shield, the input voltage DC4.5-25V 600mA output current capability per channel 1.2A peak output current(non-repetitive) per channel Enable facility Overtemperature protection Logical “0” input voltage up to 1.5V(High noise immunity)

BDT 215

BDT 215 tax incl.

BDT 215 tax excl.

BDT 215 tax incl.

BDT 0 Tax

BDT 215 tax excl.

BDT 0 Tax

BDT 215 tax incl.

In-Stock

In stock: 60

Reference: RBD-0662

EasyDriver Shield Stepper Motor Driver V44 A3967 For Arduino

(0)

Power supply: 7V to 30V. The higher the voltage, the higher the torque at high speeds. Adjustable current control from 150mA/phase to 750mA/phase. Logic voltage: 5V or 3.3V. A3967 microstepping driver. RoboticsBD

BDT 350

BDT 350 tax incl.

BDT 350 tax excl.

BDT 350 tax incl.

BDT 0 Tax

BDT 350 tax excl.

BDT 0 Tax

BDT 350 tax incl.

In-Stock

In stock: 10

Reference: RBD-3471

ESP32 Brushless Motor Driver Board Module 20A Wireless WiFi Bluetooth Simple FOC Retrofit Module

(0)

ESP32 Brushless Motor Driver Board 20A with WiFi & Bluetooth Integrated 3-phase MOSFET driver for BLDC motors Supports advanced FOC (Field-Oriented Control) algorithms Programmable via Arduino, ESP-IDF, and SimpleFOC library Ideal for robotics, IoT actuators, and precision automation Compact retrofit module for smart motor control systems

BDT 2,990

BDT 2,990 tax incl.

BDT 2,990 tax excl.

BDT 2,990 tax incl.

BDT 0 Tax

BDT 2,990 tax excl.

BDT 0 Tax

BDT 2,990 tax incl.

In-Stock

In stock: 5

Reference: RBD-3914

DRV8701 High Power DC Motor Driver Module 7–24V 20A

(0)

The DRV8701 DC Motor Driver Module is a high-efficiency dual-MOSFET H-bridge driver designed for controlling brushed DC motors. It supports a wide input voltage range of 7V to 24V, with a maximum instantaneous current of 20A and a continuous current of up to 10A without a heatsink. Note:This module has no built-in protection circuit. When using, do not...

BDT 1,890

BDT 1,890 tax incl.

BDT 1,890 tax excl.

BDT 1,890 tax incl.

BDT 0 Tax

BDT 1,890 tax excl.

BDT 0 Tax

BDT 1,890 tax incl.

Last items in stock

In stock: 2

Reference: RBD-1606

L297 Stepper Motor Controller IC

(0)

Supply Voltage Range: 4.75V to 7V Driver Case Style: DIP No. of Pins: 20 Operating Temperature Range: -40°C to +150°C

BDT 96

BDT 96 tax incl.

BDT 96 tax excl.

BDT 96 tax incl.

BDT 0 Tax

BDT 96 tax excl.

BDT 0 Tax

BDT 96 tax incl.

In-Stock

In stock: 43

Reference: RBD-0742

Motor Driver 43A BTS7960

(0)

Input voltage(V): 6 – 27. Maximum current(A): 43. Input level(V): 3.3 – 5. Duty cycle: 0 – 100%. Path resistance: 16 mΩ at 25°C. Low quiescent current: 7 µA at 25°C.

BDT 499

BDT 499 tax incl.

BDT 499 tax excl.

BDT 499 tax incl.

BDT 0 Tax

BDT 499 tax excl.

BDT 0 Tax

BDT 499 tax incl.

In-Stock

In stock: 68

Sold-out

Reference: RBD-0267

Big Easy Driver - Stepper Motor Driver

(0)

Bi-polar Microstepping Driver 2A/Phase Max 1.4-1.7A/Phase w/o Heatsink Max Motor Drive Voltage: 30V On-board 5V/3.3V Regulation Low RDS(ON) outputs Automatic current decay mode detection/selection Mixed and Slow current decay modes Synchronous rectification for low power dissipation Internal UVLO Crossover-current protection 3.3 and 5 V compatible logic...

BDT 1,600

BDT 1,600 tax incl.

BDT 1,600 tax excl.

BDT 1,600 tax incl.

BDT 0 Tax

BDT 1,600 tax excl.

BDT 0 Tax

BDT 1,600 tax incl.

Sold-out

In stock: 0

Frequently purchased together
Products from the same category

Reference: RBD-2754

L298N 4WD Motor Driver DC Motor Driver Compatible With 3.3V Support Arduino STM32

(0)

BDT 895

BDT 895 tax incl.

BDT 895 tax excl.

BDT 895 tax incl.

BDT 0 Tax

BDT 895 tax excl.

BDT 0 Tax

BDT 895 tax incl.

In-Stock

In stock: 57

Reference: RBD-0652

Battery 9V

(0)

Constant 9V Output till lasts Metal Jacket Body Good Built Quality and hence Leakproof Easy to install and Replace Corrosion free Connector Point for long-term use 0% Mercury and Cadmium. Environment-friendly OEM Compatible. RoboticsBD

BDT 74

BDT 74 tax incl.

BDT 74 tax excl.

BDT 74 tax incl.

BDT 0 Tax

BDT 74 tax excl.

BDT 0 Tax

BDT 74 tax incl.

In-Stock

In stock: 311

Reference: RBD-1791

M3x12 Flat head Screw (Pack of 5)

(0)

Diameter 3mm and Length 12 (M3 x 12) Phillips Flat Head Machine Screw (Countersunk)

BDT 14

BDT 14 tax incl.

BDT 14 tax excl.

BDT 14 tax incl.

BDT 0 Tax

BDT 14 tax excl.

BDT 0 Tax

BDT 14 tax incl.

In-Stock

In stock: 150

Reference: RBD-1961

Raspberry Pi Compatible 160° FOV 5MP Fisheye Lens Wide Angle Camera Module

(0)

Wide-angle fish-eye lens Manual Adjustable Focus Field of View Angle: 160° Easy to install and Use Useful for real-time Photography and Videos

BDT 1,490

BDT 1,490 tax incl.

BDT 1,490 tax excl.

BDT 1,490 tax incl.

BDT 0 Tax

BDT 1,490 tax excl.

BDT 0 Tax

BDT 1,490 tax incl.

In-Stock

In stock: 12

- BDT 5 Reduced price

Reference: RBD-1996

M3x10 Round head Screw (Pack of 5)

(0)

Diameter 3mm and Length 10 (M3 x 10) Round Machine Screw (Countersunk)

BDT 10 BDT 15

BDT 15 BDT 10 tax incl.

BDT 15 BDT 10 tax excl.

BDT 15 BDT 10 tax incl.

BDT 0 BDT 0 Tax

BDT 15 BDT 10 tax excl.

BDT 0 BDT 0 Tax

BDT 15 BDT 10 tax incl.

In-Stock

In stock: 1047

- BDT 5 Reduced price

Reference: RBD-2011

M3x8 Round head Screw (Pack of 5)

(0)

Diameter 3mm and Length 8 (M3 x 8) Round Machine Screw

BDT 10 BDT 15

BDT 15 BDT 10 tax incl.

BDT 15 BDT 10 tax excl.

BDT 15 BDT 10 tax incl.

BDT 0 BDT 0 Tax

BDT 15 BDT 10 tax excl.

BDT 0 BDT 0 Tax

BDT 15 BDT 10 tax incl.

In-Stock

In stock: 499

Reference: RBD-3415

IBT-4 Motor Drive Module 50A H-Bridge Stepper Motor Driver

(0)

IBT-4 50A H-Bridge Motor Driver Module for high-power motor applications. Supports up to 50A continuous current with MOSFET-based design for efficiency. Features PWM signal isolation to protect microcontrollers and ensure smooth control. Compatible with 3.3V–12V logic signals and 5V–15V motor supply voltage Ideal for DC motors, stepper motors, and...

BDT 890

BDT 890 tax incl.

BDT 890 tax excl.

BDT 890 tax incl.

BDT 0 Tax

BDT 890 tax excl.

BDT 0 Tax

BDT 890 tax incl.

In-Stock

In stock: 20

- BDT 100 Reduced price

Reference: RBD-0009

Arduino Mega 2560 R3

(0)

54 Digital I/O terminals (14 of which have programmable PWM outputs). 16 Analog Inputs. 4 UARTs (hardware serial ports). 16 MHz crystal clock. RoboticsBD Operating voltage: 6 ~ 12v. Dimensions: 110 x 53 x 15 mm.

BDT 1,788 BDT 1,888

BDT 1,888 BDT 1,788 tax incl.

BDT 1,888 BDT 1,788 tax excl.

BDT 1,888 BDT 1,788 tax incl.

BDT 0 BDT 0 Tax

BDT 1,888 BDT 1,788 tax excl.

BDT 0 BDT 0 Tax

BDT 1,888 BDT 1,788 tax incl.

In-Stock

In stock: 6

MD-PS002 Vacuum Pressure Sensor Module

(0)

High-precision vacuum pressure sensor for industrial and automation applications. Measures pressure from vacuum (-100kPa) to +50kPa above atmospheric Operates at 5V DC or 1mA constant current for stable performance. Provides analog output for real-time monitoring with microcontrollers. Compact size (6.8×6.8×4.6mm) ideal for embedded designs. Perfect for...

BDT 350

BDT 350 tax incl.

BDT 350 tax excl.

BDT 350 tax incl.

BDT 0 Tax

BDT 350 tax excl.

BDT 0 Tax

BDT 350 tax incl.

In-Stock

In stock: 19

Reference: RBD-3302

Pure Sine Wave Inverter Driver Board EGS002 Display Screen

(0)

LCD Display Screen designed for use with EGS002 Pure Sine Wave Inverter Driver Board. Compatible with EG8010 chip, supporting 128×32 LCD (default) or LCD3220 displays. Includes a 110mm shielding cable to minimize electrical interference. Ideal for testing and monitoring inverter output parameters. Widely used in pure sine wave inverters, solar, wind, and...

BDT 550

BDT 550 tax incl.

BDT 550 tax excl.

BDT 550 tax incl.

BDT 0 Tax

BDT 550 tax excl.

BDT 0 Tax

BDT 550 tax incl.

In-Stock

In stock: 11

Reference: RBD-3301

RPI-1031 Angle Sensor

(0)

High-precision 360° angle sensor designed for accurate rotational measurement. Utilizes optical sensing technology for superior accuracy and stability. Provides ±0.3° precision for precise motion and position tracking Digital output interface for easy integration with microcontrollers. Compact and durable design ideal for robotics, automation, and...

BDT 450

BDT 450 tax incl.

BDT 450 tax excl.

BDT 450 tax incl.

BDT 0 Tax

BDT 450 tax excl.

BDT 0 Tax

BDT 450 tax incl.

In-Stock

In stock: 18

Reference: RBD-3300

SHT35 Temperature and Humidity Sensor Module I2C Interface

(0)

High-precision temperature and humidity sensor using the advanced SHT35 digital sensor. Provides ±1.5% RH humidity and ±0.2°C temperature accuracy. Supports I2C communication interface for easy integration with Arduino, ESP32, STM32, and Raspberry Pi. Wide measurement range from 0–100% RH and -40°C to 125°C. Low power consumption makes it ideal for...

BDT 1,250

BDT 1,250 tax incl.

BDT 1,250 tax excl.

BDT 1,250 tax incl.

BDT 0 Tax

BDT 1,250 tax excl.

BDT 0 Tax

BDT 1,250 tax incl.

In-Stock

In stock: 5

XGecu T48 (TL866-3G) High-Speed Universal Programmer with 8 Adapter Robotics Bangladesh

Reference: RBD-3303

XGecu T48 (TL866-3G) High-Speed Universal Programmer with 7 Adapter

(0)

XGecu T48 (TL866-3G) is a high-speed universal IC programmer supporting over 28,000 devices Successor to the TL866II Plus, with 120 MHz 32-bit MCU and faster programming speed. Supports EPROM, EEPROM, MCU, SPI/NOR/NAND Flash, EMMC (up to 256 GB) and PLD/GAL. Features a 40-pin industrial ZIF socket and 16-channel ISP interface. VCC 1.8–6.5 V / VPP 9–25 V,...

BDT 11,500

BDT 11,500 tax incl.

BDT 11,500 tax excl.

BDT 11,500 tax incl.

BDT 0 Tax

BDT 11,500 tax excl.

BDT 0 Tax

BDT 11,500 tax incl.

Last items in stock

In stock: 1

Follow us on Facebook

Facebook

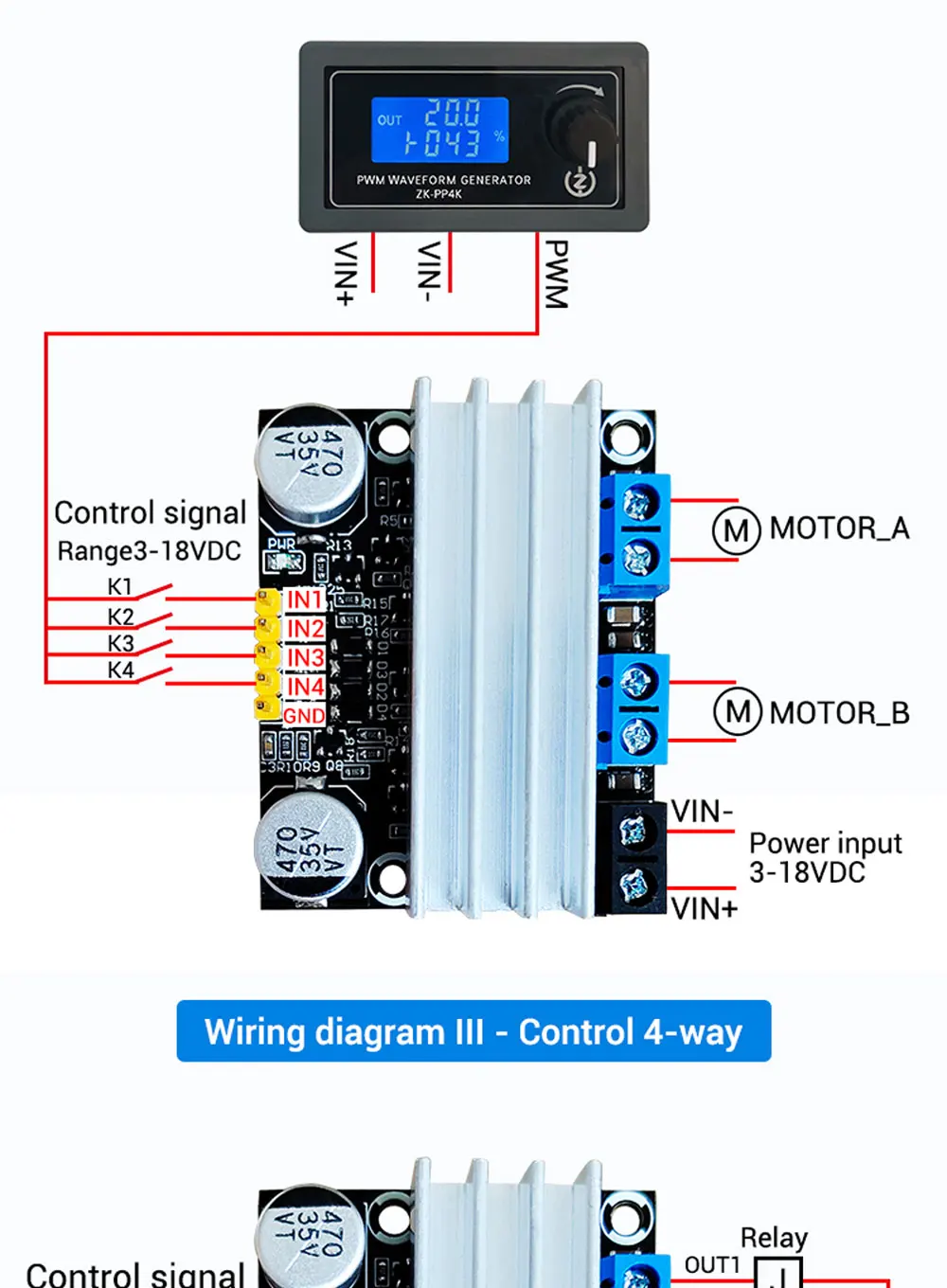

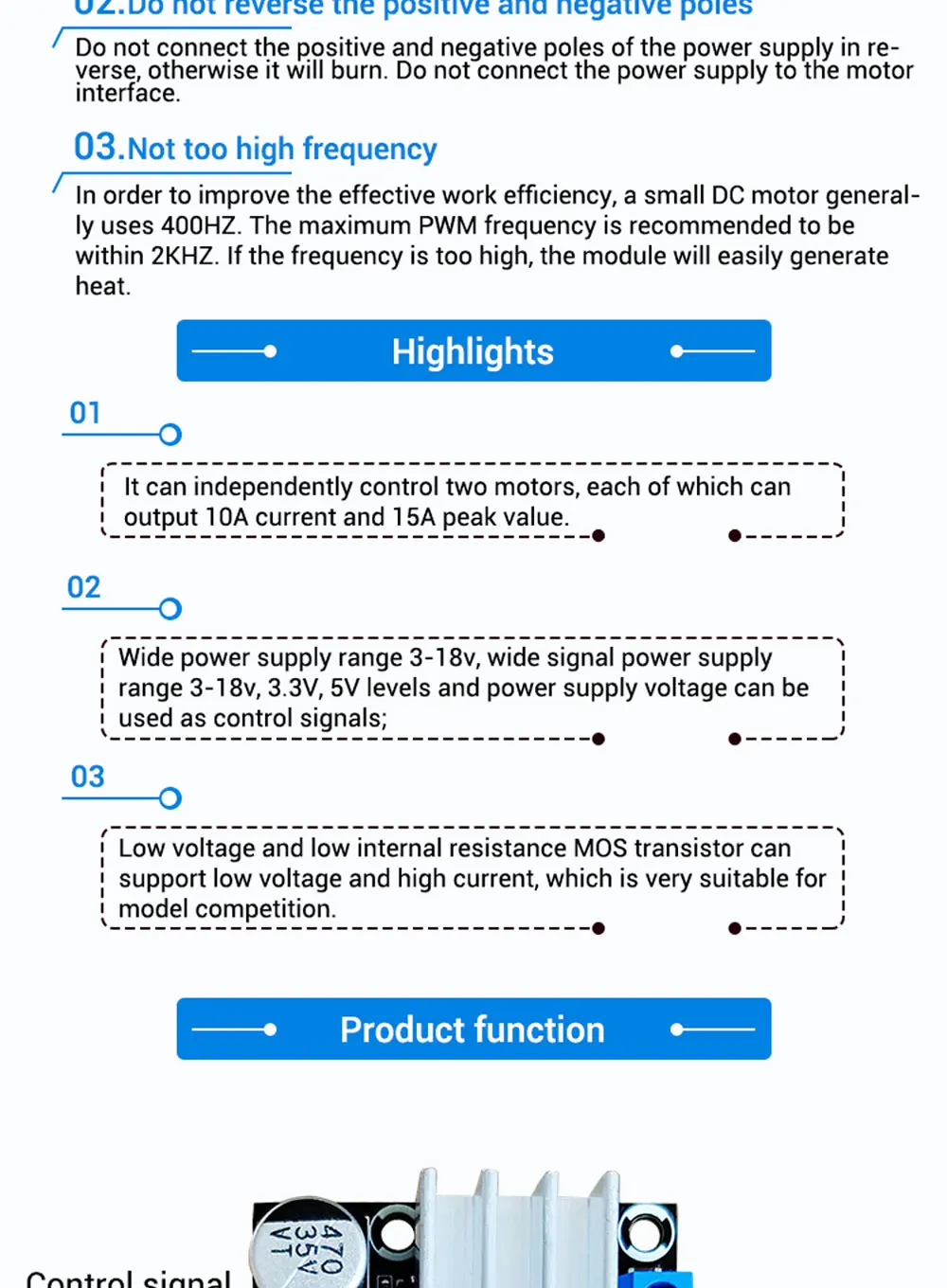

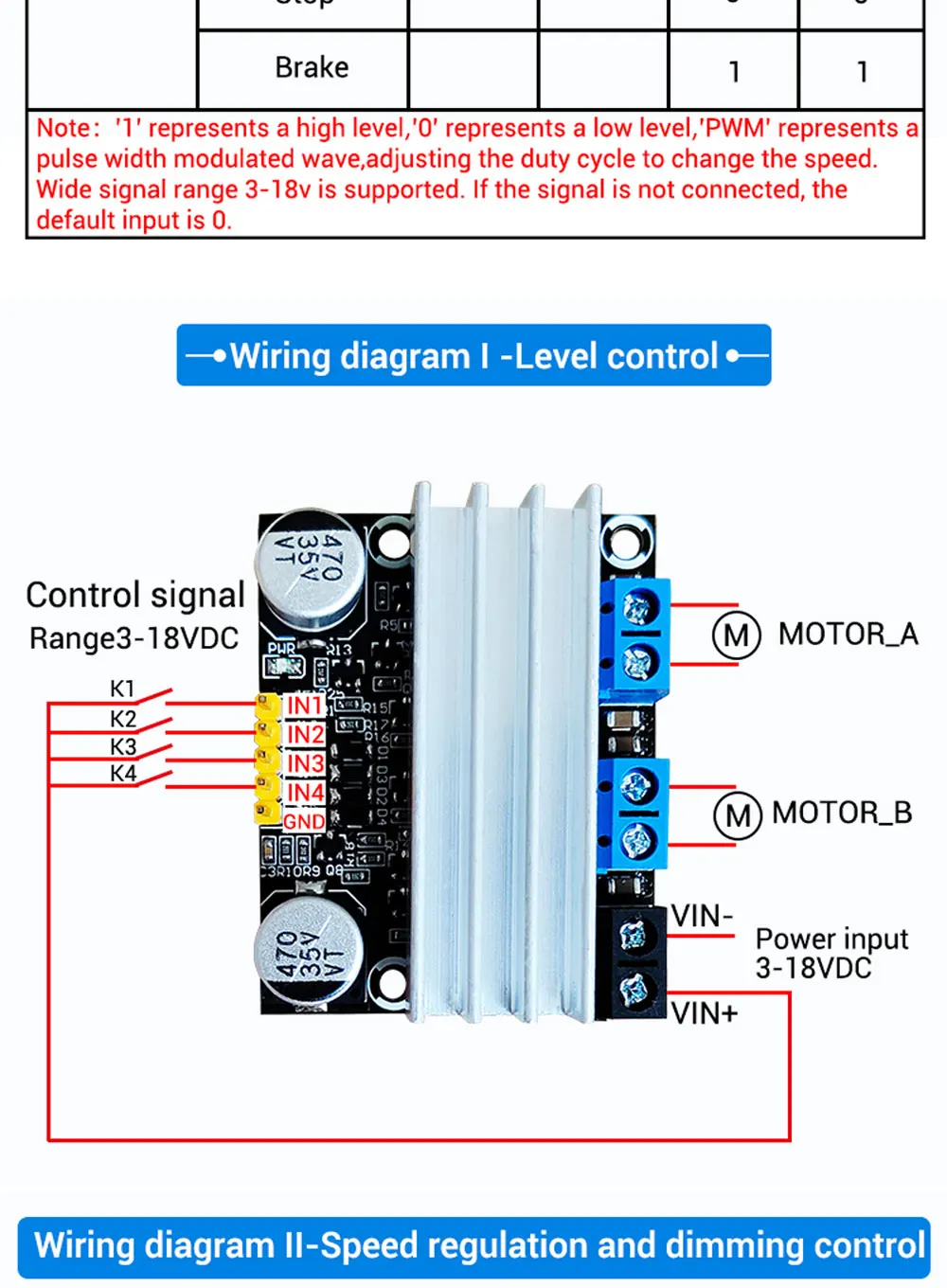

10A Dual DC Motor Drive Module with PWM Speed Regulation

Features:

Applications:

Documentation:

Package Includes:

Subscribe To When In Stock

Follow us on Facebook
