The XGecu T48 (TL866-3G) High-Speed Universal Programmer is a professional-grade, next-generation IC programming tool designed for engineers, technicians, and embedded developers. Built on a 32-bit 120 MHz MCU and four-layer PCB architecture, it offers ultra-fast data transfer, wide-chip compatibility, and exceptional reliability. Supporting over 28,000 ICs—including EPROMs, EEPROMs, Flash (NOR/NAND), MCUs, PLDs, GALs, and EMMC devices up to 256 GB—it provides unmatched versatility for firmware updates, data recovery, and IC testing. Equipped with an industrial-quality 40-pin ZIF socket, 16-channel ISP interface, and adjustable voltage range (1.8 V to 6.5 V), the T48 ensures stable and accurate operation across multiple platforms. Its USB 2.0 high-speed interface (480 MHz) and multilingual software make it fully compatible with Windows XP through Windows 11, offering an ideal solution for professional electronics labs and repair environments. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Next-Gen Architecture: 32-bit MCU (120 MHz) ensures faster and more stable programming.
Extensive Device Support: Works with 28,000+ EPROM, EEPROM, MCU, PLD, GAL, and Flash ICs.
High-Speed Performance: Programs NOR Flash up to 30 MHz and supports 256 GB NAND EMMC.
Adjustable Voltage Control: VCC (1.8 – 6.5 V) and VPP (9 – 25 V) with 64 fine levels.
Industrial-Grade 40-Pin ZIF Socket: Durable and replaceable for heavy-duty use.
ISP Support: Includes 16-channel In-System Programming for embedded devices.
Comprehensive Software Support: Windows XP – Windows 11 compatibility with multilingual UI.
Compact Design: Portable size (10 × 6.5 × 2.8 cm) with low power consumption (< 500 mA).
Visual Logic Testing: Supports 74-series logic IC visual testing for diagnostics.
Adapter Compatibility: Works with T56 and TL866 series adapters and sockets.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Electronics Repair & Diagnostics: Reprogram and test EEPROMs and microcontrollers.
Firmware Development: Used for MCU and Flash firmware upload and backup.
Data Recovery: Supports SPI Flash memory dumping for BIOS and mobile devices.
Embedded System Design: Ideal for bootloader burning and hardware development.
IC Testing & Validation: Performs logic testing on 74-series digital ICs.
Academic & Research Labs: Widely used for microelectronics training and experiment programming.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | XGecu T48 (TL866-3G) |
| Processor | 32-bit MCU @ 120 MHz |
| Supported Devices | 28,000+ EPROM, EEPROM, NOR/NAND Flash, MCU, PLD, GAL |
| Programming Speed | W25Q80 ≈ 3.5 s (P+V), 25Q128 ≈ 30 s (P+V) |
| NAND/EMMC Support | Up to 256 GB |
| Socket Type | 40-pin industrial ZIF socket (replaceable) |
| ISP Channels | 16-channel ISP |
| VCC Range | 1.8 V – 6.5 V (64 levels) |
| VPP Range | 9 V – 25 V (64 levels) |
| USB Interface | USB 2.0 HS (480 MHz) plug-and-play |
| Operating System | Windows XP – Windows 11 (multilingual) |
| Dimensions | 10 × 6.5 × 2.8 cm |
| Power Consumption | < 500 mA @ 5 V |
| Logic Testing Support | 74-series visual IC testing supported |
| Compatible Adapters | TL866CS, TL866II Plus, T56 adapters supported |
| Shipment Weight | 0.35 kg |
| Shipment Dimensions | 15 × 10 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:

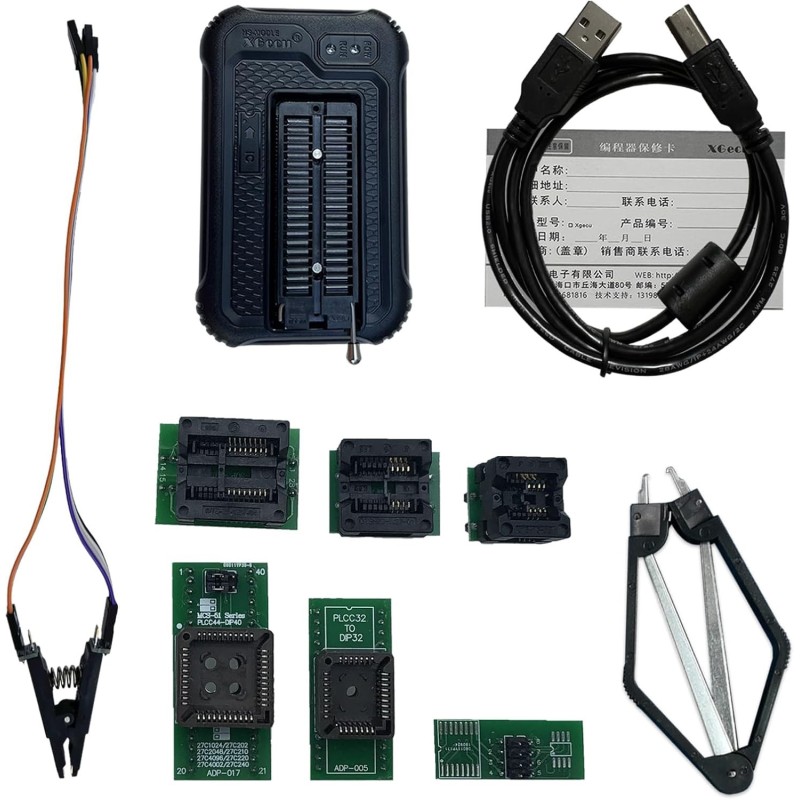

1 x XGecu T48 (TL866-3G) High-Speed Universal Programmer with 7 Adapter
