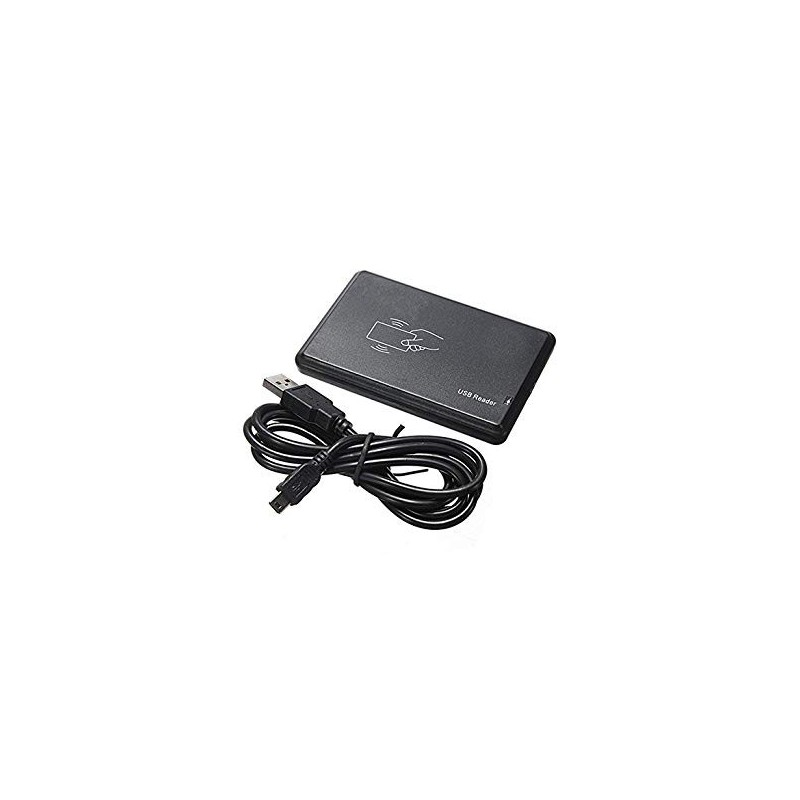

This is JT308 125KHz USB Proximity Sensor Smart RFID ID Card Reader.
This RFID card reader can read RFID card serial number and output to your computer according to the specified format, then management software derives many more functions. RoboticsBD
The JT308 series RFID card reader is simple, fast read card. Belong to standard HID devices do not need to install the driver, can be read in any number, this function is suitable for extended functionality in existing software, without any modification to the original software. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: No driver is required; it can be directly read as an HID device and functions like a keyboard. It does not require or support any additional software.
HID stands for Human Interface Device. It is a type of computer device that interacts directly with humans and takes input from them, such as keyboards, mice, game controllers, and certain types of NFC readers and barcode readers. HID-compliant devices can communicate with a computer without needing special drivers, as they use a standard protocol that most operating systems support. This makes them plug-and-play, meaning they can be used immediately upon connection.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
* Connect the USB cable with the card reader to the computer USB port.
* The reader will ‘drip’ sound and flash about that power successfully, and then half a second after the ‘drip’ sound and flash about that device self-test successfully, without Install any drivers, windows will automatically recognize it.
* Open one EXCEL or WORLD, the card number would be input by self. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Frequency Range | 125KHz |
| Communication Speed | 106Kbit/s |
| Reading Distance | 5-8cm |
| Operating Temperature (°C) | -10 to 60 |
| Input Supply Voltage (VDC) | 5 |
| Material | Plastic |
| Reader Dimensions(mm)(LxWxH) | 105x70x12 |
| Cable Length (Meter) | 1.5 |
| Shipment Weight | 0.17 kg |
| Shipment Dimensions | 12 × 9 × 4.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x USB interface RFID card reader.
1 x mini USB cable.
