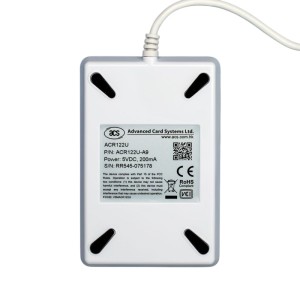

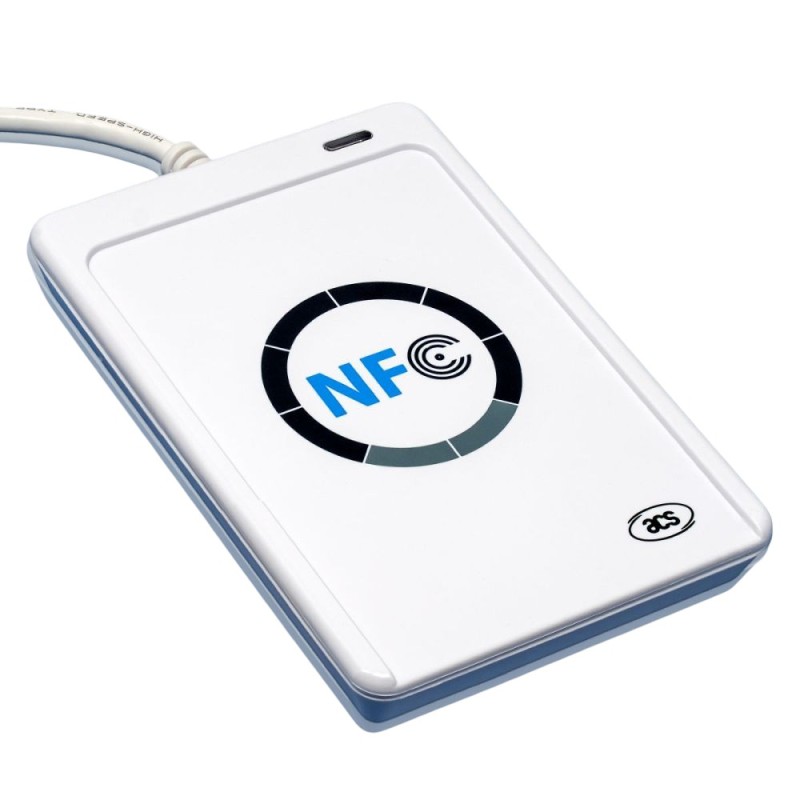

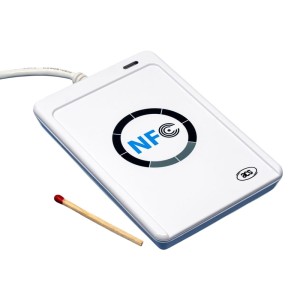

The ACS ACR122U NFC USB Reader is a reliable, PC-linked contactless smart-card reader and writer based on 13.56 MHz RFID technology. Fully compliant with ISO/IEC 18092 (NFC) standards, it supports MIFARE®, ISO 14443 Type A/B cards, and NFC Tags Type 2–4, enabling broad interoperability with consumer and industrial NFC systems. With a high communication rate of 424 kbps and USB 2.0 full-speed (12 Mbps) interface, it ensures fast and stable data exchange. The built-in LED indicator and buzzer provide clear user feedback, while its anti-collision feature guarantees accurate tag reading. Compact and plug-and-play (CCID & PC/SC compliant), the ACR122U is widely used in e-payment, ticketing, access control, toll collection, and ID authentication systems. Its compatibility with GoToTags Desktop software also makes it ideal for high-speed NFC tag encoding and development purposes. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Wide Compatibility: Supports ISO 14443 Type A/B cards, MIFARE®, FeliCa, and NFC Tags Types 2–4.
High-Speed Communication: Card access up to 424 kbps; USB 2.0 full-speed (12 Mbps).
Contactless Operation: Built-in antenna enables up to 50 mm read range.
Plug-and-Play: CCID and PC/SC compliance for easy driver-free setup.
User Feedback: Configurable LED indicator and buzzer for status notification.
Anti-Collision Mechanism: Ensures only one tag is accessed at a time.
Cross-Platform Support: Works with Windows, Linux, macOS, and Android 3.1 +.
Developer Friendly: Supports API integration via PC/SC and CT-API (wrapper).
Desktop Integration: Compatible with GoToTags software for tag encoding.
Applications: Ideal for e-payment, access control, ticketing, and secure authentication.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Access Control Systems: Authenticate personnel via NFC ID cards.
E-Payment & Ticketing: Enable contactless transactions and event ticket validation.
Smart Card Programming: Encode and test NFC tags using GoToTags Desktop.
Network Authentication: Integrate secure login mechanisms in enterprise systems.
IoT Development: Use with Arduino or Raspberry Pi for NFC-based IoT projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Model | ACR122U |
| Frequency | 13.56 MHz |
| Supported Standards | ISO/IEC 18092 (NFC), ISO 14443 A/B, MIFARE®, FeliCa |
| Supported NFC Tag Types | Types 2–4 (NFC Tag 1 & 5 not supported) |
| Communication Speed | 424 kbps (card), 12 Mbps (USB) |
| Interface | USB 2.0 Full Speed, CCID / PC/SC Compliant |
| Read Range | Up to 50 mm (depending on tag type) |
| Power Supply | USB powered (5 V DC) |
| Indicators | User-controllable LED and buzzer |
| Anti-Collision | Yes (1 tag access at a time) |
| OS Support | Windows, Linux, macOS, Android 3.1 + |
| Application Interface | PC/SC API, CT-API (wrapper on top of PC/SC) |
| Supported Software | GoToTags Desktop (NFC tag encoding) |
| Dimensions | Approx. 98 mm × 65 mm × 12 mm |
| Shipment Weight | 0.0112 kg |
| Shipment Dimensions | 20 × 9 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x ACS ACR122U NFC USB Reader
