The PN532 is a highly integrated transmission module for contactless communication at 13.56 MHz including microcontroller functionality based on an 80C51 core with 40 Kbytes of ROM and 1 Kbytes of RAM. The PN532 combines a modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz with an easy-to-use firmware for the different supported modes and the required host controller interfaces.
It works as RFID reader/writer,1443-A card or a virtual card and also supports NFC with Android phone. It is also compatible with Arduino. RoboticsBD
Features:
- Support II2, SPI and HSU (High-Speed UART)
- PN532 Compatible Chinese Chip
- I2C / UART: 3.3V ~ 24V TTL
- SPI: 3.3V TTL with 100-ohm resistors in series
- Communication distance: 5cm~7cm
- On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
- Work in NFC Mode or RFID reader/writer Mode
- RFID reader/writer supports:
- Plug and play, compatible
- Built-in PCB Antenna, with 4cm~6cm communication distance
- On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
- Work as an RFID reader/writer
- Work as a 1443-A card or a virtual card
- Exchange data with other NFC devices such as a smartphone. RoboticsBD
| General Specification |
| Operating Voltage | 3.3V ~ 5V |
| Supporting Protocols | II2, SPI and HSU (High-Speed UART)
I2C / UART: 3.3V ~ 24V TTL
SPI: 3.3V TTL with 100-ohm resistors in series |
| Communication distance | 5cm~7cm |
| Module Size | 42.7 x 40.4 x 4 mm (LxWxH) |
| Shipment Weight | 0.05 kg |
| Shipment Dimensions | 6 × 5 × 2 cm |
Documentation:
- Quick Start Guide
Package Includes:

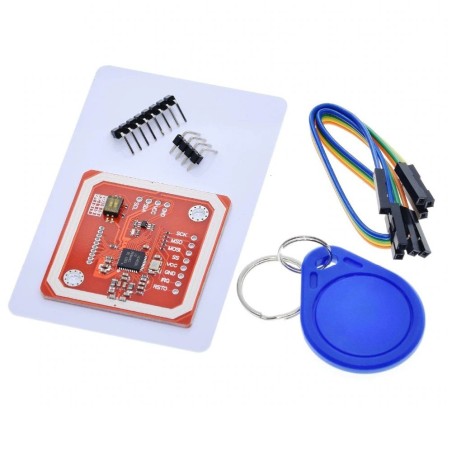

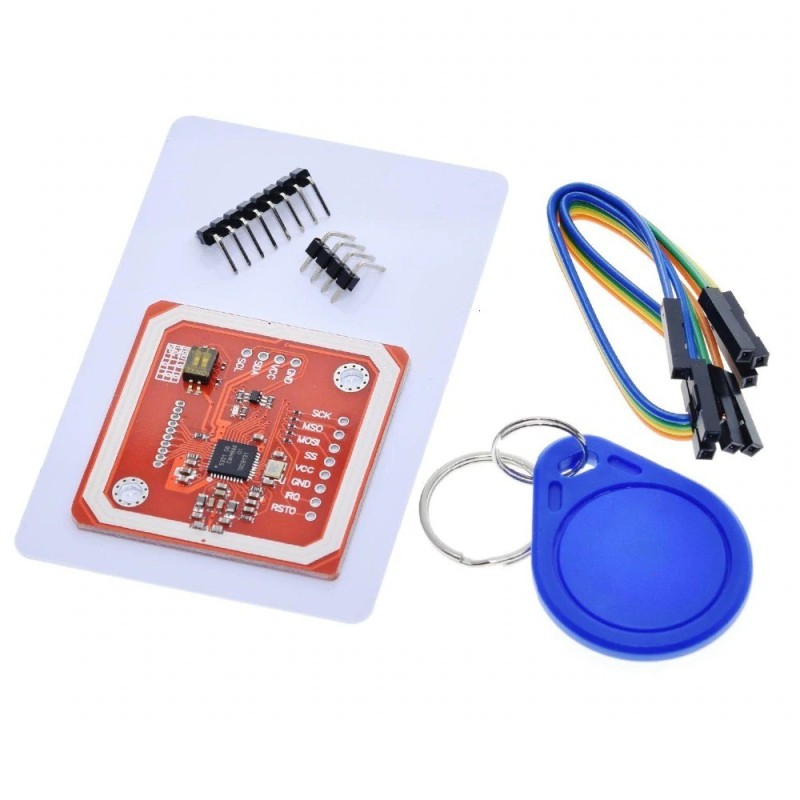

1 x PN532 NFC RFID Wireless Module V3
