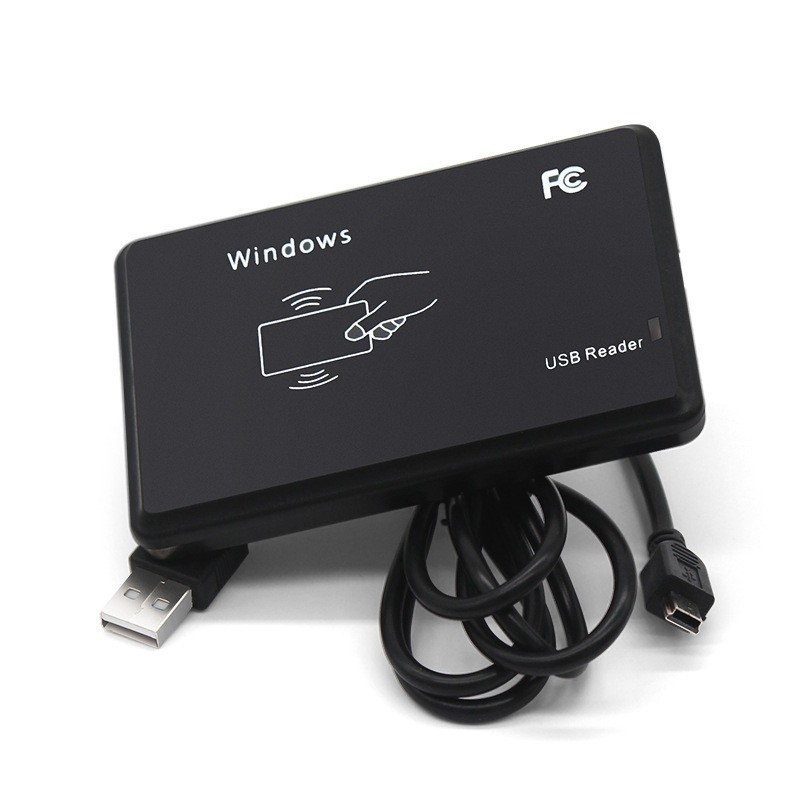

NFC Card Reader USB - 13.56Mhz

Reference RBD-1817

USB Plug and Play.
RFID reader 0-8cm Reading Distance.
Win8/7/XP/Android Supported.
S50/S70 Card Supported.
OTG Phone Connection.
Built-in buzzer and LED for identification.

Description
Product Details

Description

This item is a RFID 13.56MHz IC reader, reading distance up to 4cm, which is widely used for RFID radio frequency identification systems and projects, such as automated parking management, personal identification, and production access control.

This RFID card reader can read RFID card serial numbers and output them to your computer according to the specified format, then management software derives many more functions. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Note: No driver is required; it can be directly read as an HID device and functions like a keyboard. It does not require or support any additional software.

HID stands for Human Interface Device. It is a type of computer device that interacts directly with humans and takes input from them, such as keyboards, mice, game controllers, and certain types of NFC readers and barcode readers. HID-compliant devices can communicate with a computer without needing special drivers, as they use a standard protocol that most operating systems support. This makes them plug-and-play, meaning they can be used immediately upon connection.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Installation Steps:

Connect with a computer through the USB cable inside.
Open notepad or a word document.
Put the card on the top of the reader.
The document will output card number automatically.

Note: No RFID card or Tag are included in the package you have to buy it separately

Features:

USB Plug and Play.
RFID reader 0-8cm Reading Distance.
Win8/7/XP/Android Supported.
S50/S70 Card Supported.
OTG Phone Connection.
Built-in buzzer and LED for identification.
Widely used at apartment, office, supermarket and other places.
Supporting System: Windows87XP982000 CEMENT, LINUX, Vista

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Frequency	13.56MHz
Baud Rate	9600
Reading time	<0.5s
Power Supply	=+5V DC
Consume Current	70mA
USB Cable Length	1.4m
Dimensions (LxWxH)mm	95 x 60 x 10
Supporting Cards	For Mifare S50, S70
Protocol	14443A
Shipment Weight	0.125 kg
Shipment Dimensions	14 × 9 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 13.56MHz USB Proximity Sensor Smart RFID IC Card Reader

1 x USB Cable.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details

Reference RBD-1817

In stock 41 Items

Specific References

EAN13: 1817
