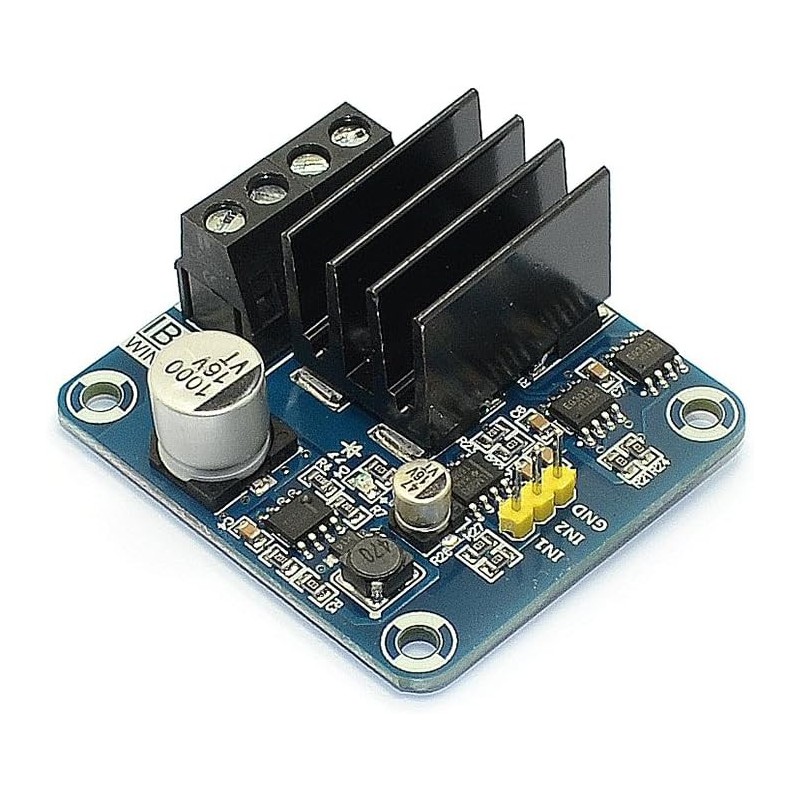

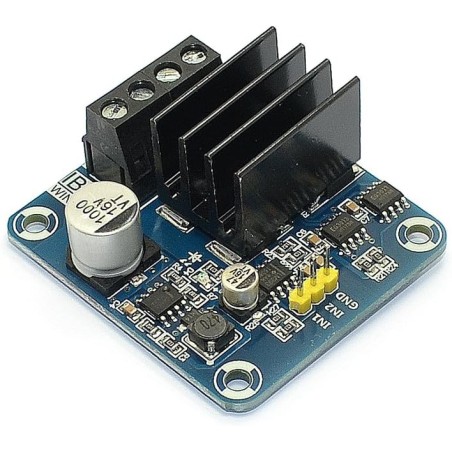

The IBT-4 Motor Drive Module (50A H-Bridge) is a robust and efficient motor driver designed for high-current DC and stepper motor applications. Utilizing advanced MOSFET H-bridge circuitry, it ensures low heat generation, high power efficiency, and reliable operation. Capable of handling up to 50A output current, the IBT-4 supports both forward and reverse motor rotation through dual PWM inputs with a maximum frequency of 200kHz. Its PWM signal isolation design safeguards microcontrollers like Arduino, STM32, and Raspberry Pi from electrical interference, extending overall system lifespan. This module is perfect for use in robotics, electric vehicles, CNC machines, and industrial automation, providing precise motor control and long-term stability under demanding conditions. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
High Current Output – Supports continuous operation up to 50A for powerful motor control.
Full H-Bridge MOSFET Circuit – Delivers low resistance, high efficiency, and minimal heat generation.
Dual PWM Inputs – Allows forward and reverse control with precise speed modulation.
PWM Signal Isolation – Protects MCU signal integrity and prevents circuit damage.
Wide Voltage Compatibility – Operates from 5V to 15V, suitable for various DC motor systems.
Logic Input Range – Compatible with 3.3V to 12V microcontroller logic levels.
LED Power Indicator – Provides clear module power and status indication.
Compact & Durable Design – Easy integration into space-constrained applications.
Efficient Cooling Design – Supports heat dissipation for continuous high-load operation.
Versatile Applications – Ideal for robotics, motorized platforms, and automation systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
DC Motor Speed Control – Adjust motor speed with precision using PWM signals.
Stepper Motor Driving – Drive stepper motors for robotics and CNC machines.
Electric Vehicle Systems – Power high-torque motors in e-bikes or small robots.
Semiconductor Cooling – Control Peltier modules for temperature regulation.
Industrial Automation – Operate conveyor belts, pumps, and actuators.
Smart Robotics Projects – Integrate into Arduino or Raspberry Pi motor control setups.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | IBT-4 |
| Type | H-Bridge Motor Driver |
| Working Voltage | 5V – 15V |
| Max Output Current | 50A |
| Logic Voltage Compatibility | 3.3V – 12V |
| PWM Frequency | Up to 200kHz |
| Circuit Type | Full H-Bridge MOSFET |
| Control Inputs | Dual PWM (Forward / Reverse) |
| Signal Isolation | Yes |
| Indicator | LED Power Status |
| Build Material | High-quality MOSFETs, copper PCB |
| Module Dimensions | 4.3 × 4.8 × 2 cm |
| Operating Temperature | -20°C to +70°C |
| Country of Origin | China |
| Shipment Weight | 0.055 kg |
| Shipment Dimensions | 6 × 5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x IBT-4 Motor Drive Module 50A H-Bridge Stepper Motor Driver
