    SSR-40DA Solid State Relay Module

    RBD-1597

    • Long Service life and high Reliability
    • Reduced Electromagnetic Interference
    • Highly reliable, compact size designed to offer users maximum simplicity
    • Trigger Voltage: 3-32VDC
    • Switching Voltage: 24-380VAC@40A
    BDT 849
    BDT 849 BDT 849 BDT 849 BDT 849
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 849 Tax excluded
    BDT 849 Tax included
    BDT 0 Tax
    BDT 849 Tax excluded
    BDT 0 Tax
    BDT 849 Tax included
    Quantity
    Last items in stock
    3 Items

    46 people have purchased this item
    2 people recently added this item to the cart
    Only 3 items left in stock
    Description

    This is SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC 40A. A solid state relay (SSR) allows you to control high-current AC loads from lower voltage DC control circuitry. Solid state relays have several advantages over mechanical relays. RoboticsBD

    One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid state relays can be switched much faster and for much longer periods without wearing out. RoboticsBD

    This particular SSR can switch current loads of up to 40A with a 3-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

    Product Images are shown for illustrative purposes only and may differ from the actual product.


    You cannot test a solid state relay with Multi-meter. these devices require a minimum amount of voltage/current across the input before the output device will conduct. Most multimeters are designed to simply provide a small amount of voltage in order to measure the ensuing current draw. Therefore, when measuring a solid-state device, the meter will typically report an open circuit (or very high impedance) because it cannot put out enough to turn on the relay.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features :

    1. Long service life and high reliability
    2. Reduced electromagnetic interference
    3. Highly reliable, compact size designed to offer users maximum simplicity.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Advantages :

    1. High Dielectric strength over 4KV
    2. High Isolation strength over 100MΩ/500VDC
    3. With over heat protection Circuit (120°C)
    4. High surge current sustenance
    5. High surge voltage sustenance
    6. Conformity with EN60947-4-3 and EN60950

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    ModelSSR-40DA
    Dielectric StrengthOver 2.5kVA / 1 min
    Trigger Voltage (VDC)3-32
    Switching Voltage (VAC)24-380@40A
    Operating Temperature Range (°C)-20 to 85
    MaterialABS
    Length (mm)45.5
    Width (mm)62.5
    Height (mm)24
    Weight (gm)95
    Shipment Weight0.1 kg
    Shipment Dimensions7 × 6 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    1. Datasheet

    Package includes :

    1 x SSR-40DA Solid State Relay Module

    Product Details
    RBD-1597
    3 Items

    Specific References

    EAN13
    1597
    Comments (0)
    Grade
    No customer reviews for the moment.
    16 other products in the same category:
    1 Channel 12V 30A Relay Control Board Module with Optocoupler Robotics Bangladesh

    Reference: RBD-2658

    1 Channel 12V 30A Relay Control Board Module with Optocoupler

    (0)
    1 Channel 12V 30A relay control board with optocoupler isolation for safe and reliable switching Supports both DC and AC control signals for wide application compatibility Capable of handling up to 220V AC loads, ideal for high-power appliances and automation projects Built-in high impedance controller pin with pull-down circuit to prevent malfunction...
    BDT 330
    BDT 330 tax incl.
    BDT 330 tax excl.
    BDT 330 tax excl.
    BDT 330 tax incl.
    BDT 330 tax incl.
    BDT 0 Tax
    BDT 330 tax excl.
    BDT 330 tax excl.
    BDT 0 Tax
    BDT 330 tax incl.
    More 1 Channel 12V 30A Relay Control Board Module with Optocoupler
    In-Stock
    In stock: 11
    MOSFET Switch Module IRF520 Robotics Bangladesh MOSFET Switch Module IRF520 Robotics Bangladesh

    Reference: RBD-2565

    MOSFET Switch Module IRF520

    (0)
    IRF520 N-channel MOSFET driver module for high-power load control Handles up to 24V DC and 5A load current efficiently Compatible with 3.3V/5V logic signals from Arduino, ESP32, STM32, Raspberry Pi Features screw terminals & pin headers for easy connections Supports PWM output control for motors, LED strips, pumps, and solenoids Compact PCB with...
    BDT 150
    BDT 150 tax incl.
    BDT 150 tax excl.
    BDT 150 tax excl.
    BDT 150 tax incl.
    BDT 150 tax incl.
    BDT 0 Tax
    BDT 150 tax excl.
    BDT 150 tax excl.
    BDT 0 Tax
    BDT 150 tax incl.
    More MOSFET Switch Module IRF520
    In-Stock
    In stock: 39
    Flame Sensor Relay Module Robotics Bangladesh

    Reference: RBD-3501

    Flame Sensor Relay Module

    (0)
    Flame Sensor Relay Module with 760nm–1100nm infrared flame detection range Detects flames up to 80cm with 60° wide detection angle Built-in relay output (10A) for direct AC/DC load control Adjustable sensitivity using onboard potentiometer 5V DC operation with comparator-based reliable triggering Compact design with mounting holes for easy installation
    BDT 220
    BDT 220 tax incl.
    BDT 220 tax excl.
    BDT 220 tax excl.
    BDT 220 tax incl.
    BDT 220 tax incl.
    BDT 0 Tax
    BDT 220 tax excl.
    BDT 220 tax excl.
    BDT 0 Tax
    BDT 220 tax incl.
    More Flame Sensor Relay Module
    In-Stock
    In stock: 26
    D4184 MOSFET Control Module Robotics Bangladesh

    Reference: RBD-2757

    D4184 MOSFET Control Module

    (0)
    D4184 N-channel MOSFET module with optoisolation for safe switching Low Rds(on) of 8.5mΩ for efficient power handling Supports 2.5V–20V logic input and 6–36V output switching voltage Handles up to 10A continuous current, 20A+ peak with PWM Compatible with 3.3V and 5V microcontrollers (Arduino, STM32, ESP32) Compact 35 × 16 × 14mm module ideal for...
    BDT 150
    BDT 150 tax incl.
    BDT 150 tax excl.
    BDT 150 tax excl.
    BDT 150 tax incl.
    BDT 150 tax incl.
    BDT 0 Tax
    BDT 150 tax excl.
    BDT 150 tax excl.
    BDT 0 Tax
    BDT 150 tax incl.
    More D4184 MOSFET Control Module
    In-Stock
    In stock: 20

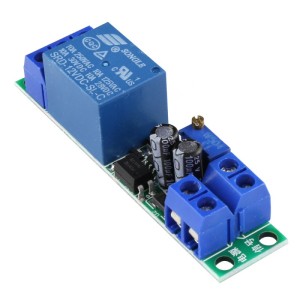

    1 Channel 12V Timer Relay Module with Optically Isolated Input Robotics Bangladesh

    Reference: RBD-3605

    1 Channel 12V Timer Relay Module with Optically Isolated Input

    (0)
    The 1 Channel 12V Timer Relay Module is a highly reliable switching module ideal for precise timing control applications. Built around the popular NE555 timer chip, it allows users to control the relay ON/OFF timing via an adjustable potentiometer, offering a time delay range of 0 to 25 seconds. Designed with an optically isolated input, this module...
    BDT 250
    BDT 250 tax incl.
    BDT 250 tax excl.
    BDT 250 tax excl.
    BDT 250 tax incl.
    BDT 250 tax incl.
    BDT 0 Tax
    BDT 250 tax excl.
    BDT 250 tax excl.
    BDT 0 Tax
    BDT 250 tax incl.
    More 1 Channel 12V Timer Relay Module with Optically Isolated Input
    In stock
    In stock: 11
    5V 1 Channel Solid State Relay (SSR) Robotics Bangladesh

    Reference: RBD-0737

    5V 1 Channel Solid State Relay (SSR)

    (0)
    Power supply:5VDC/160mA Switching Voltage (VAC):240@2A Isolation: Phototriac
    BDT 269
    BDT 269 tax incl.
    BDT 269 tax excl.
    BDT 269 tax excl.
    BDT 269 tax incl.
    BDT 269 tax incl.
    BDT 0 Tax
    BDT 269 tax excl.
    BDT 269 tax excl.
    BDT 0 Tax
    BDT 269 tax incl.
    More 5V 1 Channel Solid State Relay (SSR)
    In-Stock
    In stock: 77

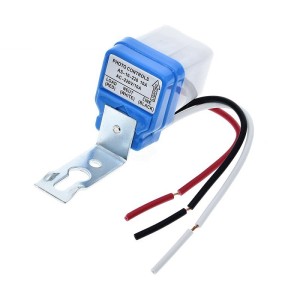

    DC Automatic Photocell Street Lamp Light Switch Controller AC 220V 50-60Hz 10A Robotics Bangladesh

    Reference: RBD-3862

    DC Automatic Photocell Street Lamp Light Switch Controller AC 220V 50-60Hz 10A

    (0)
    Input Voltage: AC 220V Max Load Current: 10A Frequency:50-60Hz Load power: 2200W Off delay time: 0.1S
    BDT 290
    BDT 290 tax incl.
    BDT 290 tax excl.
    BDT 290 tax excl.
    BDT 290 tax incl.
    BDT 290 tax incl.
    BDT 0 Tax
    BDT 290 tax excl.
    BDT 290 tax excl.
    BDT 0 Tax
    BDT 290 tax incl.
    More DC Automatic Photocell Street Lamp Light Switch Controller AC 220V 50-60Hz 10A
    In stock
    In stock: 9
    1 Channel 5V Relay Board Module Robotics Bangladesh

    Reference: RBD-0702

    1 Channel 5V Relay Board Module

    (0)
    It has a relay status indicator led Power LED(Green), 8 relay status indicator LED(Red) Relay control interface by single-chip IO. Low-level suction close, high-level release. Easy to use, simple 3 line structure.Note: Relay might be different from the picture as per stock
    BDT 95
    BDT 95 tax incl.
    BDT 95 tax excl.
    BDT 95 tax excl.
    BDT 95 tax incl.
    BDT 95 tax incl.
    BDT 0 Tax
    BDT 95 tax excl.
    BDT 95 tax excl.
    BDT 0 Tax
    BDT 95 tax incl.
    More 1 Channel 5V Relay Board Module
    In-Stock
    In stock: 198
    1 Channel 3V Relay Board Module Robotics Bangladesh 1 Channel 3V Relay Board Module Robotics Bangladesh

    Reference: RBD-2943

    1 Channel 3V Relay Board Module

    (0)
    3V/3.3V Compatible Works seamlessly with various microcontrollers like Arduino, Raspberry Pi, and ESP8266. Optocoupler Isolation Provides electrical isolation between control and high-power circuits, Enhanced safety and reducing noise. Flexible Power Options Separate power supply for control and load circuits (jumper selectable).
    BDT 160
    BDT 160 tax incl.
    BDT 160 tax excl.
    BDT 160 tax excl.
    BDT 160 tax incl.
    BDT 160 tax incl.
    BDT 0 Tax
    BDT 160 tax excl.
    BDT 160 tax excl.
    BDT 0 Tax
    BDT 160 tax incl.
    More 1 Channel 3V Relay Board Module
    In-Stock
    In stock: 37
    1 Channel 5V 30A Relay Control Board Module Robotics Bangladesh

    Reference: RBD-2659

    1 Channel 5V 30A Relay Control Board Module

    (0)
    1-channel 5V relay module with 30A switching capacity for high-power applications Optical coupling isolation ensures strong anti-interference and stable performance Supports both high-level and low-level trigger modes via jumper selection Compatible with Arduino, AVR, PIC, ARM, and other 5V microcontrollers Built-in power (red) and relay status (blue)...
    BDT 330
    BDT 330 tax incl.
    BDT 330 tax excl.
    BDT 330 tax excl.
    BDT 330 tax incl.
    BDT 330 tax incl.
    BDT 0 Tax
    BDT 330 tax excl.
    BDT 330 tax excl.
    BDT 0 Tax
    BDT 330 tax incl.
    More 1 Channel 5V 30A Relay Control Board Module
    In-Stock
    In stock: 22

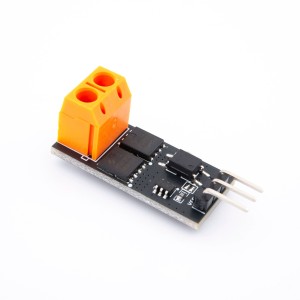

    20A Isolated Electronic Switch Module MOSFET DC Power Switch Robotics Bangladesh
