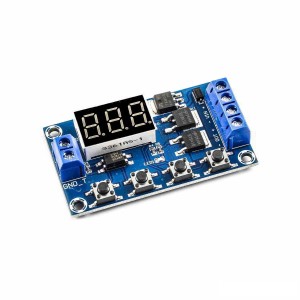

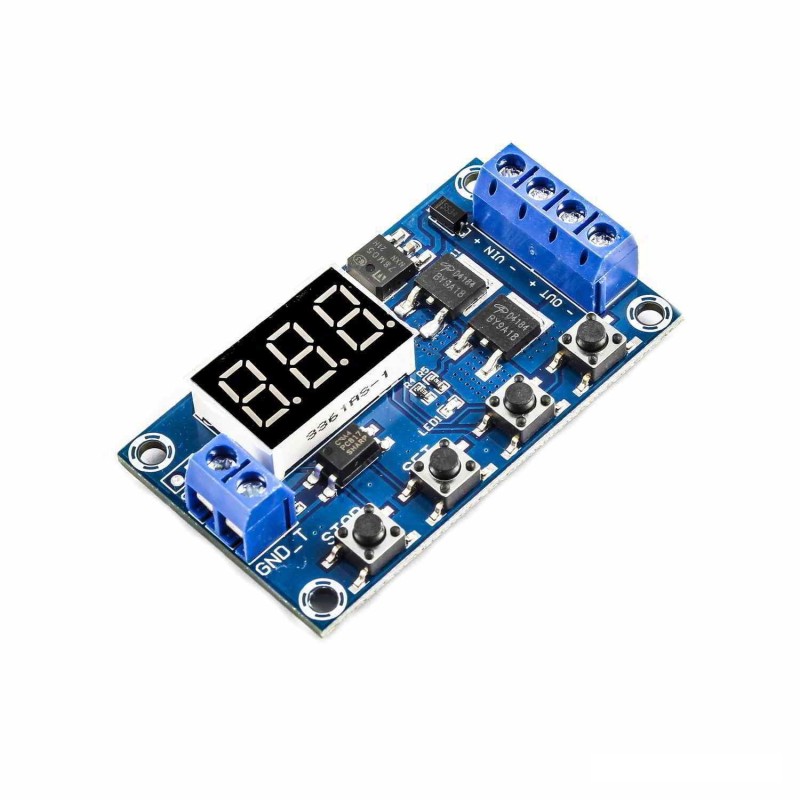

DC 12-24V Dual MOS Time Delay Cycle Timer Module

Reference RBD-3446

DC 12-24V Dual MOS Time Delay Cycle Timer Module with high-precision industrial-grade chip
Supports delay start, cyclic timing, trigger control & auto-loop modes
Powerful MOSFET output up to 400W (15A max) for high-load control
Wide timing range from 0.1 seconds to 999 minutes
Optocoupler isolation, short-circuit & reverse polarity protection
Ideal for industrial automation, motor cycles, lighting delay & smart control

Description
Product Details

Description

The DC 12-24V Dual MOS Time Delay Cycle Timer Module is a versatile and high-performance programmable timing controller designed for industrial automation, smart home systems, and DIY electronics projects. Built with a high-precision industrial-grade chip and advanced MOSFET output technology, it delivers stable performance, strong anti-interference capability, and low power loss even under heavy loads up to 400W. Moreover, it supports multiple working modes including delay ON/OFF, cyclic timing, signal-triggered operation, and automatic loop functions, making it suitable for timer-operated machines, lighting systems, motor control circuits, and factory equipment. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Wide Voltage Compatibility – Operates smoothly from 5V to 36V DC, suitable for various DC power systems.
High Power MOS Output – Handles up to 400W load (15A max), ideal for motors, pumps, and lighting systems.
Multiple Intelligent Modes – Includes P1, P2, P3, and P4 programmable delay and cycle modes for flexible automation control.
Ultra-Wide Timing Range – Set timing from 0.1 seconds to 999 minutes with high precision.
Optocoupler Isolation Protection – Enhances anti-interference performance in industrial environments.
Safety Protection Design – Built-in reverse polarity and short-circuit protection ensures stable operation.
Energy-Saving Display Modes – Auto display-off or always-on mode for reduced power consumption.
Easy Programming Interface – Clear button control system with SET, UP, DOWN, and STOP keys.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Industrial timer-based equipment control systems.
Motor start/stop cyclic automation projects.
Lighting delay modification and smart lighting setups.
Automated watering and irrigation systems.
Factory automation and production line timing control.
Household appliance delay start control.
Smart home automation circuits.
DIY robotics and embedded system timing projects.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Product Name	DC 12-24V Dual MOS Time Delay Cycle Timer Module
Input Voltage	5V – 36V DC
Trigger Signal Voltage	3V – 24V DC
Working Current	50mA
Idle Current	20mA
Output Type	Dual MOSFET Output
Maximum Power	400W
Maximum Current	15A (Room Temperature)
Timing Range	0.1 Seconds – 999 Minutes
Operating Temperature	-40°C to +85°C
Module Dimensions	60mm × 34.5mm × 12mm
Control Interface	SET, UP, DOWN, STOP Buttons
Protection	Short Circuit & Reverse Polarity Protection
Shipment Weight	0.017 kg
Shipment Dimensions	6 × 4 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x DC 12-24V Dual MOS Time Delay Cycle Timer Module
