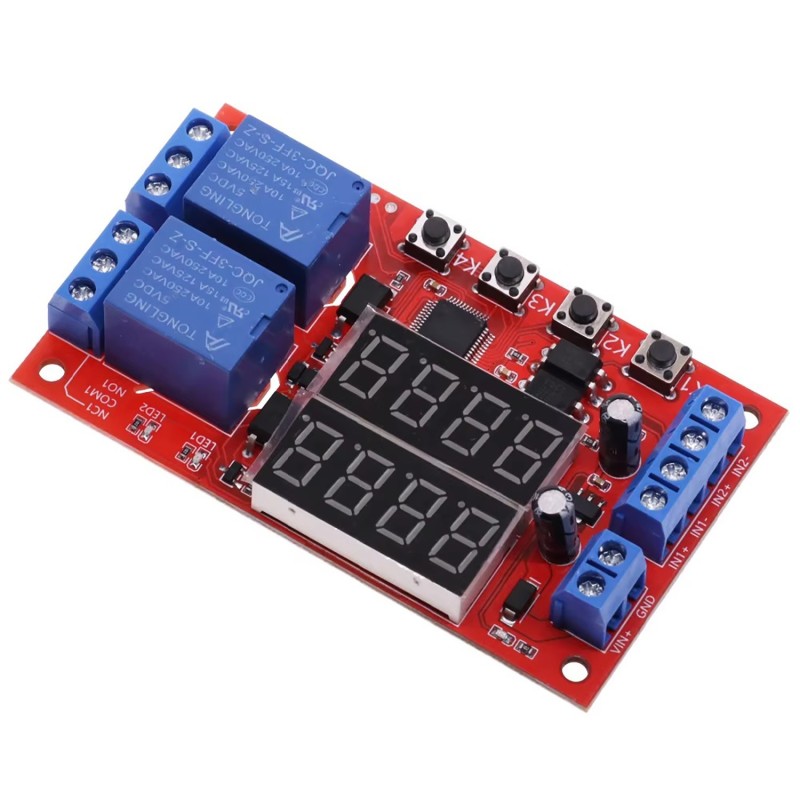

The Adjustable Delay Timer Dual Relay with LED Display 24V is a multifunctional timing control module designed for precise and flexible automation tasks. Featuring two independent relays, it allows control of separate devices with custom timing intervals. The module offers an extensive delay range—from 0.01 seconds up to 9990 minutes—making it suitable for various timing-based applications such as motor start/stop sequences, lighting control, or irrigation systems. The clear LED display ensures easy parameter adjustment and real-time status monitoring, while built-in protections safeguard against reverse polarity and surge voltages. Supporting both AC and DC loads up to 10A, this module combines reliability, versatility, and user-friendliness. Its robust 24V DC operation makes it ideal for DIY electronics, industrial automation, and home control systems requiring accurate delay timing and dual-channel control. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Dual Relay Operation: Controls two devices independently for flexible automation.
Wide Timing Range: Adjustable from 0.01 seconds to 9990 minutes for precise timing control.
Multiple Control Modes: Supports inching, delay, self-locking, and timed cycles.
Clear LED Display: Provides an intuitive interface for monitoring and configuring settings.
High Load Capacity: Handles both AC and DC loads up to 10A.
Comprehensive Protection: Features anti-reverse polarity and surge voltage protection.
24V DC Operation: Designed for industrial and automotive power systems.
Easy Integration: Compatible with microcontrollers, sensors, and automation circuits.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Motor Control: Automate motor start/stop operations with adjustable delay.
Lighting Automation: Control LEDs, lamps, and smart lighting systems.
Water Pump Systems: Manage irrigation, fluid control, and industrial pumps.
Industrial Automation: Ideal for process timing, solenoid control, and factory automation.
DIY Electronics Projects: Perfect for hobbyists building timing-based control systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | Adjustable Delay Timer Dual Relay 24V |
| Operating Voltage | DC 24V |
| Output Type | Dual Relay (2 Channels) |
| Load Capacity | 250V AC / 10A or 30V DC / 10A |
| Time Range | 0.01 Seconds – 9990 Minutes (Adjustable) |
| Signal Input | Switching or High/Low-Level Signals |
| Display Type | LED Numeric Display |
| Control Functions | Inching, Delay, Self-Locking, Cycle |
| Protection Features | Anti-Reverse, Anti-Surge Protection |
| Power Consumption | Low |
| Mounting Type | PCB / Panel Mount |
| Operating Temperature | -20°C to +70°C |
| Dimensions | Approx. 70mm × 40mm × 18mm |
| Shipment Weight | 0.04 kg |
| Shipment Dimensions | 7 × 4 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
How to Use the Adjustable Delay Timer Dual Relay
- Power Connection – Connect the module to a 24V DC power source.
- Load Connection – Attach the two devices (motor, LED, pump, etc.) to the relay outputs.
- Set Delay Time – Use the LED display to adjust the delay from milliseconds to hours.
- Choose Signal Type – Supports switching signals or high/low-level signals.
- Activate & Monitor – Once configured, the timer will automate your devices precisely.
Package Includes:
1 x Adjustable Delay Timer Dual Relay with LED Display 24V
