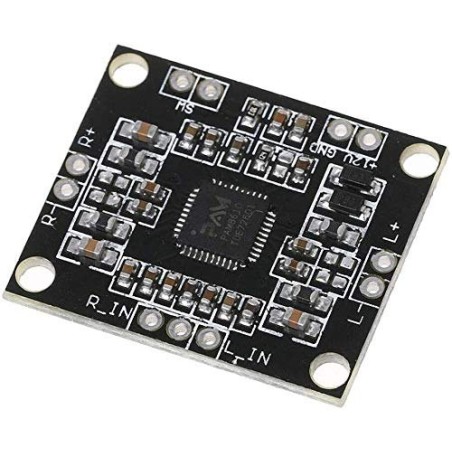

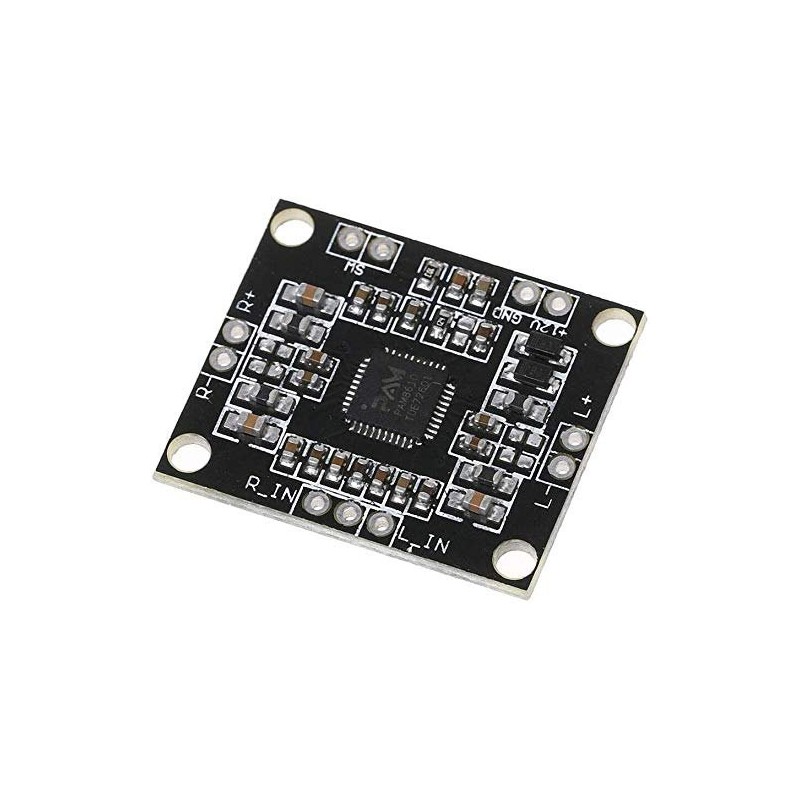

    PAM 8610 Digital Stereo Class-D Amplifier Board 2x15W Output

    RBD-2718

    • 2x15W stereo Class-D amplifier board for high-quality sound output
    • Operates on 7V–15V DC supply with recommended 12V 3A for best performance
    • 32-step DC volume control from +32dB to -75dB for precise audio adjustment
    • Compact 40-pin QFN 6×6mm package, requiring minimal external components
    • Low THD+N (0.1%), low EMI, and good PSRR ensure clear, distortion-free audio
    • Highly efficient, cost-effective design suitable for DIY audio and speaker projects
    BDT 250
    BDT 250 BDT 250 BDT 250 BDT 250
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 250 Tax excluded
    BDT 250 Tax included
    BDT 0 Tax
    BDT 250 Tax excluded
    BDT 0 Tax
    BDT 250 Tax included
    Quantity
    In-Stock
    24 Items

    8 people have purchased this item
    4 people recently added this item to the cart
    24 items in stock
    Description

    The PAM 8610 Digital Stereo Class-D Amplifier Board (2x15W) is a compact and efficient solution for high-quality audio amplification. Designed with dual-channel stereo output, this module delivers 15W per channel while maintaining low distortion and high efficiency. It supports a 7V–15V power supply, with a recommended 12V 3A filtered input for stable operation. Featuring 32-step DC volume control ranging from +32dB to -75dB, the board provides precise audio level adjustments. Its low EMI, low THD+N (0.1%), and good PSRR ensure clear sound reproduction, making it ideal for DIY audio systems, portable speaker projects, and other applications where space, cost, and performance are critical. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. Dual-channel stereo Class-D amplifier with 2×15W output power

    2. Wide 7V–15V DC operating range with high efficiency

    3. 32-step DC volume control for fine-tuned sound adjustment

    4. Low Total Harmonic Distortion (0.1%) ensures clean audio output

    5. Minimal external components reduce cost and board space

    6. Compact design with 40-pin QFN 6×6mm package

    7. Built-in power switching function (SW short) to disable the amplifier

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. DIY stereo amplifier projects

    2. Portable speaker system development

    3. Home audio upgrades and custom sound systems

    4. Educational electronics and prototyping

    5. Audio enhancements for embedded systems and robotics projects

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    ModelPAM 8610 Amplifier Board
    Output Power2×15W (Stereo)
    Amplifier TypeClass-D (PWM modulation)
    Volume Control32-step DC control (+32dB to -75dB)
    THD+N0.1%
    EMI/PSRRLow EMI, good PSRR
    Power Supply Range7V – 15V DC
    Recommended Supply12V DC, 3A filtered
    Package Type40-pin QFN 6×6mm
    Supported Speakers4–8 inch stereo speakers
    ProtectionShort-circuit caution required
    Working ModeClass D (switching amplifier)
    Dimensions3 × 2 × 2 cm
    Shipment Weight0.0037 kg
    Shipment Dimensions3 × 2 × 2 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    How to use:
    1. The power supply voltage limit is 16.5V, do not use more than this voltage.
    2. The power supply is recommended for 12v, 3A power supply filter better.
    3. 4-8 inch stereo speakers recommended.
    4.  Do not short-circuit the audio output to each other or shorted to ground.
    5. Carefully check before electricity, ensure the wiring is correct before electricity.

    Package Includes:

    1 x PAM 8610 Digital Stereo Class-D Amplifier Board 2x15W Output
