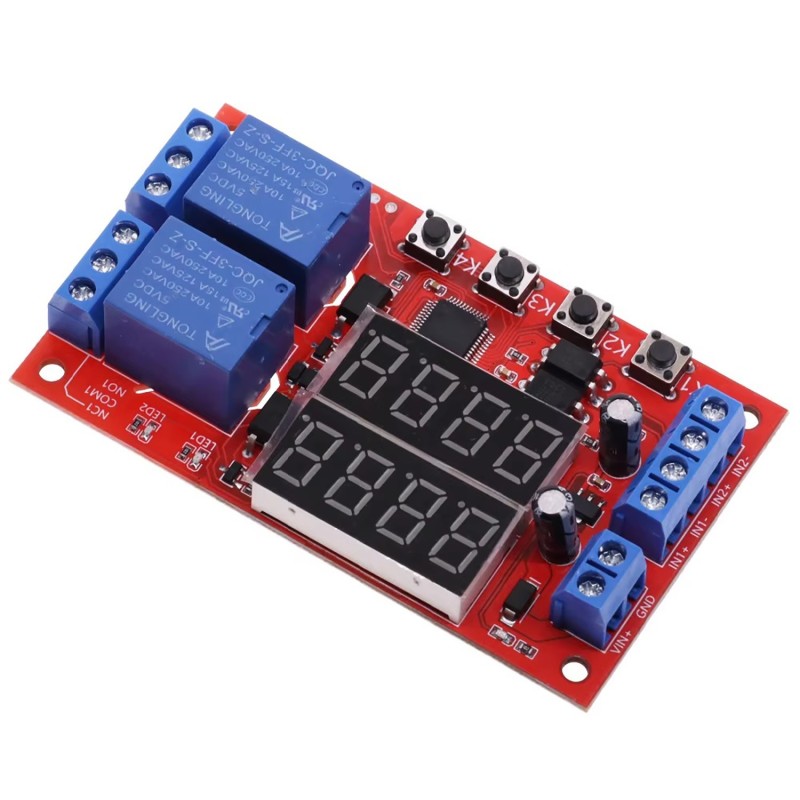

The Adjustable Delay Timer Dual Relay with LED Display 12V is a multifunctional timing controller designed for automation and time-based applications. With its dual relay configuration, it can manage two separate devices independently, providing unmatched flexibility for DIY projects, motor control, lighting automation, and industrial systems. Featuring an adjustable delay time ranging from 0.01 seconds to 9990 minutes, this module ensures precise control over switching operations. The intuitive LED display simplifies configuration and monitoring, while its robust 12V design supports both AC and DC loads up to 10A. Built-in safety features such as overvoltage, anti-reverse, and surge protection enhance reliability and extend service life, making it a must-have for any automation enthusiast or professional engineer. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Wide Timing Range: Adjustable delay from 0.01 seconds to 9990 minutes to suit different automation tasks.
LED Display Interface: Clear digital display ensures easy setup, real-time monitoring, and mode indication.
Multiple Control Modes: Supports inching, self-locking, delay, and cycle timing functions.
Comprehensive Signal Support: Accepts both switching and high/low-level signal inputs.
High Power Output: Handles up to 10A for both AC and DC loads, ensuring compatibility with most devices.
Safety Protection: Built-in anti-reverse polarity, anti-surge, and overvoltage protection extend module life.
User-Friendly Design: Easy wiring terminals and plug-and-play interface simplify installation.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Motor Control: Automate motor start/stop operations with programmable delay.
Lighting Automation: Perfect for LED lighting, garden lights, and timed lamp circuits.
Water Pumps & Solenoids: Control irrigation, water flow, and industrial valves efficiently.
Home Automation: Create smart home timing systems for fans, alarms, or appliances.
DIY Electronics: Ideal for hobbyists and engineers building custom automation or timing solutions.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Operating Voltage | DC 12V |
| Relay Channels | 2 (Dual Relay) |
| Maximum Load | 10A (AC/DC) |
| Adjustable Time Range | 0.01 Seconds – 9990 Minutes |
| Signal Input Type | Switching Signal / High or Low Level Signal |
| Display Type | LED Digital Display |
| Control Modes | Inching, Self-locking, Delay, Timed Cycle |
| Protection Features | Anti-reverse Connection, Anti-surge, Overvoltage |
| Output Type | Relay Output (NO/NC Contacts) |
| Application Areas | Automation, Motor Control, Lighting, Pump Systems |
| Operating Temperature | -20°C to +70°C |
| Module Dimensions | Approx. 70mm × 45mm × 18mm |
| Shipment Weight | 0.075 kg |
| Shipment Dimensions | 8 × 5 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:

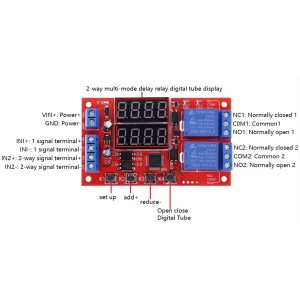

How to Use the Adjustable Delay Timer Dual Relay
- Power Connection – Connect the module to a 12V DC power source.
- Load Connection – Attach the two devices (motor, LED, pump, etc.) to the relay outputs.
- Set Delay Time – Use the LED display to adjust the delay from milliseconds to hours.
- Choose Signal Type – Supports switching signals or high/low-level signals.
- Activate & Monitor – Once configured, the timer will automate your devices precisely.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x Adjustable Delay Timer Dual Relay with LED Display 12V
