12V 1 Channel Latching Relay Module with Touch Bistable Switch & MCU Control

Reference RBD-3414

12V 1-Channel Latching Relay Module with Touch Bistable Switch and MCU control.
Supports self-locking relay mode – one press ON, another press OFF.
High-quality SONGLE relay rated for 250V AC / 30V DC at 10A load
Reverse power protection and low-level trigger compatibility.
Ideal for home automation, factory control, and smart power systems.

Description
Product Details

Description

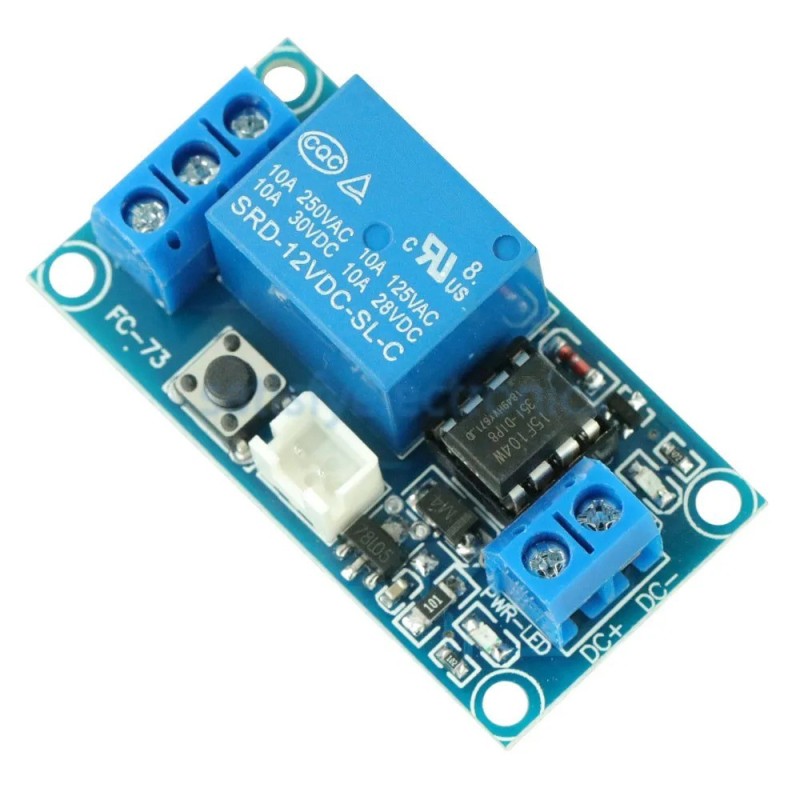

The 12V 1 Channel Latching Relay Module with Touch Bistable Switch & MCU Control is designed for reliable, stable, and efficient switching operations in automation and power management systems. Featuring MCU-based control, it provides excellent stability and anti-interference capability, while the self-locking bistable function allows easy ON/OFF toggling using a single button press. Equipped with a high-quality SONGLE relay, it supports AC loads up to 250V/10A and DC loads up to 30V/10A. The onboard touch switch allows direct manual control, and the module also supports external low-level triggering from microcontrollers or sensors. Built on a durable double-layer PCB with reverse polarity protection and voltage regulation, this relay module is perfect for smart home automation, industrial equipment control, and high-voltage switching applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

MCU-Controlled Operation – Ensures high stability and anti-interference performance.
Latching (Self-Locking) Relay Function – Toggle ON/OFF with a single touch or external trigger.
Touch Bistable Switch – Built-in touch control for easy manual operation.
External Trigger Support – Compatible with low-level signal input from switches or sensors.
High-Quality SONGLE Relay – Supports up to 250V AC 10A or 30V DC 10A loads.
Reverse Polarity Protection – Prevents damage from incorrect power wiring.
Voltage Regulation Circuit – Maintains reliable voltage and extends lifespan.
Dual-Layer PCB Design – Improves current stability and thermal management.
Long Operating Life – Up to 1,000,000 switching cycles.
Compact Design – Easily fits into embedded and automation systems.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Home Automation – Control lights, fans, or appliances.
Industrial Equipment Control – Manage pumps, motors, or machines.
Smart Energy Systems – Automate power distribution or relay switching.
DIY Projects – Integrate with Arduino or ESP-based automation setups.
Factory Automation – Used for control panels and automated machinery.
Sensor-Based Control – Works with PIR, temperature, or other sensor triggers.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Model	12V 1-Channel Latching Relay Module
Control Type	MCU-Controlled Touch Bistable Relay
Supply Voltage	12V DC
Supply Current	<100mA
Load Capacity (AC)	250V 10A
Load Capacity (DC)	30V 10A
Relay Type	SONGLE High-Quality Relay
Trigger Mode	Low-Level Trigger
Touch Switch	Integrated
Reverse Protection	Yes
PCB Type	Double-layer copper PCB
Module Lifespan	1,000,000 cycles
Operating Temperature	-20°C to +70°C
Material	FR-4 PCB with copper traces
Dimensions	Compact PCB with ventilation slots
Country of Origin	China
Shipment Weight	0.030 kg
Shipment Dimensions	5 × 4 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 12V 1 Channel Latching Relay Module with Touch Bistable Switch & MCU Control
