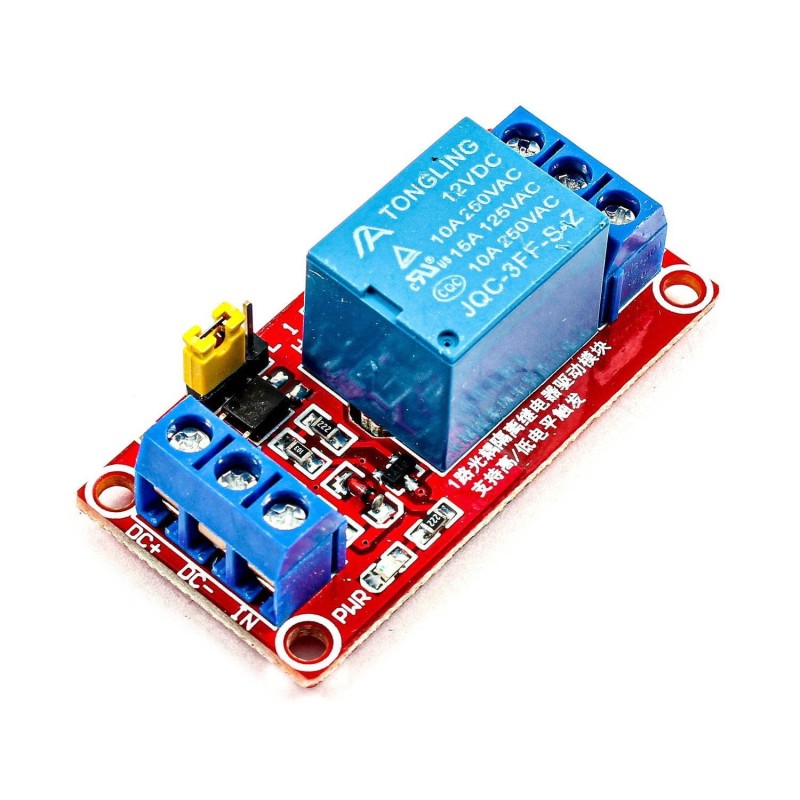

    1-Channel Relay Module - 12V (High and Low Level Trigger)

    RBD-3445

    • 1-Channel 12V Relay Module for switching high-voltage loads
    • Selectable High or Low level trigger via onboard jumper
    • Supports up to 10A at 250VAC / 30VDC load capacity
    • Compatible with 3.3V and 5V logic systems
    • Screw terminal block for secure load connection
    • Built-in freewheeling diode and LED status indicator
    BDT 135
    BDT 135 BDT 135 BDT 135 BDT 135
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 135 Tax excluded
    BDT 135 Tax included
    BDT 0 Tax
    BDT 135 Tax excluded
    BDT 0 Tax
    BDT 135 Tax included
    Quantity
    In-Stock
    45 Items

    10 people have purchased this item
    45 items in stock
    Description

    The 1-Channel Relay Module – 12V (High and Low Level Trigger) is a reliable switching interface that allows low-voltage microcontrollers to control high-voltage and high-current devices safely. Designed for automation, robotics, and smart home systems, this module operates with a 12V DC supply to energize the relay coil while supporting 3.3V and 5V logic signals through selectable trigger modes.

    Using the onboard jumper, you can easily configure the relay for HIGH-level or LOW-level triggering. Therefore, it offers flexible compatibility with Arduino, STM32, ESP32, Raspberry Pi, and other development boards. The module includes a screw terminal block for convenient wiring and an LED indicator that shows relay activation status.

    Additionally, the built-in freewheeling diode protects the circuit from voltage spikes when switching inductive loads such as motors or solenoids. With a maximum load rating of 10A at 250VAC or 30VDC, this relay module is suitable for controlling lights, appliances, pumps, and industrial equipment. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. Selectable Trigger Mode – Switch between HIGH and LOW trigger levels using the jumper.

    2. 12V Relay Operation – Designed for stable 12V DC coil activation.

    3. High Load Capacity (10A) – Controls AC or DC loads efficiently.

    4. Logic-Level Compatible – Works with 3.3V and 5V control signals.

    5. LED Status Indicator – Provides visual confirmation when relay is active.

    6. Built-in Protection Diode – Suppresses voltage spikes from inductive loads.

    7. Screw Terminal Block – Secure and easy connection for external circuits.

    8. Mounting Holes – Simple installation in enclosures or panels.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. Smart Home Automation – Control lights, fans, and appliances remotely.

    2. Motor Control Systems – Switch motors and pumps safely.

    3. Industrial Automation – Interface microcontrollers with high-voltage equipment.

    4. Robotics & IoT Projects – Manage power circuits in embedded systems.

    5. Security & Alarm Systems – Trigger sirens and safety devices.

    6. Remote Switching Applications – Isolate and control AC/DC loads securely.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    Module Type1-Channel Relay Module
    Operating Voltage12V DC
    Working Current190mA
    Trigger Current3mA – 5mA
    Trigger ModeSelectable High / Low
    Low-Level Trigger Voltage0V – 1.5V
    High-Level Trigger Voltage3V – 5V
    Load Capacity10A at 250VAC / 30VDC
    Terminal TypeScrew Terminal Block
    ProtectionBuilt-in Freewheeling Diode
    IndicatorLED Relay Status
    MountingPre-drilled Holes
    Dimensions50mm × 26mm × 18.5mm
    Shipment Weight0.016 kg
    Shipment Dimensions5 × 3 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    Package Includes:

    1 x 1-Channel Relay Module - 12V (High and Low Level Trigger)

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-3445
    45 Items

    Specific References

    EAN13
    3445
