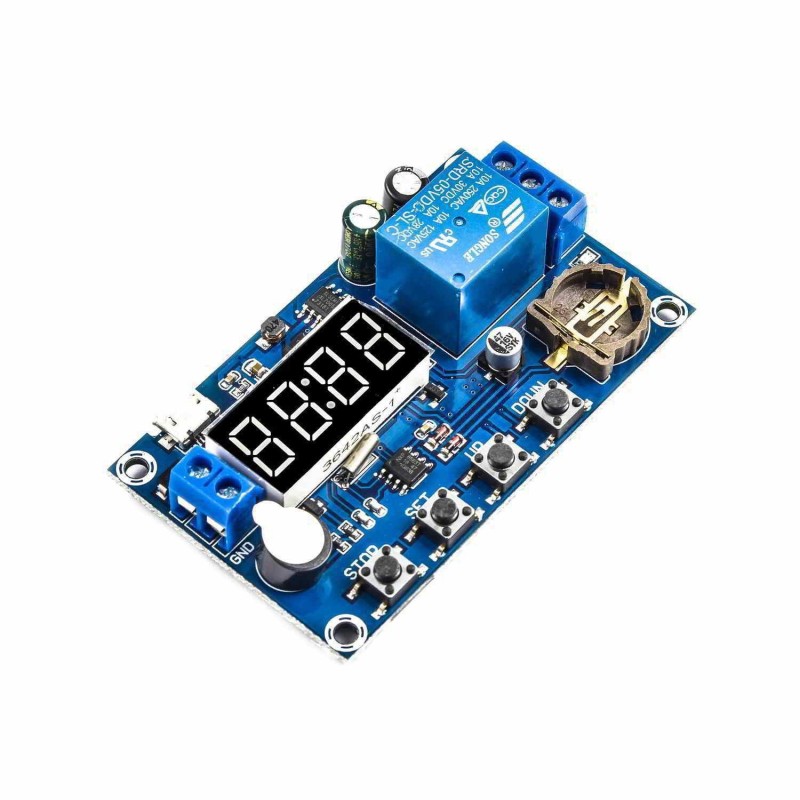

The 5-60V Real Time Delay Timer Relay Module is an intelligent and highly flexible timing control solution designed for advanced automation systems. Supporting a wide DC input voltage range from 5V to 60V, it features a bright LED digital display and allows programming of up to five independent timing periods. With multiple operation modes including daily timing, specific date scheduling, and date-range control, this module offers precise relay management for industrial and DIY projects. Because it includes a buzzer alert, emergency stop function, memory retention, and optional sleep mode, it ensures safe and efficient operation in long-term automation setups. This module is ideal for lighting control, motor scheduling, and smart power management systems. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Wide Voltage Compatibility – Operates reliably between 5V and 60V DC.
Five Programmable Time Periods – Independent PE-1 to PE-5 scheduling.
Multiple Timing Modes (P-1 to P-5) – Supports daily, one-day, specific date, date-range, and custom period timing.
High Timing Precision – Adjustable from 0.1-second resolution to minutes.
LED Digital Display – Clear and bright real-time status monitoring.
Buzzer Alarm Function – Optional audible alert after relay operation.
Emergency Stop Control – Manual ON/OFF relay override button.
Sleep Mode (CP Mode) – Display auto-off option for power saving.
Memory Retention – Stores settings even after power loss.
Flexible Output Modes – Continuous relay control (OUT1) or 1-second pulse output (OUT2).
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Lighting Automation Systems – Schedule lights with daily or date-based timing.
Motor & Pump Control – Set automatic start and stop schedules.
Industrial Automation – Manage process timing with precise relay control.
Agricultural Irrigation Systems – Control watering cycles effectively.
Smart Home Projects – Integrate into IoT-based automation setups.
Scheduled Power Systems – Automate electrical equipment ON/OFF cycles.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Input Voltage | 5V – 60V DC |
| Display Type | LED Digital Display |
| Programmable Periods | PE-1 to PE-5 (5 Periods) |
| Output Type | 1-Channel Relay |
| Output Modes | Continuous ON/OFF or 1-Second Pulse |
| Timing Resolution | 0.1 Seconds to Minutes |
| Alarm Function | Optional Buzzer |
| Emergency Stop | Manual STOP Button |
| Sleep Mode | CP (Display Off) / Od (Display On) |
| Operating Temperature | -20°C to 85°C |
| Memory Function | Yes (Power-Off Retention) |
| Shipment Weight | 0.032 kg |
| Shipment Dimensions | 8 × 5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x 5-60V Real Time Delay Timer Relay Module with LED Display
