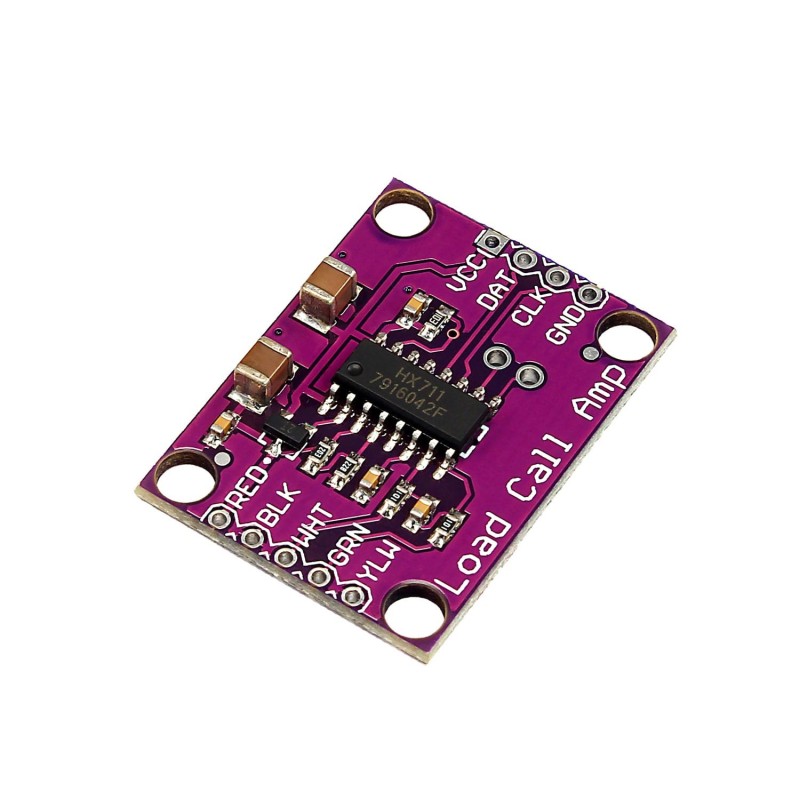

The HX711 ADC Load Cell Amplifier Module – Purple is a high-precision 24-bit analog-to-digital converter specially designed for load cell and weighing applications. It features an integrated amplifier that enables microcontrollers to detect extremely small resistance changes from Wheatstone Bridge-based load cells. Because of its high resolution and stable amplification, it is ideal for digital weighing scales, force sensing systems, and industrial measurement devices.
This module supports two input channels with programmable gain options of 128x for Channel A and 64x for Channel B. Therefore, it allows flexible configuration depending on sensitivity and measurement requirements. The HX711 communicates using a simple two-wire digital interface (Clock and Data), making it easy to integrate with Arduino, STM32, ESP32, and other microcontroller platforms.
With low power consumption and compact 22mm × 22mm size, this module is perfect for embedded, portable, and IoT-based weighing solutions. If your project requires accurate and reliable weight or force measurement, the HX711 module provides a dependable and cost-effective solution. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
24-bit High Resolution ADC – Delivers extremely accurate weight and force readings.
Built-in Programmable Gain Amplifier – 128x gain for Channel A and 64x for Channel B.
Wheatstone Bridge Compatibility – Designed for standard load cell sensors.
Simple Digital Interface – Uses only two microcontroller pins (Clock & Data).
Low Power Consumption – Operates below 1.5mA, ideal for battery-powered systems.
Adjustable Sampling Rate – Supports 10 samples per second (default) or 80 samples per second.
Compact Design – Easy integration into small-scale projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Electronic Weighing Scales – Kitchen scales, luggage scales, and digital balances.
Industrial Weighing Systems – Accurate weight monitoring in production lines.
Force & Pressure Measurement – Robotics and mechanical testing systems.
Smart IoT Monitoring – Remote weight data collection and tracking.
Robotics Projects – Force feedback and weight sensing applications.
DIY Embedded Projects – Custom weight and measurement systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Chipset | HX711 |
| ADC Resolution | 24-bit |
| Amplification Gain | 128x (Channel A), 64x (Channel B) |
| Operating Voltage | 2.7V – 5.5V |
| Operating Current | < 1.5mA |
| Data Output Rate | 10SPS / 80SPS |
| Input Type | Wheatstone Bridge Load Cell |
| Interface | 2-Wire Digital (Clock & Data) |
| Module Dimensions | 22mm × 22mm |
| PCB Color | Purple |
| Shipment Weight | 0.004 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x HX711 ADC Load Cell Amplifier Weighing Module – Purple
