    Digital Electronic Weighing Sensor (Scale 5 Kg) Loadcell Robotics Bangladesh
    • Digital Electronic Weighing Sensor (Scale 5 Kg) Loadcell Robotics Bangladesh

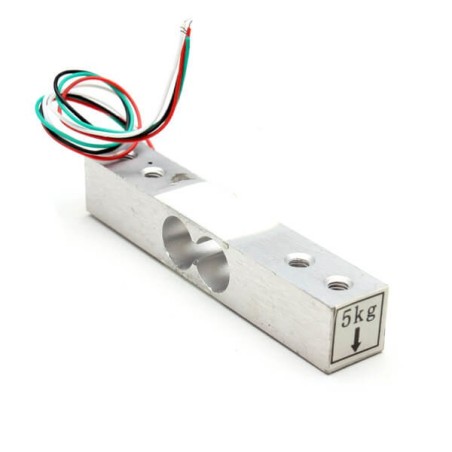

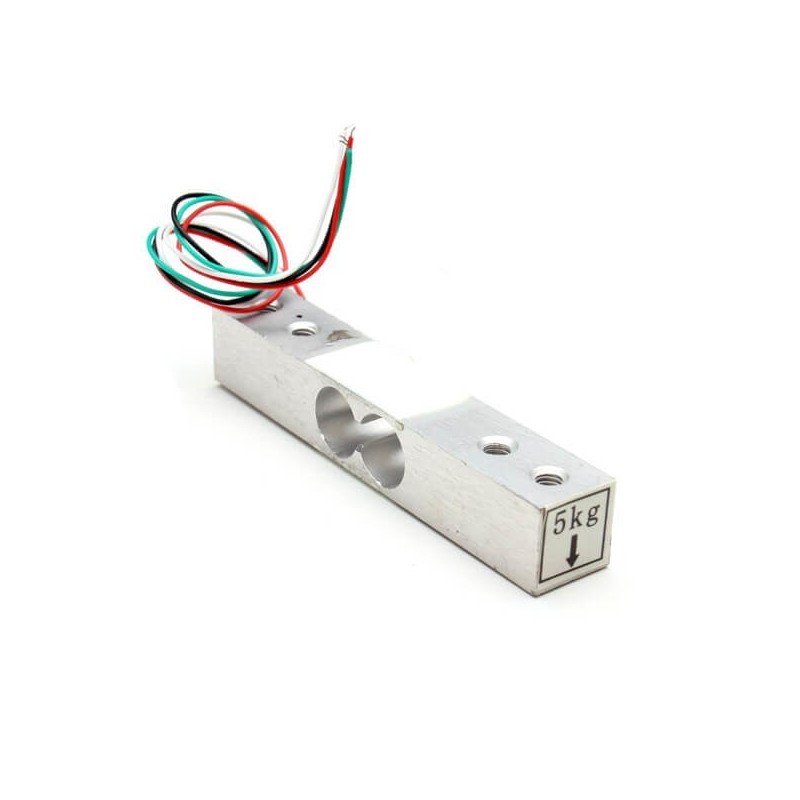

    Weighing Load Cell Sensor 5kg

    RBD-1018

    • Dimensions: 75 x 13 x 13 mm (L x W x H)
    • Range: 5 kg
    • Cable Length: 18 cm
    • Fitting ScrewHole Size:  M3
    • Rated output: 1.0 0.1mV / V
    • Nonlinear: 0.05% F.S
    • Hysteresis: 0.0% F.S
    • Repeatability: 0.05% F.S
    BDT 380
    BDT 380 BDT 380 BDT 380 BDT 380
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 380 Tax excluded
    BDT 380 Tax included
    BDT 0 Tax
    BDT 380 Tax excluded
    BDT 0 Tax
    BDT 380 Tax included
    Quantity
    In-Stock
    13 Items

    221 people have purchased this item
    13 items in stock
    Description

    This straight bar load cell (sometimes called a strain gauge) can translate up to 5 kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar.

    With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 1KG of weight  RoboticsBD

    It has Four lead wires which can be connected to  HX711 A/D PRESSURE SENSOR  It is easy to use with driving voltage 5-10V and produce the output voltage as per the force changes over it. RoboticsBD

    Installation of the Sensor is also the simple task, it needs to fix one end through the screw hole and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Connection Diagram with Arduino via HX711:

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    ModelYZC-131A
    MaterialAluminum
    Dimensions in mm (LxWxH)75x13x13
    Weighing Range (Kg)0 ~ 5
    Rated Output1.0 ± 0.1mV / V
    Non Linear Output± 0.03% F.S
    Hysteresis0.0% F.S
    Repeatability0.05% F.S
    Creep(5 minutes) 0.05% F.S
    Cable Length (cm)18
    Zero Balance± 0.1 mV / V
    Impedance (Ω)1066 ± 10% Ω
    Output Impedance1000 ± 10% Ω
    Temperature Effect on Output0.003% F.S / C
    Operating Temperature Range (°C)-21 to 40
    Weight (gm)29
    Insulation Resistance (MΩ)2000
    Shipment Weight0.08 kg
    Shipment Dimensions8 × 3 × 1 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes:

    1 x Weighing Load Cell Sensor 5kg YZC-131 With Wires.
