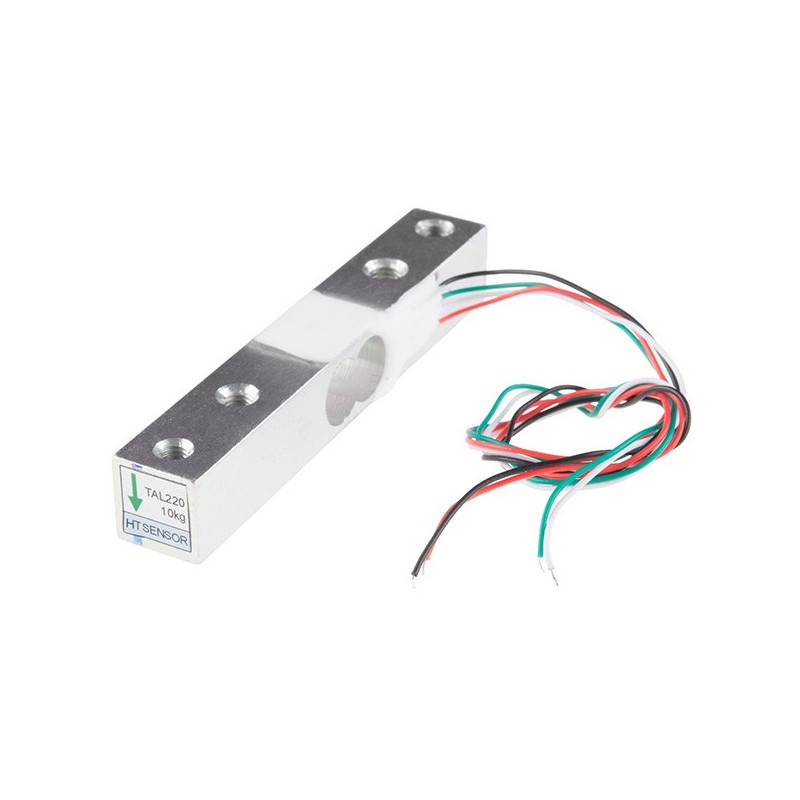

Weighing Load Cell Sensor 10kg

Reference RBD-3113

YZC-133 strain gauge-based load cell with 10kg capacity for accurate weight measurement
Converts applied force or pressure into electrical signals for digital processing
Aluminum alloy construction ensures high strength and long-term stability
Compatible with HX711 ADC module for Arduino and industrial applications
Provides 1.0 ± 0.1mV/V rated output with excellent linearity and repeatability
Ideal for electronic weighing scales, automation, and force-sensing projects

Description
Product Details

Description

The Weighing Load Cell Sensor 10kg (YZC-133) is a high-precision strain gauge sensor designed to measure force, pressure, or weight accurately. This straight bar load cell can sense loads up to 10kg and outputs an electrical signal proportional to the applied force, allowing integration with microcontrollers and ADC modules like HX711. Built with durable aluminum alloy, it offers excellent linearity, repeatability, and resistance to deformation under stress. Its four-wire configuration is compatible with standard Wheatstone bridge circuits, ensuring reliable and stable measurements. The sensor operates on a 5–10V excitation voltage and features a 1.0 ± 0.1mV/V output, suitable for digital weighing systems, automation projects, and research applications. Easy to mount using screw holes, this load cell provides an efficient way to measure static or dynamic loads, making it perfect for creating custom weighing scales or force-sensing instruments with Arduino or Raspberry Pi. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High Accuracy: Measures weight or force up to 10kg with low non-linearity (±0.03% F.S).
Strong Build: Made from high-quality aluminum alloy for durability and stability.
Analog Output: Produces 1.0 ± 0.1mV/V signal proportional to applied force.
HX711 Compatible: Works seamlessly with HX711 24-bit ADC for precise readings.
Four-Wire Design: Standard Wheatstone bridge configuration ensures reliability.
Easy Installation: Mounting holes for simple and secure setup.
Versatile Application: Ideal for weighing, automation, and experimental force measurement.
Stable Performance: Maintains consistent readings with low drift over time.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Electronic Weighing Scales: Core sensor for digital and smart weighing machines.
Robotics & Automation: Measures load, force, or pressure in mechanical systems.
Industrial Process Control: Used in weight-based automation or packaging systems.
DIY & Academic Projects: Ideal for Arduino-based weight measurement experiments.
Force Measurement Systems: Monitors pressure and deformation in testing applications.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Model	YZC-133
Type	Straight Bar Load Cell
Capacity	10kg
Rated Output	1.0 ± 0.1mV/V
Non-Linearity	±0.03% F.S
Impedance	1115 ± 10% Ω
Excitation Voltage	5–10V DC
Output Signal	Analog Voltage
Material	Aluminum Alloy
Number of Wires	4
Recommended Interface	HX711 24-bit ADC
Mounting	Screw Hole Fixing
Operating Temperature	-10°C to +60°C
Shipment Weight	0.0291 kg
Shipment Dimensions	8 × 2 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Wheatstone bridge formation of Load Cell:

HX711 (24 bit Analog to Digital Converter)

HX 711 is a precision 24-bit analog to digital converter (ADC) specially designed for weighing scales and industrial control applications to interface directly with a bridge sensor.

Simply connect Load cell wires to the HX711 module based on their color, then connect DAT (Data) pin to Arduino Analog pin A1 and connect CLK (Clock) pin to Arduin0 Analog pin A0, Put Vcc and GND supply from Arduino power source pins.

Package Includes:

1 x Weighing Load Cell Sensor 10kg
