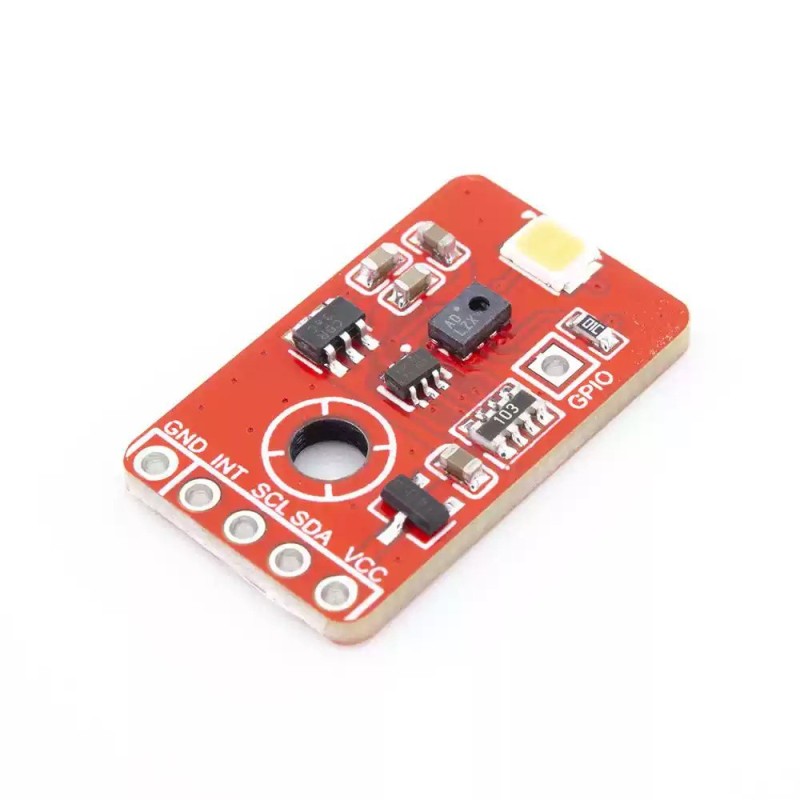

The AS7341 is an advanced 11-channel multispectral color and light sensor, ideal for color analysis, ambient light monitoring, and spectral research.
It measures light intensity across multiple wavelengths from 350 nm to 1000 nm, covering visible and near-infrared (NIR) regions, making it suitable for both color sensing and environmental light analysis.
The sensor integrates 6 independent ADC channels for simultaneous parallel sampling and multiple optical filters to capture detailed spectral data.
It features 8 visible-light channels, 1 near-infrared (NIR) channel, and 1 clear channel (no filter). An additional flicker detection channel helps detect ambient light flicker at 50 Hz or 60 Hz, providing valuable environmental insights.
The AS7341 also supports GPIO synchronization output and I²C communication, making it easy to interface with microcontrollers such as Arduino, ESP32, and Raspberry Pi.
Specifications
| Parameter | Description |
|---|
| Operating Voltage | 3.3V – 5V |
| Communication Interface | I²C |
| Optical Channels | 11 (8 visible + 1 NIR + 1 clear + 1 flicker detection) |
| Spectral Range | 350 nm – 1000 nm |
| Operating Temperature | -40°C to +85°C |
| Humidity Range | 5% – 85% RH |
| Dimensions | 20 mm × 14.2 mm × 3 mm (without pins) |
Features
11 optical channels for detailed light spectrum measurement
Detects visible and near-infrared (NIR) light
Built-in flicker detection for 50/60 Hz light sources
Integrated optical filters using nanometer CMOs technology
I²C digital output for easy integration
Compact design ideal for embedded color sensing systems
Low power consumption and high precision
Applications
Color and light analysis
Spectral sensing and research
Environmental light detection
Agricultural and biological sensing
Smart lighting and display calibration
Industrial color quality control
