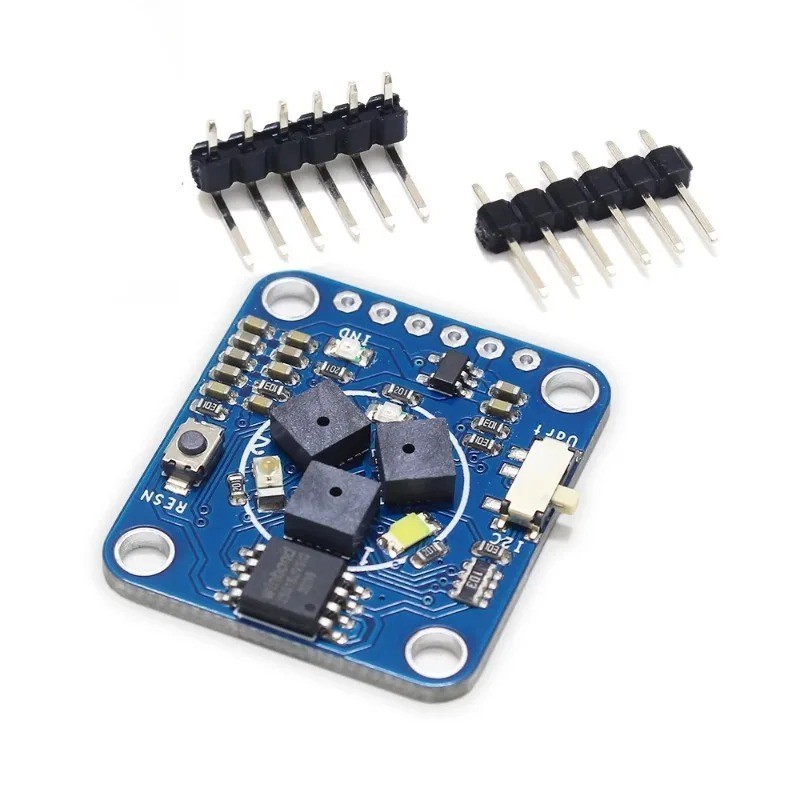

AS7265x 3-in-1 Multispectral Sensor Module – AS72651/AS72652/AS72653 Compatible with STM32 Robotics Bangladesh
  • AS7265x 3-in-1 Multispectral Sensor Module – AS72651/AS72652/AS72653 Compatible with STM32 Robotics Bangladesh

AS7265x 3-in-1 Multispectral Sensor Module – AS72651/AS72652/AS72653 Compatible with STM32

RBD-3731

The AS7265x Multispectral Sensor Module integrates three advanced sensors (AS72651, AS72652, AS72653) into one compact system, providing 18 independent spectral channels covering wavelengths from 410nm to 940nm. Each channel has a 20nm full-width half-maximum (FWHM), making the module ideal for precise spectral fingerprinting, material analysis, spectroscopy, and scientific research.

BDT 14,900
BDT 14,900 BDT 14,900 BDT 14,900 BDT 14,900
Tax excluded Tax includedTax excludedTax includedTax excluded
BDT 14,900 Tax excluded
BDT 14,900 Tax included
BDT 0 Tax
BDT 14,900 Tax excluded
BDT 0 Tax
BDT 14,900 Tax included
Quantity
Out-of-Stock

1 person has purchased this item
There are not enough products in stock
Description

Product Description

The AS7265x Multispectral Sensor Module integrates three advanced sensors (AS72651, AS72652, AS72653) into one compact system, providing 18 independent spectral channels covering wavelengths from 410nm to 940nm. Each channel has a 20nm full-width half-maximum (FWHM), making the module ideal for precise spectral fingerprinting, material analysis, spectroscopy, and scientific research.

With its integrated microcontroller, selectable UART/I2C interfaces, and onboard LED drivers, this module simplifies development and integration with platforms such as STM32, Arduino, and Raspberry Pi. Its high stability across temperature and lifetime ensures reliable long-term performance in professional and industrial applications.

Key Features

  • 18 spectral channels covering visible and near-infrared (410nm – 940nm)

  • 3-chip design (AS72651 as master, AS72652 & AS72653 as slaves)

  • Integrated microcontroller with onboard signal processing

  • Selectable interfaces: UART or I2C

  • Onboard LED drivers for sample illumination without external hardware

  • Stable filter conditions across temperature and aging

  • Low power consumption for mobile and embedded applications

  • Compact module size for easy integration (28.7mm × 25.4mm)

Technical Specifications

  • Sensor Type: 3 chips, 6 channels each (total 18 channels)

  • Wavelength Range: 410 – 940 nm

  • Channel FWHM: 20 nm

  • Supply Voltage: 3.3V – 5V

  • Operating Temperature: -40°C to +85°C

  • Communication Interfaces: UART or I2C

  • Applications: Certification, analysis, material spectroscopy, food quality detection, biomedical research, light source fingerprinting

  • Dimensions: 28.7 × 25.4 mm

Interface Description

  • GND: Ground (power negative)

  • VCC: Power input (3.3V to 5V)

  • SCL: I2C clock / RX (UART receive)

  • SDA: I2C data / TX (UART transmit)

  • INT: Interrupt, low-level trigger

  • RESET: Reset pin, low-level trigger

Applications

  • Food and material spectroscopy

  • Color and light analysis

  • Environmental monitoring

  • Biomedical diagnostics

  • Quality control and industrial sorting

Package Includes

  • 1 × AS7265x 3-in-1 Multispectral Sensor Module

Why Choose This Module?

This multispectral sensor provides professional-grade spectral analysis in a compact, easy-to-integrate design. Its broad wavelength coverage, stable performance, and dual communication options make it an excellent choice for engineers, researchers, and developers working in spectroscopy, sensing, and advanced IoT applications.

Unlock the power of 18-channel multispectral sensing – order now and take your project to the next level!

Product Details
RBD-3731

Specific References

EAN13
3731
