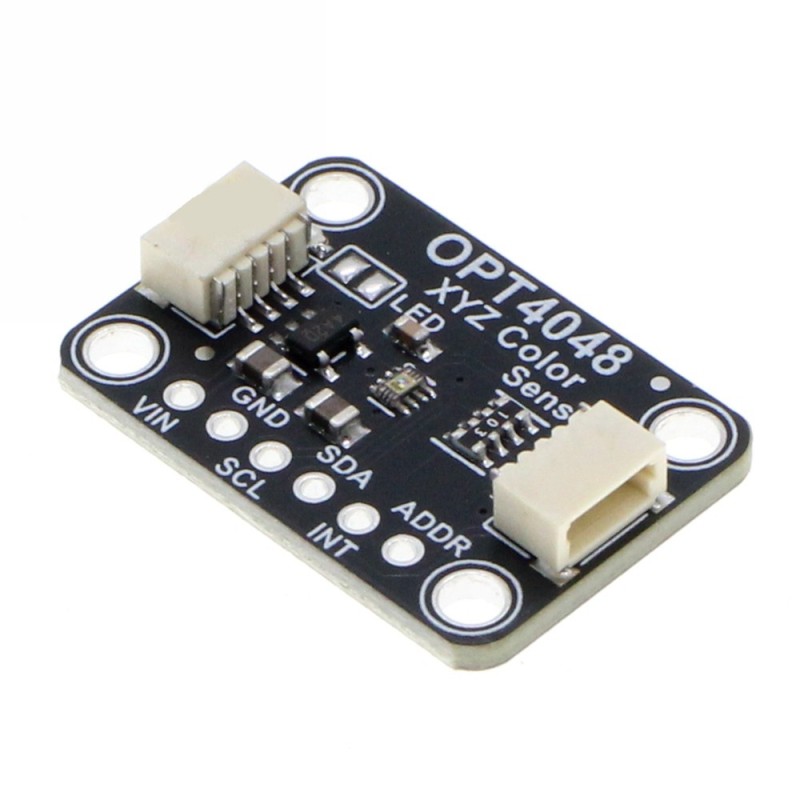

    OPT4048 XYZ Color and Lux Sensor I2C Module – STEMMA QT / Qwiic Compatible Robotics Bangladesh
    • OPT4048 XYZ Color and Lux Sensor I2C Module – STEMMA QT / Qwiic Compatible Robotics Bangladesh
    • OPT4048 XYZ Color and Lux Sensor I2C Module – STEMMA QT / Qwiic Compatible Robotics Bangladesh

    OPT4048 XYZ Color and Lux Sensor I2C Module – STEMMA QT / Qwiic Compatible

    RBD-4081

    The OPT4048 is a high-dynamic-range digital color and light sensor that measures tristimulus XYZ color values along with ambient light intensity. It supports accurate color measurement, color temperature calculation, and lux sensing across a very wide illumination range. This module is suitable for precision optical measurement, display control, and industrial sensing applications.

    BDT 1,399
    BDT 1,399 BDT 1,399 BDT 1,399 BDT 1,399
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 1,399 Tax excluded
    BDT 1,399 Tax included
    BDT 0 Tax
    BDT 1,399 Tax excluded
    BDT 0 Tax
    BDT 1,399 Tax included
    Quantity
    5 Items

    1 person has purchased this item
    Only 5 items left in stock
    Description

    The OPT4048 is a high-dynamic-range digital color and light sensor that measures tristimulus XYZ color values along with ambient light intensity. It supports accurate color measurement, color temperature calculation, and lux sensing across a very wide illumination range. This module is suitable for precision optical measurement, display control, and industrial sensing applications.

    Key Features

    • Tristimulus XYZ color measurement

    • RGB plus Clear channel sensing

    • Wide dynamic range ambient light detection

    • Automatic gain and range switching

    • Adjustable integration time for sensitivity control

    • I2C communication interface

    • STEMMA QT / Qwiic connector available and compatible

    • Adafruit library compatible

    Technical Specifications

    • Sensor Model: OPT4048

    • Sensor Type: Color and ambient light sensor

    • Measurement Channels: X, Y, Z (RGB + Clear equivalent)

    • Light Measurement Range: 0.005 lux to 1,200,000 lux (auto-ranging)

    • Resolution: 23-bit

    • Integration Time: 600 µs to 800 ms per channel

    • Communication Interface: I2C

    • I2C Address: 0x44

    • Operating Voltage (Sensor): 2.25V to 3.6V

    • Breakout Logic Compatibility: 3.3V or 5V

    • Interrupt Support: High and low threshold interrupt

    • Module Dimensions: 25.4 x 17.8 x 5 mm

    • Country of Origin: Made in China

    Applications / Use Cases

    • Accurate color identification and matching

    • Display brightness and color calibration

    • Ambient light and lux measurement

    • Light source quality monitoring

    • Scientific and laboratory light measurement

    • Embedded systems and IoT projects

    Package Includes

    • 1 x OPT4048 color and lux sensor module

    Notes / Warnings

    • QT cable not included

    • Requires an I2C-compatible microcontroller

    • Ensure correct supply voltage and wiring before use

    • For best accuracy, avoid direct sensor obstruction

    The OPT4048 XYZ color and lux sensor module provides precise optical measurement across extreme lighting conditions. With true CIE-based color output, wide dynamic range, and STEMMA QT / Qwiic compatibility, it is well suited for advanced color sensing and light measurement applications.
