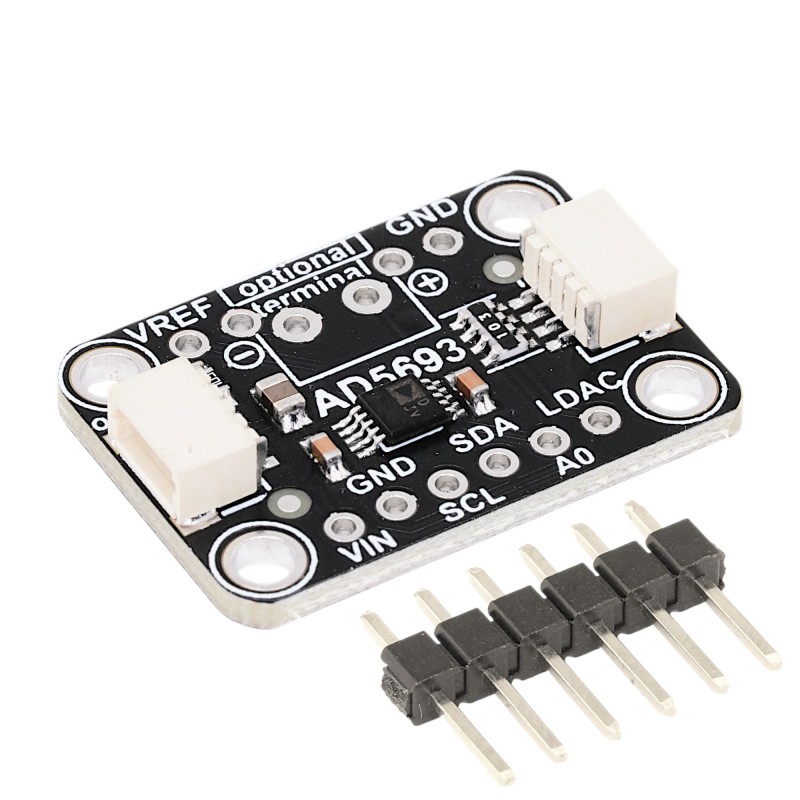

    AD5693R 16-Bit DAC I2C Module – STEMMA QT / Qwiic Compatible

    RBD-4082

    The AD5693R is a high-precision 16-bit digital-to-analog converter (DAC) with an I2C interface and an internal temperature-compensated voltage reference. This breakout module is designed for applications requiring accurate and stable analog voltage output, suitable for embedded systems, instrumentation, and control projects.

    BDT 1,395
    BDT 1,395 BDT 1,395 BDT 1,395 BDT 1,395
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 1,395 Tax excluded
    BDT 1,395 Tax included
    BDT 0 Tax
    BDT 1,395 Tax excluded
    BDT 0 Tax
    BDT 1,395 Tax included
    Quantity
    5 Items

    1 person has purchased this item
    Only 5 items left in stock
    Description

    Short Description

    The AD5693R is a high-precision 16-bit digital-to-analog converter (DAC) with an I2C interface and an internal temperature-compensated voltage reference. This breakout module is designed for applications requiring accurate and stable analog voltage output, suitable for embedded systems, instrumentation, and control projects.

    Key Features

    • 16-bit digital-to-analog conversion

    • I2C communication interface

    • Integrated 2.5V temperature-compensated voltage reference

    • Selectable output range

    • High accuracy and low drift performance

    • STEMMA QT / Qwiic connector available and compatible

    • Adafruit library compatible

    Technical Specifications

    • DAC Model: AD5693R

    • Resolution: 16-bit

    • Communication Interface: I2C

    • I2C Addressing:

      • Default address configurable via A0 pin

      • Supports two devices on the same I2C bus

    • Operating Logic Voltage: 3.3V or 5V

    • Reference Voltage: 2.5V internal reference

    • Output Voltage Range:

      • 0 to 2.5V

      • 0 to 5V (2 × Vref, depending on configuration and supply)

    • Integral Nonlinearity (INL): ±2 LSB maximum

    • Total Unadjusted Error (TUE): ±0.06 percent of FSR maximum

    • Offset Error: ±1.5 mV maximum

    • Gain Error: ±0.05 percent of FSR maximum

    • Reference Drift: 2 ppm per °C typical

    • Glitch Energy: 0.1 nV·s

    • Output Drive Capability: Up to 20 mA

    • Operating Temperature Range: −40°C to +105°C

    Applications / Use Cases

    • Precision voltage generation

    • Analog signal generation

    • Calibration and instrumentation

    • Industrial control systems

    • Embedded and microcontroller-based projects

    • Educational and laboratory use

    Package Includes

    • 1 x AD5693R 16-bit DAC module

    • 1 x Pin header

    Notes / Warnings

    • QT cable not included

    • Output voltage range depends on supply and configuration

    • Requires I2C-compatible microcontroller

    • Optional terminal block footprint available on PCB (not included)

    The AD5693R 16-bit DAC module provides high-resolution, low-drift analog output in a compact form factor. With STEMMA QT / Qwiic compatibility and stable internal reference, it is a reliable solution for precision analog signal generation and control applications.
