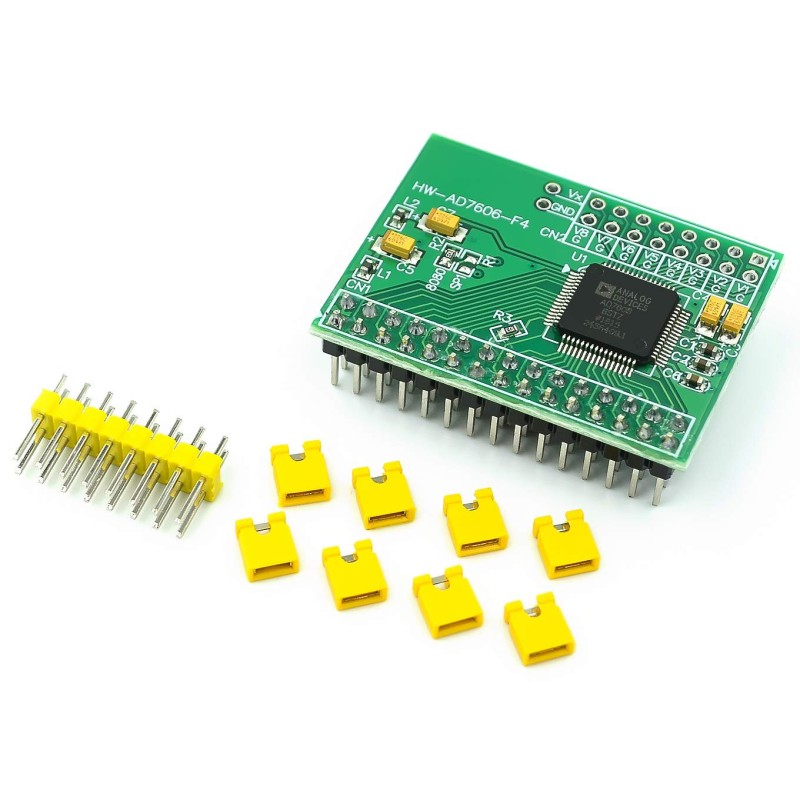

    16-Bit ADC 8 Channel Synchronization AD7606 Data Acquisition Module 200Ksps

    RBD-3184

    • AD7606 16-bit ADC Data Acquisition Module for precision multi-channel analog-to-digital conversion.
    • Supports 8 synchronous input channels for high-speed, real-time data capture.
    • Offers ±5V and ±10V input ranges with configurable IO control.
    • Provides up to 200ksps sampling rate across all 8 channels.
    • Flexible communication interface: SPI or 16-bit parallel for microcontroller integration.
    • Ideal for signal processing, instrumentation, and industrial data acquisition applications.
    BDT 2,990
    BDT 2,990 BDT 2,990 BDT 2,990 BDT 2,990
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 2,990 Tax excluded
    BDT 2,990 Tax included
    BDT 0 Tax
    BDT 2,990 Tax excluded
    BDT 0 Tax
    BDT 2,990 Tax included
    Quantity
    In-Stock
    5 Items

    Only 5 items left in stock
    Description

    The AD7606 16-Bit 8-Channel Data Acquisition Module is a high-performance analog-to-digital converter designed for precise, synchronized data capture across multiple channels. With 16-bit resolution and a maximum sampling rate of 200ksps, this module is perfect for demanding applications like signal processing, instrumentation, and sensor interfacing. It supports both SPI and 16-bit parallel interfaces, allowing seamless integration with a wide range of microcontrollers and processors. Featuring selectable ±5V or ±10V input ranges, built-in voltage reference, and an onboard oscillator, the AD7606 simplifies system design while delivering exceptional accuracy. Compact and versatile, this module is a reliable choice for industrial automation, medical equipment, and environmental monitoring systems. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. High-Precision Conversion: 16-bit resolution ensures accurate digital representation of analog signals.

    2. 8 Simultaneous Inputs: Supports up to eight synchronized analog channels.

    3. Fast Sampling Rate: Achieves up to 200ksps for real-time data collection.

    4. Adjustable Input Ranges: Selectable ±5V and ±10V modes via IO pin.

    5. Flexible Interfaces: Compatible with SPI and 16-bit parallel communication modes.

    6. Noise Reduction: Built-in oversampling options up to 64x improve signal quality.

    7. Integrated Reference & Clock: Simplifies external circuit requirements.

    8. Single Supply Operation: Runs efficiently on a single 5V power input.

    9. Level Adjustable IO: Supports both 3.3V and 5V logic levels through VIO pin.

    10. Compact and Ready to Use: Comes with headers and jumper wires for easy prototyping.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. Signal Processing: Ideal for converting analog sensor data into digital signals.

    2. Instrumentation Systems: Used in data logging and high-resolution measurement setups.

    3. Industrial Automation: Captures sensor and process data for control systems.

    4. Medical Equipment: Enables precision measurement in biomedical instruments.

    5. Environmental Monitoring: Suitable for collecting accurate sensor data from air, temperature, or humidity sensors.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    ModelAD7606 Data Acquisition Module
    ADC Resolution16-bit
    Number of Channels8 (synchronous)
    Input Impedance1MΩ
    Input Range±5V / ±10V (selectable)
    Sampling RateUp to 200ksps
    Oversampling Ratios2x, 4x, 8x, 16x, 32x, 64x
    Communication InterfaceSPI / 16-bit parallel
    Communication Levels3.3V or 5V (selectable via VIO)
    Built-in ReferenceYes
    Built-in OscillatorYes
    Power SupplySingle 5V
    Operating Temperature-40°C to +85°C
    DimensionsCompact PCB design
    ApplicationsData acquisition, signal processing, instrumentation
    Shipment Weight0.0093 kg
    Shipment Dimensions4 × 3 × 2 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    Pin Descriptions
    • OS2, OS1, OS0: Select oversampling ratios.
    • CVA, CVB: Control start of ADC conversion for channels 1–4 and 5–8.
    • RAGE: Select input range (0 for ±5V, 1 for ±10V).
    • RD / SCLK: Read signal or SPI clock.
    • RST: Hardware reset.
    • Busy: Indicates ADC conversion in progress.
    • CS: Chip select for SPI.
    • DB0–DB15: Data bus for 16-bit parallel communication.
    • VIO: Interface voltage (3.3V or 5V).

    Package Includes:

    1 x 16-Bit ADC 8 Channel Synchronization AD7606 Data Acquisition Module 200Ksps
