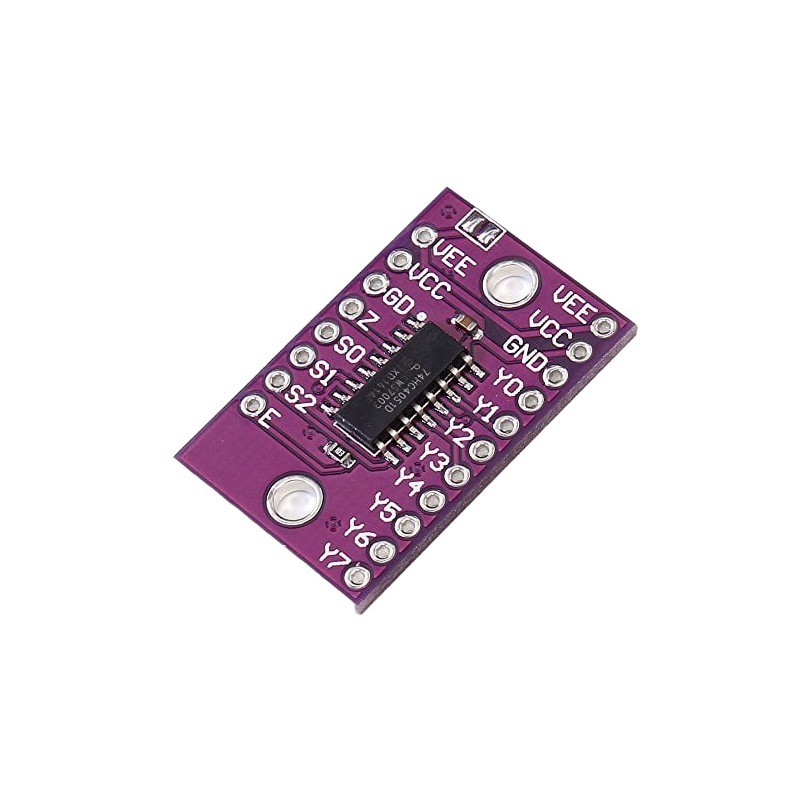

The CJMCU-4051 74HC4051 Analog Multiplexer/Demultiplexer Breakout Board is a versatile module designed for efficient signal routing in Arduino and microcontroller projects. Equipped with the 74HC4051 SP8T analog switch, it provides eight independent channels for input/output selection using three digital control pins (S0, S1, S2). With a wide analog input voltage range of ±5V and low “ON” resistance, it ensures minimal signal loss. Logic level translation allows seamless communication between 5V logic systems and ±5V analog signals. Its compact 30 x 19mm design makes it ideal for prototyping, signal multiplexing, and sensor interfacing. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- 8-Channel Multiplexing: Routes signals efficiently with a single-pole 8-throw analog switch.
- Wide Voltage Compatibility: Supports ±5V analog input voltage range for diverse applications.
- Low “ON” Resistance: Ensures minimal signal loss, with resistance as low as 60 ohms at 9V.
- Logic Level Translation: Facilitates communication between 5V logic and ±5V analog signals.
- Digital Control Inputs: Uses three digital select inputs (S0, S1, S2) for channel selection.
- Compact Design: Small breakout board measuring 30 x 19mm for easy integration.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Signal Multiplexing: Switch between multiple analog signals in electronic projects.
- Sensor Interfacing: Connect multiple sensors to a single analog input pin on microcontrollers.
- Data Acquisition Systems: Streamline input/output selection in DAQ systems.
- Prototyping and Testing: Ideal for testing and prototyping multi-signal circuits.
- Embedded Systems: Perfect for space-constrained applications requiring efficient signal routing.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Chip Model | 74HC4051 |
| Type | Single-pole 8-throw (SP8T) analog switch |
| Analog Voltage Range | ±5V |
| “ON” Resistance | 60-80 ohms (typical, depending on Vcc) |
| Digital Control Pins | S0, S1, S2 |
| Enable Pin | E (HIGH to turn off switches) |
| Logic Level Translation | 5V logic to ±5V analog signals |
| Board Dimensions | 30 x 19 mm |
| Shipment Weight | 0.004 kg |
| Shipment Dimensions | 3 x 2 x 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
Pin Description:
Diagram:
Package Includes:
1 x RoboticsBD
