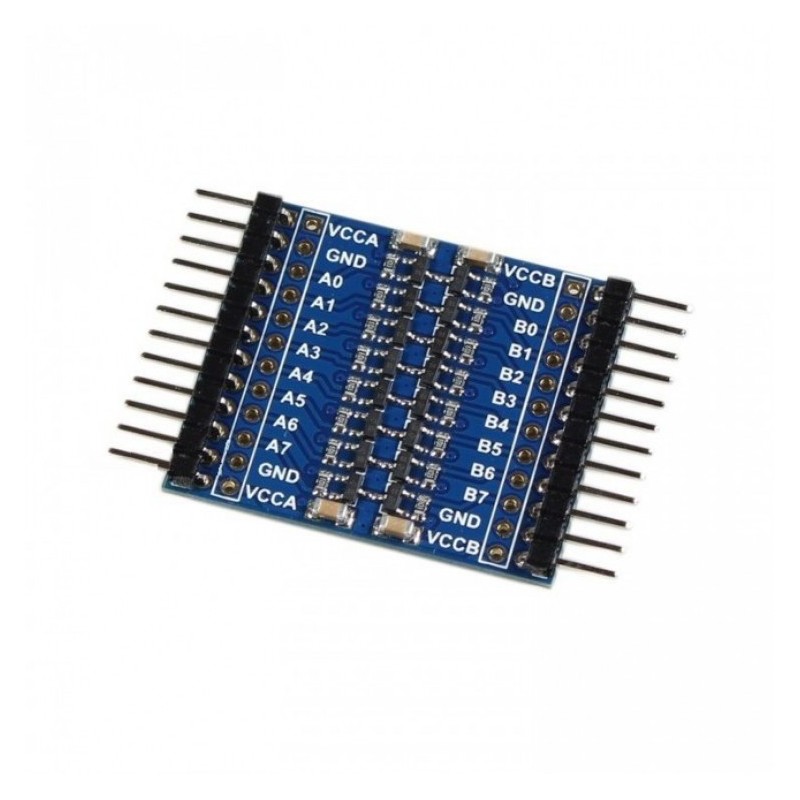

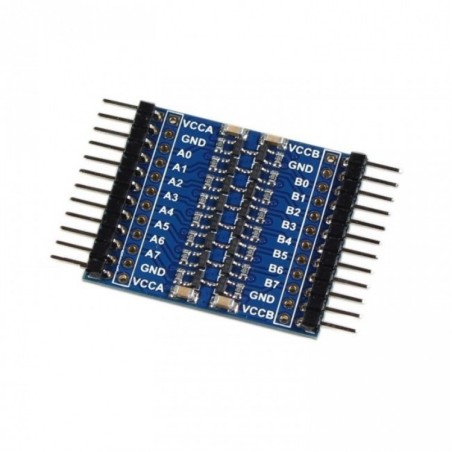

    8 Channel Logic Level Converter Robotics Bangladesh
    • 8 Channel Logic Level Converter Robotics Bangladesh

    8 Channel Bi-Directional Logic Level Converter

    RBD-1368

    The module allows you to exchange data between systems that use the most popular voltages: from 3.3 V to 5.5 V and vice versa. Eight channels allow for connection of various communication interfaces.

    • Voltage level: 1.8V-6V


    • Dimension: 38mm x 31.6mm
    • Conversion  level  range:  1.8 V-6 V
    • Instructions for use:  (3.3 V,  5 V  to  each other)
    • 4 pairs of power supply interfaces, supports more situation
    • Use tantalum capacitors for power filter, provides more stability
    • VCCB 5V  power supply  (can  be an external  5V power supply)
    BDT 200
    BDT 200 BDT 200 BDT 200 BDT 200
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 200 Tax excluded
    BDT 200 Tax included
    BDT 0 Tax
    BDT 200 Tax excluded
    BDT 0 Tax
    BDT 200 Tax included
    Quantity
    In-Stock
    26 Items

    62 people have purchased this item
    1 person recently added this item to the cart
    26 items in stock
    Description

    Raspberry Pi 8 channel Level Switching (3.5V to 5V) IO Module Logic Level Converter is able to convert signals from 5V down to 3.3V (and vice versa) meaning you can safely use 5V or 3.3V devices with the Raspberry Pi (compatible). Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Because raspberries GPIO is  3.3 V, so regular 5 V sensor is not easy.

    Therefore the product realization 8 – channel high – voltage logic and logic low voltage bi-directional transformations embodiment Ax and Bxbi-directional conversion between the two. RoboticsBD

    How to Use?

    In the case of translating between 3.3V and 5V system:

    1.     VCCA/VA connects to the 3.3V power supply
    2.     VCCB/VB connects to the 5V power supply
    3.     GND connects to power negative pole respectively, the two power supply should be common-grounded with each other
    4.     When Ax has TTL 3.3V input, Bx will get TTL 5V output
    5.     When Bx has TTL 5V input, Ax will get TTL 3.3V output
    6.     NO direction control required

    Features :

    1. VCCA Raspberry 3.3 V
    2. 8 channels bidirectional voltage translation between different logic level, translate between Ax and Bx automatically
    3. 4 pairs of power supply interfaces, supports more situation
    4. Use tantalum capacitors for power filter, provides more stability
    5. VCCB 5V  power supply  (can  be an external  5V power supply)
    6. GND connect the negative pole

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    Voltage Level1.8V to 6V
    Conversion Level Range1.8V to 6V
    Weight (gm)4
    Shipment Weight0.005 kg
    Shipment Dimensions6 × 4 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes :

    1 x 8 Channel Logic Level Converter.
