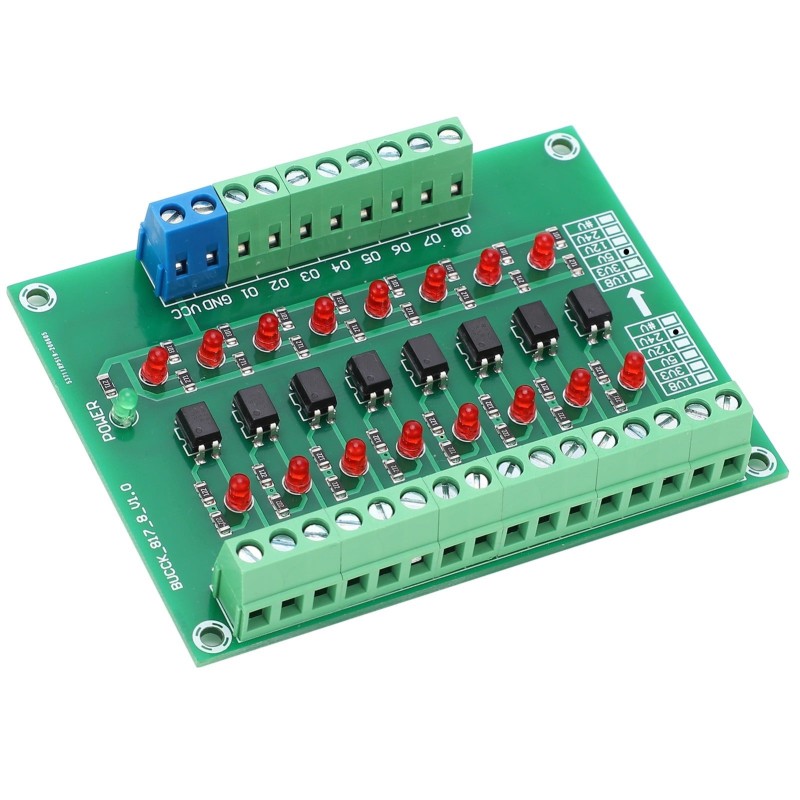

    8 Channel 24V to 5V Optocoupler Isolator Module

    RBD-3577

    This 8-Channel Optocoupler Isolator Module is a high-performance voltage level converter that safely converts signals from industrial PLC systems (24V) to TTL levels (5V), making it ideal for microcontroller and low-voltage logic interfacing. Designed with photoelectric isolation, it ensures signal integrity while protecting your microcontroller or control board from high-voltage surges.

    BDT 1,190
    BDT 1,190 BDT 1,190 BDT 1,190 BDT 1,190
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 1,190 Tax excluded
    BDT 1,190 Tax included
    BDT 0 Tax
    BDT 1,190 Tax excluded
    BDT 0 Tax
    BDT 1,190 Tax included
    Quantity
    4 Items

    1 person has purchased this item
    1 person recently added this item to the cart
    Only 4 items left in stock
    Description

    Product Description:
    This 8-Channel Optocoupler Isolator Module is a high-performance voltage level converter that safely converts signals from industrial PLC systems (24V) to TTL levels (5V), making it ideal for microcontroller and low-voltage logic interfacing. Designed with photoelectric isolation, it ensures signal integrity while protecting your microcontroller or control board from high-voltage surges.

    Key Features:

    • Converts signals from 24V to TTL logic levels (5V)

    • Optocoupler isolation for each channel ensures safe signal separation

    • Supports fast signal conversion up to 20KHz

    • LED indicators per channel for real-time status monitoring

    • Compatible with PLC, Arduino, Raspberry Pi, STM32, and other MCUs

    • Works reliably in a wide operating temperature range of -20℃ to 85℃

    • Industrial-grade reliability with strong anti-interference capability

    Technical Specifications:

    • Channels: 8

    • Input Voltage: DC 24V (signal side)

    • Output Voltage: DC 5V

    • Output Current: ~15mA per channel

    • Frequency: Up to 20KHz

    • Isolation Method: Optocoupler

    • Operating Temperature: -20℃ to 85℃

    • Humidity: 5% to 95% RH

    • Dimensions: 95 x 72 x 18mm

    Applications:

    • PLC to MCU signal conversion

    • Industrial automation and control systems

    • CNC equipment signal interfacing

    • Robotics signal integration

    Package Includes:

    • 1 x 8-Channel Optocoupler Isolator Signal Converter Module

    Why Choose This Module?
    This module is ideal for integrating 24V industrial output signals into low-voltage electronics projects. With robust optocoupler isolation, status LEDs, and support for high-speed signal conversion, it's a must-have for any automation, control, or interfacing application.

    Build safer, smarter systems today—add this signal isolator module to your toolkit and connect your PLCs to microcontrollers with confidence!
