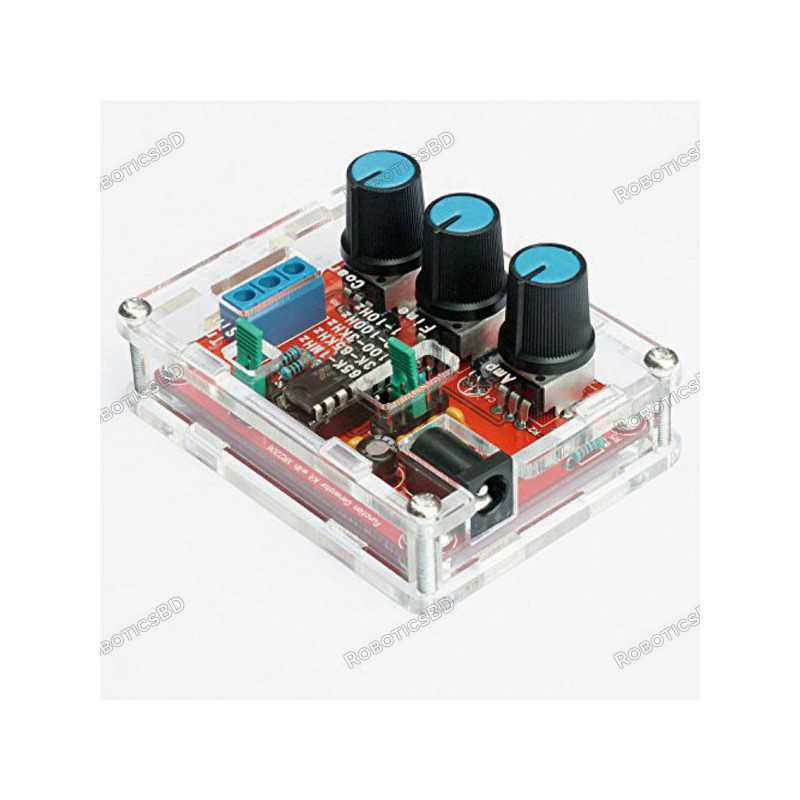

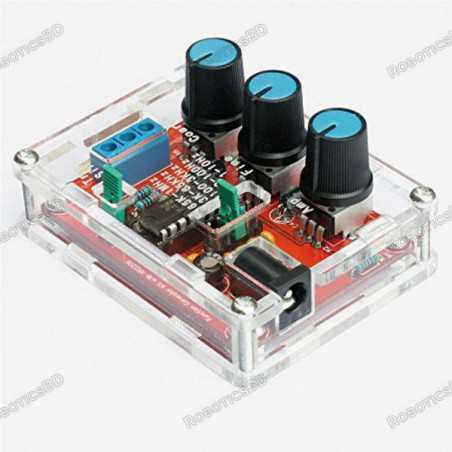

This is a Function Generator Kit that comes pre-soldered and with a compatible case. This function generator works on supply voltage from 9V to 12VDC, it can generate square, sine, and triangle waveform with frequency from 1Hz to 1MHz. The amplitude of the waveforms can be in the range of 0-3VDC. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Pin Description:
Do you need a 5D navigation button module? Here we have Five Direction Navigation Button Module especially for you. You can use it for MCU AVR Game 5D Rocker Joystick and as an Independent Keyboard for Arduino Joystick Module. RoboticsBD
SINE WAVE
- Amplitude: 0-3V at 9V DC Input
- Distortion: Less than 1% (at 1KHz)
- Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
- Amplitude: 8V (no load) at 9V DC Input
- Rise Time: Less than 50ns (at 1KHz)
- Fall Time: Less than 30ns (at 1KHz)
- Symmetry: Less than 5% (at 1KHz)
TRIANGLE WAVE
- Amplitude: 0-3V at 9V DC Input
- Linearity: Less than 1% (up to 100KHz) 10mA
Features:
- High-Resolution Signal Generator.
- Can Generate Sine/Triangle/Square Waves.
- Adjustable Frequency and Amplitude.
- Frequency Adjustment Supports Coarse and Fine Tuning.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model | XR2206 |
| Operating Voltage (VDC) | 9-12 |
| Operating Frequency | 1Hz-1MHz |
| Supported Waveforms | Sine, Square, Triangle |
| Amplitude of Waveform | 0-3VDC |
| Distortion | Less than 1% |
| Flatness | =+0.005dB |
| Shipment Weight | 0.066 kg |
| Shipment Dimensions | 13 × 9 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
The welding installation considerations, follow these steps:
- The components are welding the front board, from low to high principles, namely the first low welding components, such as, capacitor, resistor, diode, etc.
- Welding IC socket, terminal blocks, finally power socket, adjustable potentiometer.
- The back with a diagonal cutting pliers to cut short the pins as far as possible.
Debugging steps:
- After completion of welding on IC, XR2206, pay attention to the direction of IC, insert the might damage the chip!
- Check the IC whether against, such as anti please timely correction.
- Insert the power supply, power supply for 5.5 * 2.1 port, inside outside is negative polarity. For 9-12 v power supply voltage. The waveform may not be stable for more than 12V.
Using the step
- J1 jumper cap plug in, SIN/TRI blue terminals output sine wave (note J1, J2 can only insert one of)
- J2 jumper cap plug in, SIN/TRI blue terminals output triangular wave (note J1, J2 can only insert one of)
- SQU blue terminals output pulse
- AMP : Sine wave, triangle wave amplitude adjustment
- FINE : Frequency fine adjustment
- Coarse : Frequency of coarse adjustment
Package Includes:
1 x XR2206 High Precision Signal Generator
1 x Acrylic Case For Signal Generator.
