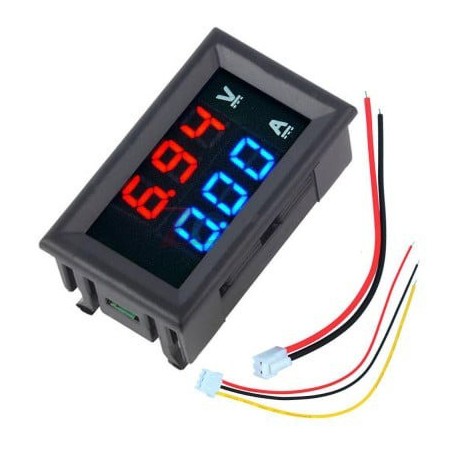

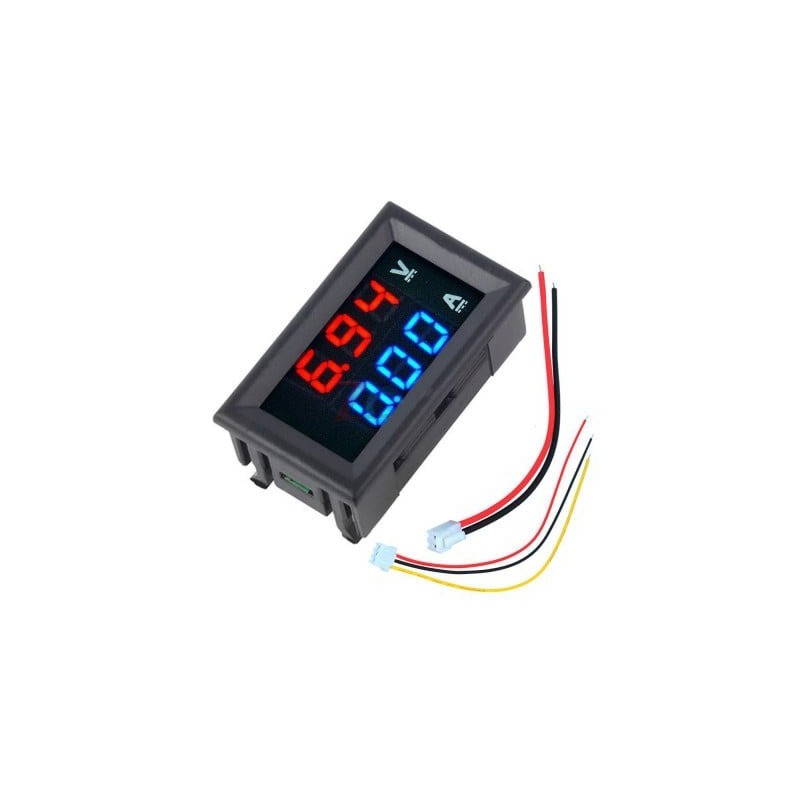

    DC 0-100V 100A Voltage and Current Dual LED Display Panel Meter Robotics Bangladesh
    • DC 0-100V 100A Voltage and Current Dual LED Display Panel Meter Robotics Bangladesh

    DC 0-100V 10A Voltage and Current Dual LED Display Panel Meter

    RBD-3559

    1. Operating current: 20mA
    2. Operating voltage: DC 4.5 ~ 30V
    3. Minimum resolution(V): 0.1V
    4. Minimum resolution(A): 0.01A
    5. Display color: Red and Blue (two-color display)
    6. Measure accuracy: 1%

    7. Dual Led 0.28 ” Display for DC0-100V 10A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red Blue 10A
    BDT 350
    BDT 350 BDT 350 BDT 350 BDT 350
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 350 Tax excluded
    BDT 350 Tax included
    BDT 0 Tax
    BDT 350 Tax excluded
    BDT 0 Tax
    BDT 350 Tax included
    Quantity
    28 Items

    2 people have purchased this item
    28 items in stock
    Description

    Display Voltage and current simultaneously in different colors, red for Voltage and blue for current (the current is Measured in the negative rail). 2 Require external power supply; with reversed connection protection. 3 Ground wire of testing end and power supply terminal is the same wire; quick refresh of about 500 MS/time. 4 With built-in shunt, has Voltage and current calibration potentiometers. Applications: Suitable for automotive/electric cars/motorcycles battery monitoring or other product’s voltage current measurement


    Features:

    1. Rapid response recovery characteristics.
    2. It Has a long life and reliable stability.
    3. High precision, four digital displays.
    4. Minimum resolution(V): 0.1V
    5. Minimum resolution(A): 0.01A
    6. Display: three 0.28″ LED digital tube
    7. Display color: Red and Blue (two-color display)
    8. Mounting cutout: 45.5 x 26.5mm
    9. Refresh rate: about 500mS / times
    10. Operating temperature: -10 to 65ºc
    11. Operating Humidity: 10 to 80% (non-condensing)

    Package Includes:

    1 x Dual Led 0.28 ” Red Blue Display for DC.0-100V 10A Voltage and Current Test Digital Instrument.

    Product Details
    RBD-3559
    28 Items

    Specific References

    EAN13
    3559
