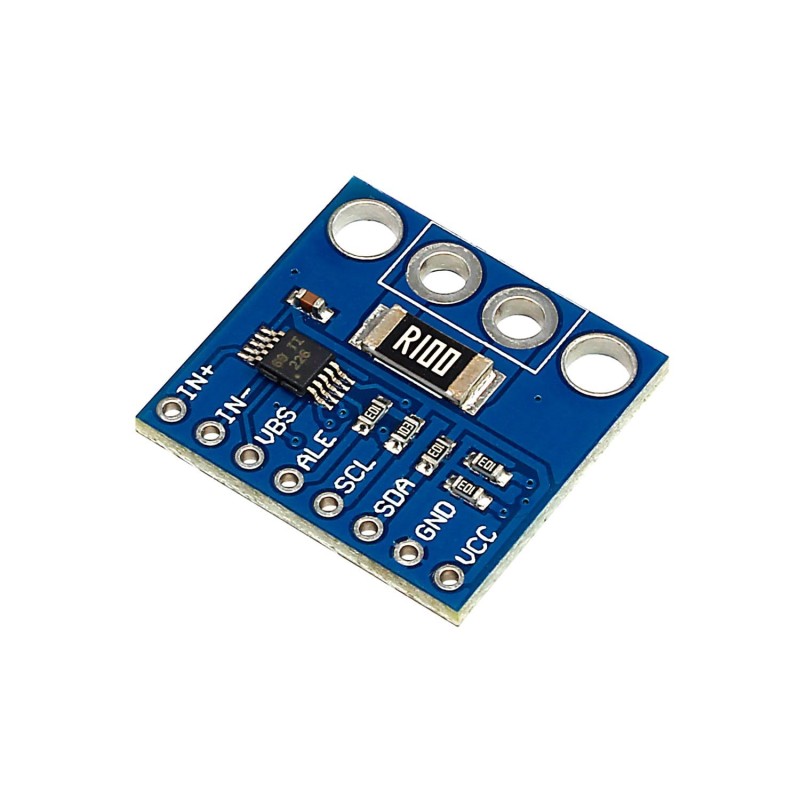

The INA226 Voltage Current Power Monitoring Module is a high-accuracy, I²C-based power sensing device designed for precise voltage, current, and power measurement in electronic systems. Featuring a 16-bit ADC resolution, it delivers detailed real-time monitoring with exceptional stability and 0.1% gain accuracy. The module supports both high-side and low-side current sensing, making it suitable for a wide variety of circuit designs. With an input voltage range of 0V to 36V and a common-mode rejection ratio of 126dB, it ensures accurate readings even in noisy environments. The INA226 also includes a programmable alert function for overcurrent and undervoltage conditions, providing additional safety and control. Perfect for battery management systems, IoT devices, robotics, and industrial automation, this module is a must-have for engineers and developers working on energy-efficient designs and power optimization projects. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
High-Precision Monitoring: Measures voltage, current, and power with 0.1% accuracy.
16-Bit Resolution: Ensures highly accurate data for power and current calculations.
Wide Voltage Range: Monitors voltages up to 36V and supports 3.3V–5.5V operation.
High-Side & Low-Side Sensing: Offers flexible configuration options for current measurement.
I²C Interface: Communicates easily with microcontrollers such as Arduino and Raspberry Pi.
Ultra-Low Offset Voltage: 10µV maximum for sensitive current detection.
Programmable Alerts: Adjustable threshold alerts for overcurrent, overvoltage, or undervoltage events.
Low Power Operation: Suitable for portable and battery-powered applications.
Wide Temperature Range: Operates from -40°C to +125°C, ideal for industrial environments.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Battery Management Systems: Accurately track voltage and current in power banks and EV systems.
IoT Devices: Optimize power consumption and monitor energy usage in connected systems.
Industrial Equipment: Monitor power draw and performance in automation and machinery.
Energy Efficiency Projects: Measure power usage to improve energy conservation in homes or factories.
Robotics: Track and regulate power consumption in motors and controllers.
Overcurrent Protection: Implement automatic cutoff or alert systems in electronic circuits.
Educational & Research Projects: Ideal for electronic diagnostics and circuit performance analysis.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Sensor Model | INA226 |
| Operating Voltage | 3.3V – 5.5V |
| Common Mode Voltage | 0V – 36V (max) |
| ADC Resolution | 16-bit |
| Input Offset Voltage | 10µV (max) |
| Offset Drift | 0.02µV/°C (typical) |
| Common Mode Rejection Ratio (CMRR) | 126dB (min) |
| Bandwidth | 7kHz |
| Communication Interface | I²C (Address: 0x40–0x47) |
| I²C Clock Speed | 400kHz (max) |
| Special Functions | Alert Function, Bi-Directional Current Sensing |
| Power Consumption | Low Power Operation |
| Operating Temperature | -40°C to +125°C |
| Module Dimensions | Approx. 25mm × 15mm × 8mm |
| Shipment Weight | 0.012 kg |
| Shipment Dimensions | 3 × 2 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
How to Use
Connect the INA226 Module to a Microcontroller
- VCC → 3.3V or 5V (power supply)
- GND → Ground
- SDA → I²C Data Pin on microcontroller
- SCL → I²C Clock Pin on microcontroller
- A0 & A1 → Address selection pins for multiple modules
- Alert → Interrupt pin for setting current or voltage threshold alerts
Install Required Libraries
- Use INA226 library in Arduino IDE or Python (for Raspberry Pi) to communicate with the module.
Read Data via I²C
- Obtain bus voltage, shunt voltage, current, and power readings through I²C communication.
Set Alerts for Overcurrent or Overvoltage
- Configure threshold alerts for protection against power surges.
Analyze and Optimize Power Consumption
- Monitor real-time power usage and optimize energy efficiency in circuits.
Package Includes:
1 x INA226 Voltage Current Power Monitoring Module
