PZEM-004T V3.0 AC Digital Multifunction Meter Watt Power Volt Amp With Coil 100A

Reference RBD-1675

Model: PZEM-004T
Operating Voltage: 80-260VAC
Test Voltage: 80-260VAC
Rated Current: 100A
Rated power: 100A / 22000W
Operating frequency: 45-65Hz
Measurement accuracy: 1.0

Description
Product Details

Description

This Peacefair PZEM-004T Multi-function AC Power Monitor is very popular in electrical consumption measurement projects. It is capable of measuring four interrelated electrical variables as voltage, current, power, and energy. RoboticsBD

This tiny PZEM-004T circuit is great for measuring AC (RMS) voltage, current, and power (single-phase). The unit easily interfaces with Arduino and other hardware using the code library. RoboticsBD

Simply power the board with a power supply (or you can use the AC source you are measuring) and connect the circular sensor to the board. Run the wire through the circular sensor and you`re ready to start measuring the voltage, current, and power. The circuit also comes with a TTL to USB adapter wire for easy connection to a computer or microcontroller. RoboticsBD

This module features a TTL serial data communication interface, you can read and set the relevant parameters via the serial port; but if you want to communicate with a device which has USB or RS232 (such as a computer), you need to be equipped with different TTL pinboard (USB communication needs to be equipped with TTL to USB pinboard; RS232 communication needs to be equipped with TTL to RS232 pinboard). Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

The Peacefair PZEM-004T features a built-in button on the panel, used to make the electricity clear function.

Precautions:

This module is suitable for indoor, not outdoor use.
The applied load should not exceed the rated power.
The wiring should not be wrong.

Overview:

We provide the software to connect it with the PC. If you want to connect it with other terminal device such as PLC,SCM and so on, please prepare the fitable cable and write the program by yourself.
This document describes the specification of the PZEM-004T AC communication module, the module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active energy, the module is without display function, the data is read through the TTL interface.

Features :

Electrical parameter measurement function (voltage, current, active power, power).
The power button clear function.
Power-down data storage function (cumulative power down before saving).
PC PC display function (display voltage, current, active power, power).
The serial communication function (comes with TTL serial interface, through various terminals to communicate with the adapter plate, read, and set the parameters).

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model	PZEM-004T
Accuracy	1
Operating Voltage (VDC)	80-260V (AC)
Test Voltage	80-260V (AC)
Max. Operating Current (mA)	100A
Rated Power (W)	100A/22KW
Operating Frequency	45-65Hz
Length (mm)	110
Width (mm)	70
Height (mm)	35
Weight (gm)	70
Shipment Weight	0.075 kg
Shipment Dimensions	10 × 4 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Communication protocol

Physical layer protocol
Application layer protocol

Documentation:

Package Includes:

1 x PZEM-004T TTL Modbus-RTU Power Voltmeter Ammeter

1 x Open CT 100A

1 x USB Cable.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details

Reference RBD-1675

In stock 8 Items

Specific References

EAN13: 1675

Comments (0)

Grade

No customer reviews for the moment.

16 other products in the same category:

Reference: RBD-2657

PIR Infrared Motion Sensor Auto Electric Switch

(0)

Compact PIR infrared motion sensor for automated lighting control Detects human body temperature within 4–6m range, 120° sensing angle Built-in 45-second delay for energy-saving operation Wide AC input range (AC85–265V) with 3W–40W load support Compatible with LED ceiling, panel, downlights, energy-saving and bulb lamps Ideal for corridors, garages,...

BDT 350

BDT 350 tax incl.

BDT 350 tax excl.

BDT 350 tax incl.

BDT 0 Tax

BDT 350 tax excl.

BDT 0 Tax

BDT 350 tax incl.

In-Stock

In stock: 8

Reference: RBD-2779

XKC-Y25 24V NPN Intelligent Non-Contact Liquid Water Level Sensor with 1m Wire

(0)

XKC-Y25 non-contact water level sensor with NPN output Operates on 24V DC with low 5mA power consumption IP67 waterproof ABS housing for durability in harsh environments Detects liquid levels without drilling non-metallic containers Works with toxic, acidic, alkaline, or high-pressure liquids Strong anti-interference, stable, and highly sensitive design

BDT 1,190

BDT 1,190 tax incl.

BDT 1,190 tax excl.

BDT 1,190 tax incl.

BDT 0 Tax

BDT 1,190 tax excl.

BDT 0 Tax

BDT 1,190 tax incl.

In-Stock

In stock: 5

Hi-Link HLK-LD6001C 60GHz Millimeter Wave Radar Passenger Flow Statistics Sensor Module Combo Robotics Bangladesh

Reference: RBD-3219

Brand: Hi-Link

Hi-Link HLK-LD6001C 60GHz Millimeter Wave Radar Passenger Flow Statistics Sensor Module Combo

(0)

Hi-Link HLK-LD6001C Combo – 60GHz millimeter-wave radar for precise people counting. Utilizes FMCW radar technology for accurate entrance and exit flow detection. Non-visual and privacy-friendly operation ideal for sensitive environments. Detection range: 0.5–8m with ±60° coverage for wide-area monitoring. Low power consumption (0.3W average) and...

BDT 9,350

BDT 9,350 tax incl.

BDT 9,350 tax excl.

BDT 9,350 tax incl.

BDT 0 Tax

BDT 9,350 tax excl.

BDT 0 Tax

BDT 9,350 tax incl.

Last items in stock

In stock: 1

Hi-Link HLK-LD6001C 60GHz Millimeter Wave Radar Passenger Flow Statistics Sensor Module Robotics Bangladesh

Reference: RBD-3218

Brand: Hi-Link

Hi-Link HLK-LD6001C 60GHz Millimeter Wave Radar Passenger Flow Statistics Sensor Module

(0)

Advanced 60GHz millimeter-wave radar sensor for people counting and motion detection. Utilizes FMCW radar technology for accurate, real-time entrance/exit tracking. Non-visual sensing ensures complete privacy and works in all lighting conditions. Detection range: 0.5–8 meters with ±60° coverage angle. Low power consumption (0.3W average) with ultra-fast...

BDT 8,950

BDT 8,950 tax incl.

BDT 8,950 tax excl.

BDT 8,950 tax incl.

BDT 0 Tax

BDT 8,950 tax excl.

BDT 0 Tax

BDT 8,950 tax incl.

In-Stock

In stock: 8

HLK-LD2410C 24GHz mmWave 5M Human Presence Radar Sensor Motion Module Robotics Bangladesh

Reference: RBD-2351

Brand: Hi-Link

HLK-LD2410C 24GHz mmWave 5M Human Presence Radar Sensor Motion Module

(0)

HLK-LD2410C 24GHz mmWave Radar Sensor for high-precision human presence detection. Detects motion, micro-motion, and stationary states up to 5 meters. Configurable detection range and sensitivity via Bluetooth or UART. Compact design with easy plug-and-play installation. Ideal for smart home, security, and automation applications.

BDT 730

BDT 730 tax incl.

BDT 730 tax excl.

BDT 730 tax incl.

BDT 0 Tax

BDT 730 tax excl.

BDT 0 Tax

BDT 730 tax incl.

In-Stock

In stock: 27

Circular Force Sensor with Extended Leads Diameter: 18.3mm, 20g-6kg, Thickness: 0.

Reference: RBD-3667

Brand: DFRobot

Circular Force Sensor with Extended Leads Diameter: 18.3mm, 20g-6kg, Thickness: 0.4mm

(0)

Circular thin film sensor, 18.3mm, detects static and dynamic pressure quickly. Used in devices like switches and medical systems. Easy to use, durableModel: RP-C18.3-LT Thin Film Pressure Sensor

BDT 1,390

BDT 1,390 tax incl.

BDT 1,390 tax excl.

BDT 1,390 tax incl.

BDT 0 Tax

BDT 1,390 tax excl.

BDT 0 Tax

BDT 1,390 tax incl.

In stock

In stock: 10

Reference: RBD-1640

12V Gas Detector Sensor Alarm Propane Butane LPG Natural

(0)

Color: White Material: Metal + Plastic Operating Voltage : 12V DC Standby Current : ≤90mA Alarm Current : ≤100mA

BDT 1,450

BDT 1,450 tax incl.

BDT 1,450 tax excl.

BDT 1,450 tax incl.

BDT 0 Tax

BDT 1,450 tax excl.

BDT 0 Tax

BDT 1,450 tax incl.

Last items in stock

In stock: 3

Reference: RBD-3788

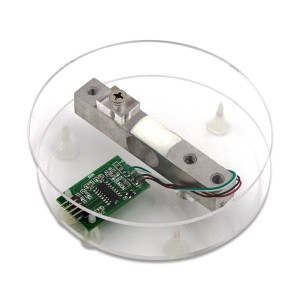

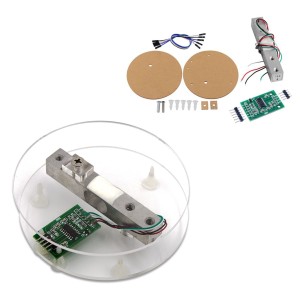

Digital Scale Weighting Kit with Load Cell and HX711 Amplifier

(0)

The Digital Scale Weighting Kit is a complete DIY solution for building your own digital weighing scale. The kit includes a high-precision load cell and an HX711 amplifier module, providing accurate and stable weight measurements. Designed for hobbyists, students, and engineers, this kit is an excellent choice for projects that require reliable weight...

BDT 650

BDT 650 tax incl.

BDT 650 tax excl.

BDT 650 tax incl.

BDT 0 Tax

BDT 650 tax excl.

BDT 0 Tax

BDT 650 tax incl.

Last items in stock

In stock: 2

Reference: RBD-0813

Liquid Suspended Particles Turbidity Sensor Detection Module Kit

(0)

Operating Voltage: 5VDC. Current: 30mA (MAX). Operating temperature: -30 ° C to 80 ° C. Compatible with Arduino, Raspberry Pi, AVR, PIC, etc. Measuring Range: 0 ~ 1000 NTU.

BDT 820

BDT 820 tax incl.

BDT 820 tax excl.

BDT 820 tax incl.

BDT 0 Tax

BDT 820 tax excl.

BDT 0 Tax

BDT 820 tax incl.

In-Stock

In stock: 45

Reference: RBD-2991

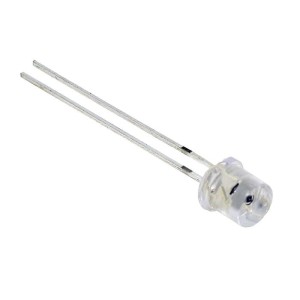

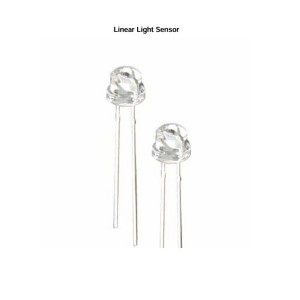

Light Sensor LS06-S Photo Transistor
