DS211 Mini Pocket Portable Oscilloscope

Reference RBD-2233

Absolutely Open Hardware
Rising/falling edge trigger
Compact rectangular housing
Large display screen
Buttons on the side
Mini pocket-sized
Compact and lightweight
Store file as BMP, DAT, BUF, or CSV format
Use built-in flash disk to save/read waveform image
Math waveforms: DATA, -DATA, Inp+D, Inp-D, -Inp
Output test signal: 10Hz—1MHz (1-2-5 sequence step)
Synchronous mode: auto, normal, single, none, scan

Description
Product Details

Description

The DSO series oscilloscope is an Open Hardware pocket-size compatible 32bit digital storage oscilloscope, it based on ARM -M3, equipped with 320 x 240 colour display, SD card, USB port and recharging function. It’s compact, simple to operate; meets the basic demands of school lab, electric furniture repairment and electric engineering. As all the hardware/firmware are open for hackers, It can be also a good STM32 platform for hackers DIY Projects.

Main Highlights:

Portable:

The slim and compact design can fit perfectly inside your pocket, without losing any of the integral features found in a full-sized oscilloscope!

Powerful:

System stores files in BMP, DAT, BUF, or CSV format. Uses a built-in flash disk to save/read waveform images. Math waveforms are as follows: DATA, -DATA, Inp+D, Inp-D, -Inp. Output test signal: 10Hz—1MHz (1-2-5 sequence step). Can be used in a wide range of environments including academic, electronic maintenance, electronic engineering, etc.

LCD Screen:

The 2.8inch full-colour TFT LCD screen provides a rich display for its smaller size.

Rechargeable:

A built-in 500mAH rechargeable lithium battery provides power for your oscilloscope use, rechargeable through a mini USB port.

Large Storage:

Comes with a built-in 8MB storage for saving waveform data and images!. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Lightweight digital storage oscilloscope
Coupling: DC/AC
Max sampling rate: 1 MSa/s
Analog broadband: 200kHz
Max sampling memory depth: 8K
Analog input impedance: 1MΩ
Max input voltage: ±40Vpp(x1 probe)
Vertical sensitivity: 10mv/Div~10V/Div (1-2-5 sequence step)
Horizontal sensitivity: 1uS/Div~10S/Div (1-2-5 sequence step)
2.8″color TFT LCD display (320×240 pixels)
Recharging through mini USB port
Internal 500mAh lithium battery
Weight: 65g

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Outdoor maintenance (AC / DC switching power supply or inverter, elevator and building fire-fighting equipment, industrial control circuit, etc…)
Hardware maintenance or software debugging of RS232, RS485, I2C, CAN and other communications interface circuits, LED display and keyboard scan driver circuit, the brushless motor drive circuit
Analyze audio devices and circuits, electronic toys and remote control models, automotive electronics circuits
Academic use provided practice for student development of small electronic production
Observe signal changes in certain circuits (such as relay and switch contacts jitter, battery charge and discharge curve, the load transient response power supply, temperature sensor characteristic measurement, etc…)
Power supply related electronic circuits (SCR voltage regulation, power factor correction, electronic energy-saving lamps, sodium lamps, dysprosium lamp mercury xenon lamps lamp drive circuit, etc…)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model	DS211
MCU	STM32F103VC
ADC	MCU internal ADC
Number of Channel	1 Analog + 1 internal
Analog Bandwith	200KHz
Maximum Sampling Rate	1MSa/s
Maximum Memory Depth	8K
Horizontal Scanning Speed	1uS/Div~2S/Div(1-2-5 Sequence Step)
Vertical Sensitivity	20mv/Div~10V/Div(1-2-5 Sequence Step)
Input Resistance	1MΩ
Coupling	DC/AC
Trigger Mode	Ascend/Descend Edge Trigger Mode
Auto Adjustment Mode	Auto Fit
Operation	-A, RecA, A+RecA
Signal Output Wavesforms	Square, Sine, Triangle, and Sawtooth
Storage	8 MB Built U Disk
APP can be loaded Quantity	1
USB Interface	Micro USB
Battery	550 mAh
Screen Size	2.8"
Screen Resolution	320 x 240
Dimensions(LxWxH)mm	107 x 56 x 12
Weight	65g
Color	Black-White
Shipment Weight	0.175 kg
Shipment Dimensions	10 × 8 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x DS211 Mini Pocket Portable Oscilloscope

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details

Reference RBD-2233

In stock 3 Items

Specific References

EAN13: 2233

Comments (0)

Grade

No customer reviews for the moment.

16 other products in the same category:

Reference: RBD-2418

Portable Diamond Tester II V2 Selector Gemstone Jewelry Gems Tool with Case

(0)

Professional diamond tester Fast and safe Intuitive design Simple to use

BDT 1,890

BDT 1,890 tax incl.

BDT 1,890 tax excl.

BDT 1,890 tax incl.

BDT 0 Tax

BDT 1,890 tax excl.

BDT 0 Tax

BDT 1,890 tax incl.

In-Stock

In stock: 4

Reference: RBD-1221

STC-3018 220V 10A Digital Temperature Controller 24V

(0)

Display Type:Digital Operating Voltage: AC110-220V Temperature sensor: NTC 10K Senor length:1.0m Temperature measuring range: -55 ° C ~ 120 ° C Resolution: 0.1 ° C Accuracy:±1° C

BDT 1,700

BDT 1,700 tax incl.

BDT 1,700 tax excl.

BDT 1,700 tax incl.

BDT 0 Tax

BDT 1,700 tax excl.

BDT 0 Tax

BDT 1,700 tax incl.

In-Stock

In stock: 16

Reference: RBD-1154

USB Digital Microscope 1000X

(0)

Specification: Magnification: 1000X Light source: 8 LED lights Resolution: 1920×1080, 640*480 Pixel: 30W Focal length: 3-40mm manual adjustment Support Android 4.2 or above/widows/Mac system

BDT 2,990

BDT 2,990 tax incl.

BDT 2,990 tax excl.

BDT 2,990 tax incl.

BDT 0 Tax

BDT 2,990 tax excl.

BDT 0 Tax

BDT 2,990 tax incl.

In-Stock

In stock: 7

UNI-T UT61B+ True RMS Digital Multimeter Robotics Bangladesh

Reference: RBD-3703

Brand: UNI-T

UNI-T UT61B+ True RMS Digital Multimeter

(0)

The UNI-T UT61B+ True RMS Digital Multimeter is a professional-grade measuring instrument designed for high-accuracy electrical testing in industrial, commercial, and educational applications. With a measurement capacity of up to 1000V AC/DC, 10A current, and advanced features like True RMS, USB communication, and audible/visual alarms, this multimeter...

BDT 7,500

BDT 7,500 tax incl.

BDT 7,500 tax excl.

BDT 7,500 tax incl.

BDT 0 Tax

BDT 7,500 tax excl.

BDT 0 Tax

BDT 7,500 tax incl.

In stock

In stock: 10

Sold-out

Reference: RBD-0720

AMG8833 IR Infrared Thermal Camera Breakout (Adafruit Compatible)

(0)

Temperature detection of the two-dimensional area: 8 × 8 (64 pixels). Digital output (capability of temperature value output). Compact SMD package (adaptively to reflow mounting). RoHS compliant. RoboticsBD

BDT 8,550

BDT 8,550 tax incl.

BDT 8,550 tax excl.

BDT 8,550 tax incl.

BDT 0 Tax

BDT 8,550 tax excl.

BDT 0 Tax

BDT 8,550 tax incl.

Sold-out

In stock: 0

UTG1022X 20MHz 2Ch Essential-Series Arbitrary Waveform Generator Robotics Bangladesh

Reference: RBD-3541

Brand: UNI-T

UTG1022X 20MHz 2Ch Essential-Series Arbitrary Waveform Generator

(0)

The UNI-Trend UTG1022X Essential-Series arbitrary waveform generator is an affordable and stable 20MHz source for your test bench.20MHzMax. Output Frequency 2ChChannels 200MSa/sSample Rate 4kptsMax. Memory Depth 16 BitsVertical Resolution 200Built In Arbs

BDT 36,350

BDT 36,350 tax incl.

BDT 36,350 tax excl.

BDT 36,350 tax incl.

BDT 0 Tax

BDT 36,350 tax excl.

BDT 0 Tax

BDT 36,350 tax incl.

Last items in stock

In stock: 2

Oscilloscope UNI-T UTD2102CEX Robotics Bangladesh

Reference: RBD-1554

Brand: UNI-T

Oscilloscope UNI-T UTD2102CEX+

(0)

Model Name/Number: UTD2012CEX+ Brand: Uni-T Bandwidth: 100MHz Usage/Application: Industrial Channels: Dual Usage: Industrial

BDT 33,999

BDT 33,999 tax incl.

BDT 33,999 tax excl.

BDT 33,999 tax incl.

BDT 0 Tax

BDT 33,999 tax excl.

BDT 0 Tax

BDT 33,999 tax incl.

Last items in stock

In stock: 2

UNI-T A12T Temperature Humidity Meter Robotics Bangladesh

Reference: RBD-0706

Brand: UNI-T

UNI-T A12T Temperature Humidity Meter

(0)

Dual temperature measurement. RoboticsBD Clock function: 12/24 hour modes Alarm clock: Rings up to 60s Comfort level: comfortable, wet, dry

BDT 1,550

BDT 1,550 tax incl.

BDT 1,550 tax excl.

BDT 1,550 tax incl.

BDT 0 Tax

BDT 1,550 tax excl.

BDT 0 Tax

BDT 1,550 tax incl.

Last items in stock

In stock: 2

Reference: RBD-1869

DSO138 2.4" TFT Pocket-size Digital Oscilloscope Kit DIY Parts Handheld

(0)

This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen. Adjustable vertical displacement, and with instructions. With automatic, regular and one-shot modes, easy to capture the moment waveform. Available rising or falling edge trigger. Observable previous trigger waveform (negative delay). Can freeze at any...

BDT 2,990

BDT 2,990 tax incl.

BDT 2,990 tax excl.

BDT 2,990 tax incl.

BDT 0 Tax

BDT 2,990 tax excl.

BDT 0 Tax

BDT 2,990 tax incl.

In-Stock

In stock: 13

Reference: RBD-1824

Non-contact Induction Test Pencil AC110V 220V Voltmeter Voltage Probe Indicator

(0)

Material: ABS Color: Yellow + Black Power: 2 x AAA Battery (NOT INCLUDED) Very Lightweight LED Light at tip for Dark sites

BDT 330

BDT 330 tax incl.

BDT 330 tax excl.

BDT 330 tax incl.

BDT 0 Tax

BDT 330 tax excl.

BDT 0 Tax

BDT 330 tax incl.

In-Stock

In stock: 29

Reference: RBD-3129

WeAct USB Logic Analyzer DLA Mini 24MHz 8-Channel Debug Tool

(0)

Compact 8-channel logic analyzer with a sampling rate up to 24MHz Ideal for debugging MCUs, FPGAs, and digital circuits Supports 0–5.5V logic levels for versatile system compatibility Works with open-source sigrok-PulseView for protocol decoding and analysis USB 2.0 high-speed interface for fast and reliable data transfer Compatible with Windows, Linux,...

BDT 1,550

BDT 1,550 tax incl.

BDT 1,550 tax excl.

BDT 1,550 tax incl.

BDT 0 Tax

BDT 1,550 tax excl.

BDT 0 Tax

BDT 1,550 tax incl.

In-Stock

In stock: 5

- BDT 30 Reduced price

Reference: RBD-0396

Ultrasonic Transducer Waterproof Distance Measuring Sensor Module

(0)

Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions Small size, easy to use Operating Voltage: 5 V Sonar Sensing Range: 25-450 cm Max. Sensing Range: 450 cm Frequency: 40 KHz. RoboticsBD

BDT 585 BDT 615

BDT 615 BDT 585 tax incl.

BDT 615 BDT 585 tax excl.

BDT 615 BDT 585 tax incl.

BDT 0 BDT 0 Tax

BDT 615 BDT 585 tax excl.

BDT 0 BDT 0 Tax

BDT 615 BDT 585 tax incl.

In-Stock

In stock: 38

Reference: RBD-1222

Temperature Gun Thermometer Laser

(0)

DT8380FC Infrared Thermometer Item no.: DT8380FC Temperature Range: -50~380°C/-58~716°F Measuring Accuracy: ±2% or 2C Distance Ratio: 12:1 Product description: DT8380FC Infrared Thermometer

BDT 3,499

BDT 3,499 tax incl.

BDT 3,499 tax excl.

BDT 3,499 tax incl.

BDT 0 Tax

BDT 3,499 tax excl.

BDT 0 Tax

BDT 3,499 tax incl.

In-Stock

In stock: 7

Sold-out

Reference: RBD-1725

150W LDM Digital Electronic Load Discharge Capacity Tester USB Voltmeter Ammeter

(0)

Power supply: DC 12V 1A Power range: 0~150.00W Capacity range: 0~999.999Ah Low voltage stop range: 0~150V

BDT 4,590

BDT 4,590 tax incl.

BDT 4,590 tax excl.

BDT 4,590 tax incl.

BDT 0 Tax

BDT 4,590 tax excl.

BDT 0 Tax

BDT 4,590 tax incl.

Sold-out

In stock: 0

Reference: RBD-3650

Adjustable USB Port Load Tester 35W with LCD Display

(0)

The USB Port Adjustable Constant Current Electronic Load – 35W is a versatile and powerful discharge testing tool designed for evaluating USB chargers, power banks, adapters, and DC power supplies. Featuring a real-time LCD monitor, precise current control, and wide interface compatibility, this compact device supports USB-A, USB Type-C, Micro USB, Mini...

BDT 3,950

BDT 3,950 tax incl.

BDT 3,950 tax excl.

BDT 3,950 tax incl.

BDT 0 Tax

BDT 3,950 tax excl.

BDT 0 Tax

BDT 3,950 tax incl.

Last items in stock

In stock: 3

On sale!

Reference: RBD-0280

Breadboard Mini Size Bare 170 Tie Points

(0)

Tie-points: 170 (10×17) Size: 48 x 35 x 10 mm(LxWxH). Use: experimental, testing, robot Matching jumper, diameter 0.8mm Phosphor bronze nickel plated spring clips Accepts a variety of wire sizes (29-20 the AWG) **1 pcs Random Color

BDT 45

BDT 45 tax incl.

BDT 45 tax excl.

BDT 45 tax incl.

BDT 0 Tax

BDT 45 tax excl.

BDT 0 Tax

BDT 45 tax incl.

In-Stock

In stock: 297

Frequently purchased together
Products from the same category

- BDT 100 Reduced price

Reference: RBD-0009

Arduino Mega 2560 R3

(0)

54 Digital I/O terminals (14 of which have programmable PWM outputs). 16 Analog Inputs. 4 UARTs (hardware serial ports). 16 MHz crystal clock. RoboticsBD Operating voltage: 6 ~ 12v. Dimensions: 110 x 53 x 15 mm.

BDT 1,788 BDT 1,888

BDT 1,888 BDT 1,788 tax incl.

BDT 1,888 BDT 1,788 tax excl.

BDT 1,888 BDT 1,788 tax incl.

BDT 0 BDT 0 Tax

BDT 1,888 BDT 1,788 tax excl.

BDT 0 BDT 0 Tax

BDT 1,888 BDT 1,788 tax incl.

In-Stock

In stock: 6

On sale!

Reference: RBD-0680

9 Degrees of Freedom Breakout- MPU9250

(0)

Acceleration, Gyroscope Power Supply: DC3.3V-5V Chip: MPU9250 Size: 22 mm x 17 mm. Gyro range : ± 250 500 1000 2000 ° / s Acceleration range: ± 2 ± 4 ± 8 ± 16g 9 DOF modules. RoboticsBDChinese Variant MP92 QFN24 PackageThe magnetometer is currently inaccessible via I2C and therefore unavailable. ✅ True 9DOF ModulesOriginal MPU9255 9-Axis Motion Tracking...

BDT 605

BDT 605 tax incl.

BDT 605 tax excl.

BDT 605 tax incl.

BDT 0 Tax

BDT 605 tax excl.

BDT 0 Tax

BDT 605 tax incl.

In-Stock

In stock: 47

Reference: RBD-0689

LM75A IIC I2C High Accuracy Digital Temperature Sensor

(0)

Operating Voltage: 2.8 V to 5.5 V Accuracy: ± 1.5°C Zero power resistance: 100 KΩ Operating temperature range: -55 ~ +125 ℃

BDT 180

BDT 180 tax incl.

BDT 180 tax excl.

BDT 180 tax incl.

BDT 0 Tax

BDT 180 tax excl.

BDT 0 Tax

BDT 180 tax incl.

In-Stock

In stock: 20

Reference: RBD-0797

U-Blox NEO-6M GPS Module

(0)

5Hz position update rate. The cold start time of 38 s and Hot start time of 1 s. Configurable from 4800 Baud to 115200 Baud rates. (default 9600). SuperSense ® Indoor GPS: -162 dBm tracking sensitivity. Support SBAS (WAAS, EGNOS, MSAS, GAGAN). Separated 18 x 18mm GPS antenna. RoboticsBD In recent years 2022, due to a shortage of chips, some of the GPS...

BDT 440

BDT 440 tax incl.

BDT 440 tax excl.

BDT 440 tax incl.

BDT 0 Tax

BDT 440 tax excl.

BDT 0 Tax

BDT 440 tax incl.

In-Stock

In stock: 58

Reference: RBD-0829

Metal Servo Horn

(0)

Material: Aluminium M3 Screws Adjustable type servo arm Mounting Hole Spacing: 14mm Servo disc diameter: 20mm 25Tooth Weight: 2 gm

BDT 140

BDT 140 tax incl.

BDT 140 tax excl.

BDT 140 tax incl.

BDT 0 Tax

BDT 140 tax excl.

BDT 0 Tax

BDT 140 tax incl.

In-Stock

In stock: 167

Raspberry Pi Zero 2 W Robotics Bangladesh

Reference: RBD-0872

Brand: Raspberry Pi Official

Raspberry Pi Zero 2 W

(0)

Raspberry Pi Zero 2 W: Your Incredibly Tiny Mini Compute The marvel of compact engineering, packing impressive power into an unbelievably small form factor. Ideal for DIY enthusiasts, hobbyists, and professionals alike, this mini-computer opens up a world of possibilities. Whether you're building smart home devices, creating IoT projects, or exploring...

BDT 4,515

BDT 4,515 tax incl.

BDT 4,515 tax excl.

BDT 4,515 tax incl.

BDT 0 Tax

BDT 4,515 tax excl.

BDT 0 Tax

BDT 4,515 tax incl.

Last items in stock

In stock: 3

Reference: RBD-0931

Lipo Battery 3300mAh 11.1V 3S

(0)

Weight : 190 gm Voltage: 11.1V Capacity: 3300mAh Cell Type: Li-polymer Configurations: 3S Continuous Discharge Rate: 25C Max Burst Rate: 90C Discharge(Output) Lead: T Plug Connector Charging(Balancing) Lead: JST-XHR Wire Length: 100mm Operating Temperature Range: -20℃to 60℃ PVC color: Silver and Black

BDT 3,490

BDT 3,490 tax incl.

BDT 3,490 tax excl.

BDT 3,490 tax incl.

BDT 0 Tax

BDT 3,490 tax excl.

BDT 0 Tax

BDT 3,490 tax incl.

In-Stock

In stock: 5

Reference: RBD-1062

AMG8833 IR Infrared 8*8 Thermal Imager Array Temperature Sensor

(0)

Temperature detection of the two-dimensional area: 8 × 8 (64 pixels). Digital output (capability of temperature value output). Compact SMD package (adaptively to reflow mounting). RoHS compliant.

BDT 6,700

BDT 6,700 tax incl.

BDT 6,700 tax excl.

BDT 6,700 tax incl.

BDT 0 Tax

BDT 6,700 tax excl.

BDT 0 Tax

BDT 6,700 tax incl.

In-Stock

In stock: 5

DC-5V-35V 5A PWM Motor Speed Controller

(0)

Operating voltage: DC4.5V-35V Output current: 0-5A Output power: 90W (max) PWM duty cycle: 1% -100%. PWM frequency:20khz Wide voltage DC motor speed controller.

BDT 220

BDT 220 tax incl.

BDT 220 tax excl.

BDT 220 tax incl.

BDT 0 Tax

BDT 220 tax excl.

BDT 0 Tax

BDT 220 tax incl.

In-Stock

In stock: 10

- BDT 45 Reduced price

Reference: RBD-1871

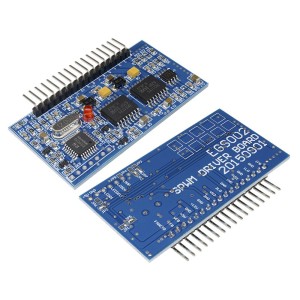

EGS002 SPWM Pure Sine Wave Inverter Module

(0)

5V single power supply. Wave frequency adjustable 0-400Hz adjustable frequency pure sine wave. Unipolar and bipolar modulation mode. External 12MHz crystal oscillator. PWM carrier frequency 23.4KHz. Voltage, current, temperature feedback real-time processing. Overvoltage, Undervoltage, overcurrent, overheating protection function. Pin set soft-start mode...

BDT 795 BDT 840

BDT 840 BDT 795 tax incl.

BDT 840 BDT 795 tax excl.

BDT 840 BDT 795 tax incl.

BDT 0 BDT 0 Tax

BDT 840 BDT 795 tax excl.

BDT 0 BDT 0 Tax

BDT 840 BDT 795 tax incl.

In-Stock

In stock: 9

Reference: RBD-2054

Multifunctional LCD GM328A Transistor Tester Frequency Meter PWM Square Wave Signal Generator

(0)

Multi-functional transistor tester. Automatic detection of NPN and PNP transistors, FET, diodes, dual diode, thyristor and SCR. Automatic identification of the transistor pinout. Can be used as a Square signal generator. Can be used as a PWM signal generator.

BDT 1,980

BDT 1,980 tax incl.

BDT 1,980 tax excl.

BDT 1,980 tax incl.

BDT 0 Tax

BDT 1,980 tax excl.

BDT 0 Tax

BDT 1,980 tax incl.

In stock

In stock: 16

Reference: RBD-1923

PWM to Voltage Converter Module 0-100% to-10V

(0)

Conversion range: 0% -100% PWM to 0-10v voltage PWM signal reception frequency range: 1KHz – 3KHz Operating voltage: 12V – 30V DC Allowable error: 5%

BDT 330

BDT 330 tax incl.

BDT 330 tax excl.

BDT 330 tax incl.

BDT 0 Tax

BDT 330 tax excl.

BDT 0 Tax

BDT 330 tax incl.

In-Stock

In stock: 61

Follow us on Facebook

Facebook

DS211 Mini Pocket Portable Oscilloscope

Portable:

Powerful:

LCD Screen:

Rechargeable:

Large Storage:

Features:

Applications:

Documentation:

Package Includes:

Subscribe To When In Stock

Subscribe To When In Stock

Follow us on Facebook
